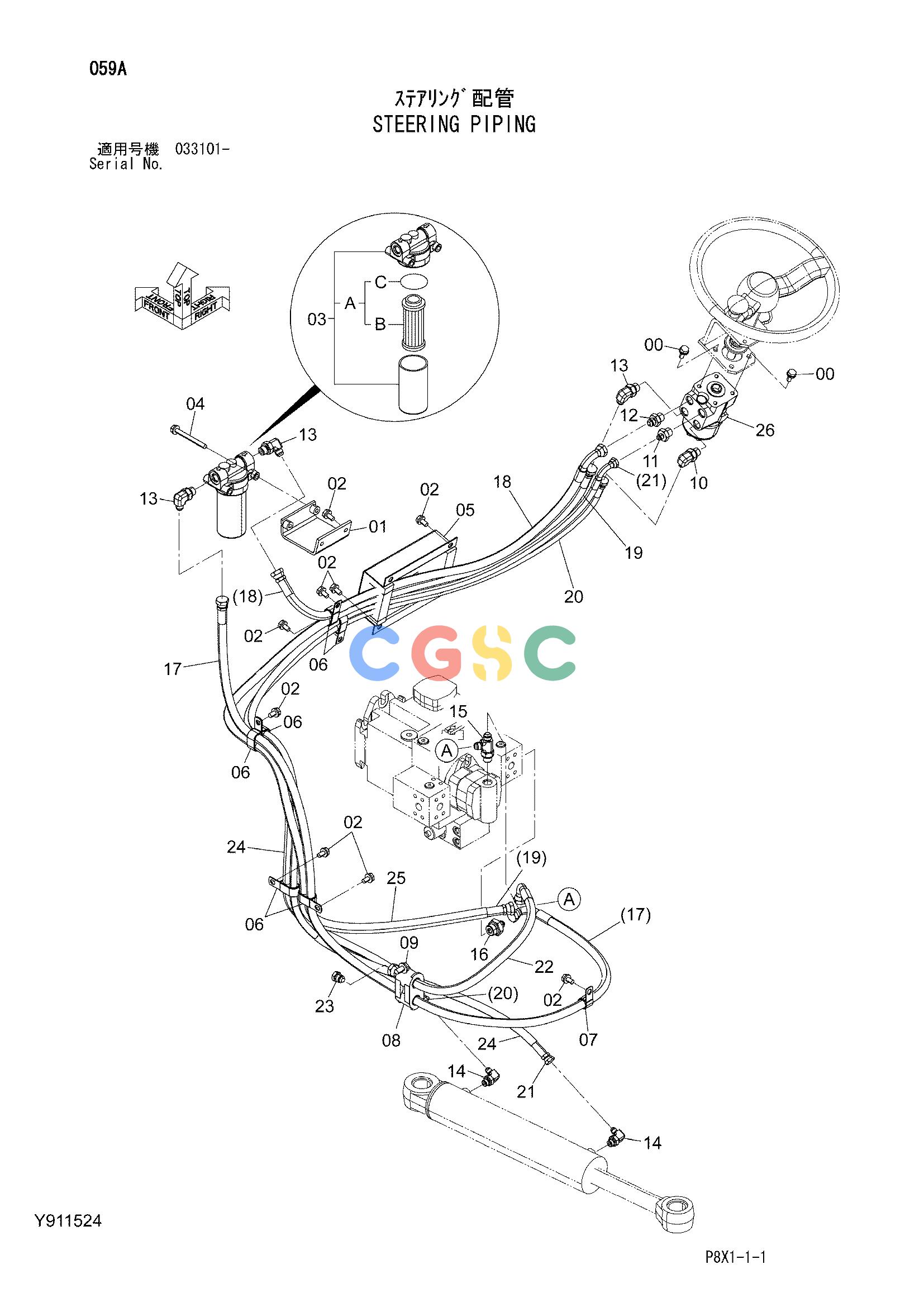

日立零件查询（CS125-3）STEERING PIPING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
799 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | J271025 | [4] | BOLT;SEMS | |
| 00A. | J901025 | [1] | BOLT | |
| 00B. | J222010 | [1] | WASHER | |
| 01. | Y802813 | [1] | BRACKET | |
| 02. | J271020 | [12] | BOLT;SEMS | |
| 02A. | J901020 | [1] | BOLT | |
| 02B. | J222010 | [1] | WASHER | |
| 03. | 4631976 | [1] | FILTER;OIL | |
| 03A. | 4370435 | [1] | ELEMENT;FILTER | |
| 03B. | 4191301 | [1] | ELEMENT;FILTER | |
| 03C. | A811060 | [1] | O-RING | |
| 04. | J271000 | [2] | BOLT;SEMS | |
| 04A. | J901000 | [1] | BOLT | |
| 04B. | J222010 | [1] | WASHER | |
| 05. | Y800884 | [1] | COVER | |
| 06. | 4190266 | [6] | CLIP | |
| 07. | 4190277 | [1] | CLIP | |
| 08. | 3038206 | [1] | BUSHING | |
| 09. | J271225 | [1] | BOLT;SEMS | |
| 09A. | J901225 | [1] | BOLT | |
| 09B. | J222012 | [1] | WASHER | |
| 10. | A852343 | [1] | ELBOW;S | |
| 10A. | 4506418 | [1] | O-RING | |
| 11. | A852143 | [1] | ADAPTER;S | |
| 11A. | 4506418 | [1] | O-RING | |
| 12. | A852144 | [1] | ADAPTER;S | |
| 12A. | 4506418 | [1] | O-RING | |
| 13. | A852344 | [3] | ELBOW;S | |
| 13A. | 4506418 | [1] | O-RING | |
| 14. | A852333 | [2] | ELBOW;S | |
| 14A. | 4509180 | [1] | O-RING | |
| 15. | A852444 | [1] | TEE;S | |
| 15A. | 4506418 | [1] | O-RING | |
| 16. | 4279302 | [1] | ADAPTER;S | |
| 16A. | 4506424 | [1] | O-RING | |
| 17. | 4241379 | [1] | HOSE | |
| 18. | 4313428 | [1] | HOSE | |
| 19. | 4305289 | [1] | HOSE | |
| 20. | 4305239 | [1] | HOSE | |
| 21. | Y404915 | [1] | HOSE | |
| 22. | 4463707 | [1] | HOSE | |
| 23. | 4225492 | [1] | PLUG | |
| 24. | 4327293 | [2] | PROTECTOR | |
| 25. | 4327294 | [1] | PROTECTOR | |
| 26. | Y417595 | [1] | VALVE;STEERING | |
