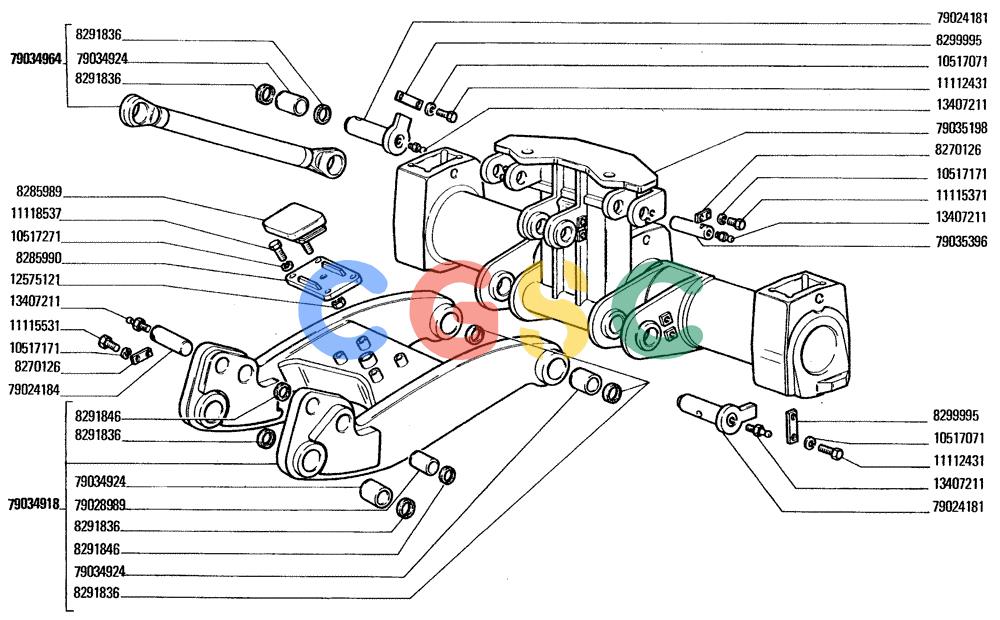

纽荷兰零件查询(FD20) - CRAWLER DOZER (E3.10/3[001]) - RIPPER LIFTING ARMS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
402 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 8270126. | 8270126 | [6] | PLATE | LECPLAQUE Superseded by part number: 76092114 |
| 8285989. | 8285989 | [1] | PAD | LECSMALL BLOCK Superseded by part number: 76092115 |
| 8285990. | 8285990 | [1] | PLATE | LEC Superseded by part number: 76092116 |
| 8291836. | 8291836 | [12] | SEAL | LECO-RING Superseded by part number: 79065583 |
| 8291846. | 8291846 | [4] | SEAL,70mm ID x 85mm OD x 7.5mm Thk | LECO-RING |
| 8299995. | 8299995 | [3] | LOCKING PLATE | LECPLAQUE Superseded by part number: 76092109 |
| 10517071. | 10517071 | [6] | LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk | HFILOCKWASHER Superseded by part number: 10517073 |
| 10517171. | 10517171 | [12] | LOCK WASHER,14.2mm ID x 24.1mm OD x 3.5mm Thk | MKTLOCKWASHER Superseded by part number: 10572074 |
| 10517271. | 10517271 | [4] | LOCK WASHER,16.2mm ID x 27.7mm OD x 4mm Thk | BHBLOCKWASHER Superseded by part number: 10572173 |
| 11112431. | 11112431 | [6] | SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87015736 |
| 11115371. | 11115371 | [4] | SCREW | LEC Superseded by part number: 11115331 |
| 11115531. | 11115531 | [8] | BOLT,Hex, M14 x 30, 10.9, Full Thd | LEC Superseded by part number: 11115534 |
| 11118537. | 11118537 | [4] | SCREW | LEC Superseded by part number: 374835 |
| 12575121. | 12575121 | [1] | NUT,M20 x 1.5, Cl 10 | IMONUT |
| 13407211. | 13407211 | [9] | LUBE NIPPLE,M10 x 1 | TTFNIPPLE, LUBE, M10 x 1 Superseded by part number: 84351730 |
| 79024181. | 79024181 | [3] | PIN | LEC |
| 79024184. | 79024184 | [2] | PIN | LEC |
| 79028989. | 79028989 | [2] | BUSHING | LEC |
| 79034918. | 79034918 | [1] | FRAME | LECCHASSIS |
| 79034924. | 79034924 | [6] | BUSHING | LEC |
| 79034964. | 79034964 | [1] | STRUT | LEC Superseded by part number: 76008047 |
| 79035198. | 79035198 | [1] | ARM | LEC Superseded by part number: 76008052 |
| 79035396. | 79035396 | [2] | PIN | LEC |
