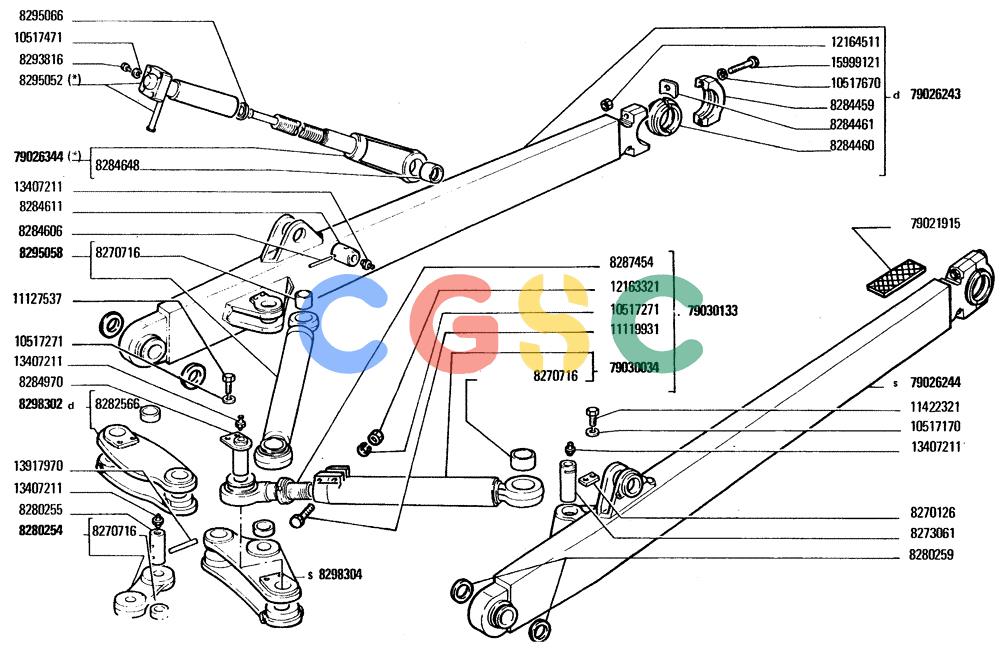

纽荷兰零件查询(FD20) - CRAWLER DOZER (E3.10/4[001]) - DOZER BLADE LIFTING ARMS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
995 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 8270126. | 8270126 | [2] | PLATE | LECPLAQUE Superseded by part number: 76092114 |
| 8270716. | 8270716 | [4] | BUSHING | LEC |
| 8273061. | 8273061 | [2] | PIN,70mm OD x 184mm L | LEC |
| 8280254. | 8280254 | [1] | LINK | LEC |
| 8280255. | 8280255 | [2] | PIN | LEC |
| 8280259. | 8280259 | [4] | WASHER | LECSPACER |
| 8282566. | 8282566 | [4] | BUSHING | LEC |
| 8284459. | 8284459 | [2] | SUPPORT | LEC Superseded by part number: 8298325 |
| 8284460. | 8284460 | [4] | HALF-BUSHING | LECGUIDE BUSHING |
| 8284461. | 8284461 | [4] | PLATE | LECPLAQUE |
| 8284606. | 8284606 | [2] | ROLL PIN | LECTAPER PIN |
| 8284611. | 8284611 | [2] | PIN | LEC |
| 8284648. | 8284648 | [1] | BUSHING | LEC |
| 8284970. | 8284970 | [2] | PIN | LEC Superseded by part number: 76015756, 11119037, 76015753, 76015755 |
| 8287454. | 76033401 | [1] | SUPPORT | LECTHREADED TIEROD |
| 8293816. | 8293816 | [1] | SCREW,M20 x 2.5 x 2.5mm | LEC |
| 8295052. | 8295052 | [1] | HOSE | LECTHREADED TIEROD |
| 8295058. | 8295058 | [1] | TIE-ROD | LECTHREADED TIEROD |
| 8295066. | 8295066 | [1] | SEAL | LECWORM SCREW |
| 8298302. | 8298302 | [1] | LEVER | LEC |
| 8298304. | 8298304 | [1] | LEVER | LEC |
| 10517170. | 10517170 | [4] | WASHER,14.2mm ID x 24.1mm OD x 3.5mm Thk | MKTLOCKWASHER Superseded by part number: 10572074 |
| 10517271. | 10517271 | [6] | LOCK WASHER,16.2mm ID x 27.7mm OD x 4mm Thk | BHBLOCKWASHER Superseded by part number: 10572173 |
| 10517471. | 10517471 | [1] | WASHER | MKTLOCKWASHER Superseded by part number: |
| 10517670. | 10517670 | [4] | LOCK WASHER | MKTLOCKWASHER Superseded by part number: 10517671 |
| 11119931. | 11119931 | [2] | BOLT,Hex, M16 x 100, 10.9 | LEC Superseded by part number: 86541970 |
| 11422321. | 11422324 | [4] | BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8 | TTFSCREW Superseded by part number: 11422321 |
| 12163321. | 12163321 | [2] | NUT,M16, Cl 10 | IMO Superseded by part number: |
| 12164511. | 12164511 | [4] | NUT,M24 x 2, Cl 8 | MKT Superseded by part number: 12164514 |
| 13407211. | 13407211 | [8] | LUBE NIPPLE,M10 x 1 | TTFNIPPLE, LUBE, M10 x 1 Superseded by part number: 84351730 |
| 13917970. | 13917970 | [2] | ROLL PIN,M10 x 100, Coiled | LECTAPER PIN |
| 15999121. | 15999121 | [4] | SCREW | MKT Superseded by part number: 15999130 |
| 79021915. | 79021915 | [2] | PLATE | LEC Superseded by part number: 70921914 |
| 79026243. | 79026243 | [1] | LIFT ARM | LECARM |
| 79026244. | 79026244 | [1] | LIFT ARM | LECARM |
| 79026344. | 79026344 | [1] | TIE-ROD | LECTHREADED TIEROD |
| 79030034. | 79030034 | [1] | TIE-ROD | LECTHREADED TIEROD |
| 79030133. | 79030133 | [1] | TIE-ROD | LECTHREADED TIEROD |
