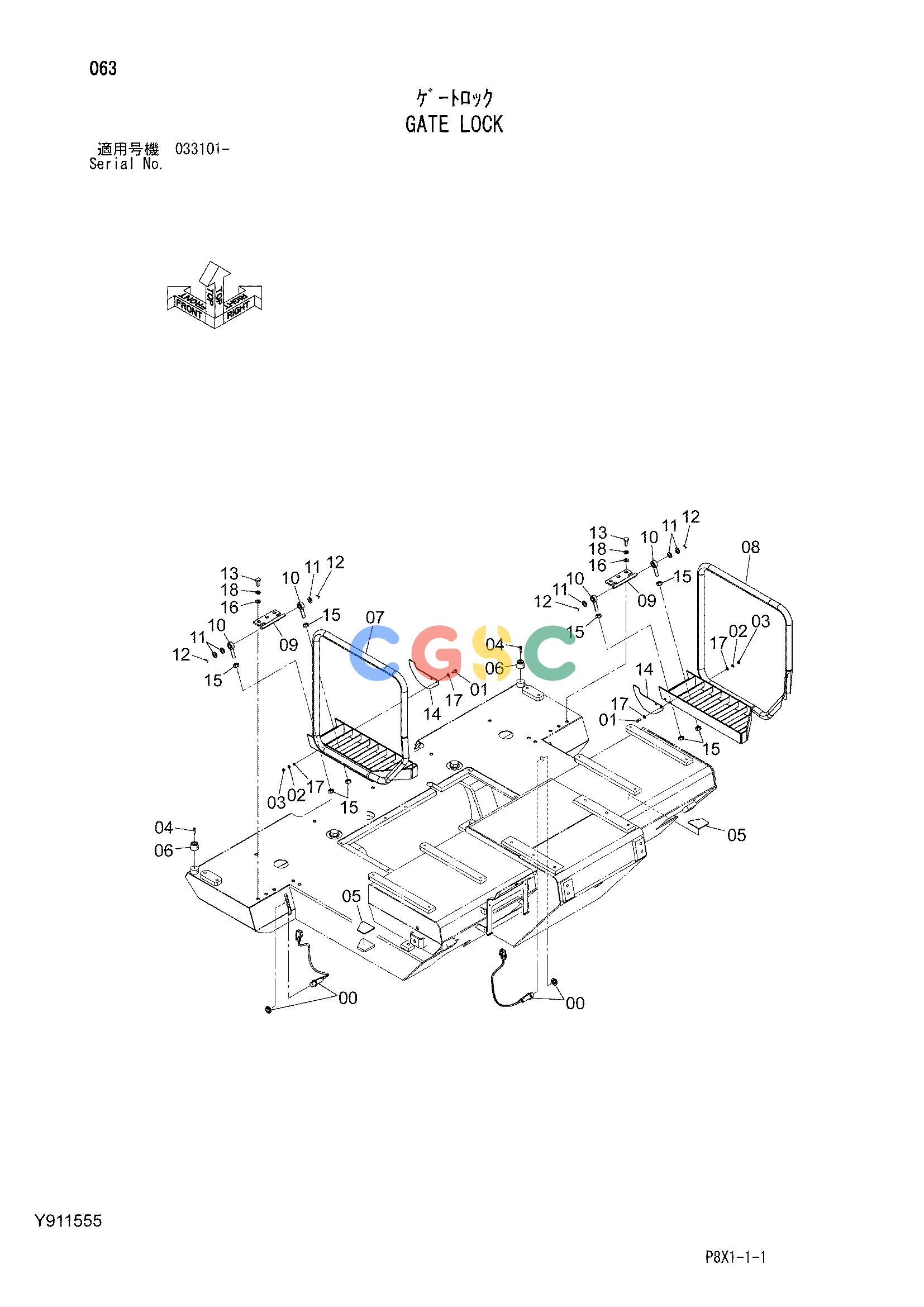

日立零件查询（CS125-3）GATE LOCK Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
423 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y404754 | [2] | SWITCH | |
| 01. | J900616 | [4] | BOLT | |
| 02. | A590906 | [4] | WASHER;SPRING | |
| 03. | M500605 | [4] | NUT | |
| 04. | J450525 | [2] | SCREW;SEMS | |
| 05. | Y404758 | [2] | RUBBER | |
| 06. | Y409163 | [2] | RUBBER;CUSHION | |
| 07. | Y802093 | [1] | GATE | |
| 08. | Y802094 | [1] | GATE | |
| 09. | Y971379 | [2] | GUIDE | |
| 10. | Y411890 | [4] | END;ROD | |
| 11. | A590112 | [6] | WASHER;PLANE | |
| 12. | A762020 | [4] | PIN;SPLIT | |
| 13. | J901025 | [6] | BOLT | |
| 14. | Y417902 | [2] | PLATE | |
| 15. | J950012 | [8] | NUT | |
| 16. | A590110 | [6] | WASHER;PLANE | |
| 17. | A590106 | [8] | WASHER;PLANE | |
| 18. | A590910 | [6] | WASHER;SPRING | |
