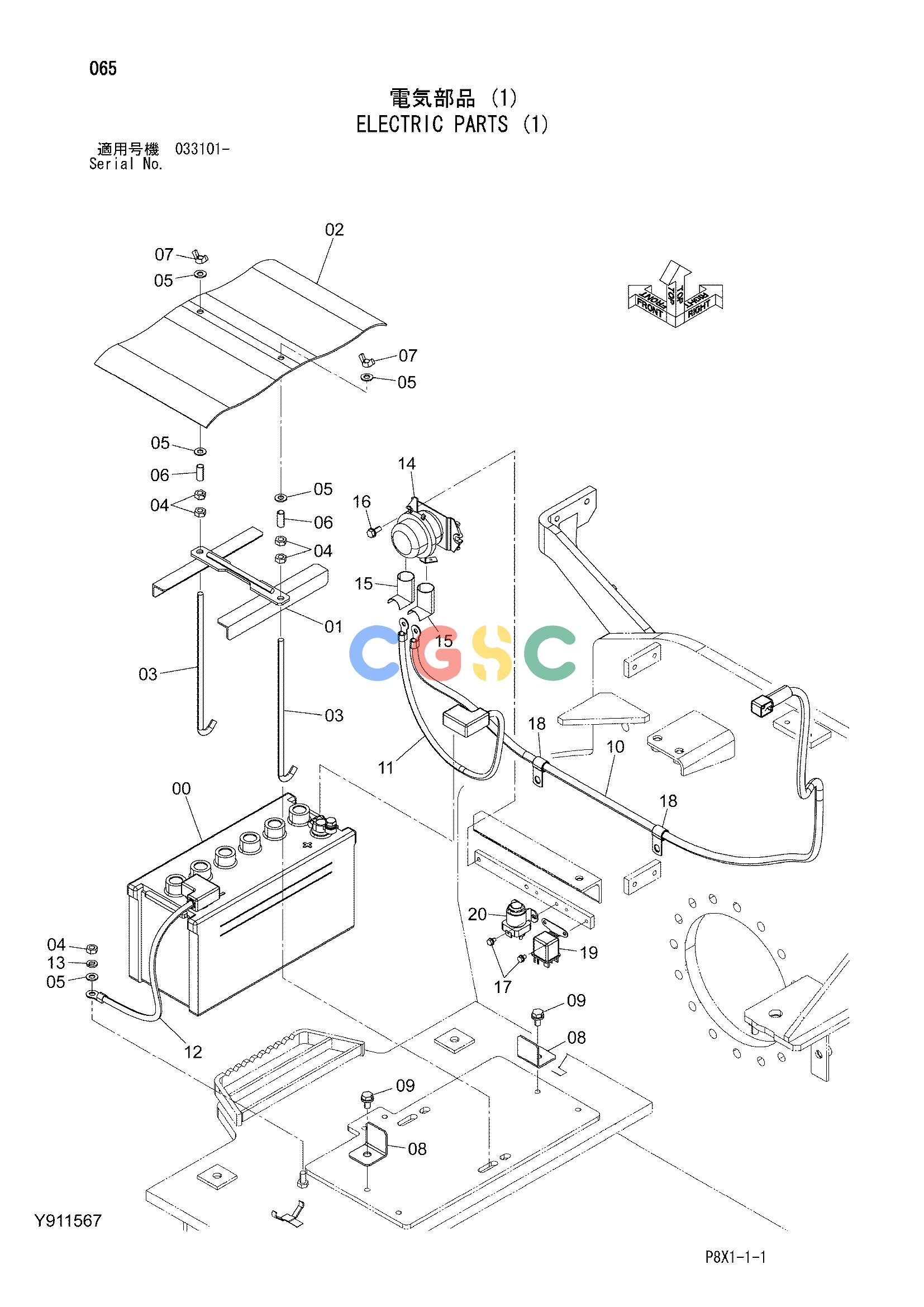

日立零件查询（CS125-3）ELECTRIC PARTS (1) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
506 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4628452 | [1] | BATTERY | |
| 01. | 8100266 | [1] | BRACKET | |
| 02. | Y417716 | [1] | RUBBER | |
| 03. | 4430289 | [2] | BOLT;HOOK | |
| 04. | J950010 | [5] | NUT | |
| 05. | A590110 | [5] | WASHER;PLANE | |
| 06. | 4627469 | [2] | SPACER | |
| 07. | M570010 | [2] | NUT;WING | |
| 08. | 4634964 | [2] | BRACKET | |
| 09. | J271020 | [2] | BOLT;SEMS | |
| 09A. | J901020 | [1] | BOLT | |
| 09B. | J222010 | [1] | WASHER | |
| 10. | Y417773 | [1] | HARNESS;WIRE | |
| 11. | Y417774 | [1] | HARNESS;WIRE | |
| 12. | Y417775 | [1] | HARNESS;WIRE | |
| 13. | A590910 | [1] | WASHER;SPRING | |
| 14. | 4249775 | [1] | RELAY;BATTERY | |
| 15. | Y405122 | [2] | TUBE;CORRUGATED | |
| 16. | J260820 | [2] | BOLT;SEMS | |
| 16A. | J900820 | [1] | BOLT | |
| 16B. | A590108 | [1] | WASHER;PLANE | |
| 17. | J260610 | [4] | BOLT;SEMS | |
| 17A. | J900610 | [1] | BOLT | |
| 17B. | A590106 | [1] | WASHER;PLANE | |
| 18. | 4190275 | [2] | CLIP | |
| 19. | Y417704 | [1] | RELAY | |
| 20. | Y417706 | [1] | RELAY | |
