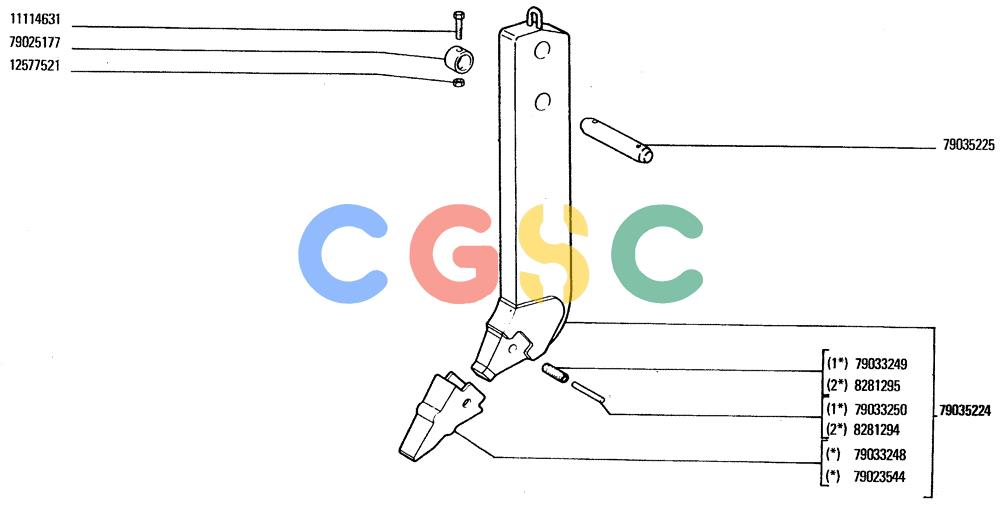

纽荷兰零件查询(FD20) - CRAWLER DOZER (E3.15/1[001]) - RIPPER TEETH New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
386 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 8281294. | 8281294 | [3] | ROLL PIN | LECTAPER PIN Superseded by part number: 79057837 |
| 8281295. | 8281295 | [3] | SLEEVE | LEC Superseded by part number: 79057838 |
| 11114631. | 11114631 | [6] | BOLT,Hex, M12 x 120, 10.9 | BHBSCREW Superseded by part number: 86639151 |
| 12577521. | 12577521 | [6] | NUT,M12 x 1.75 | LECNUT, LOCK, M12 x 1.75 |
| 79023544. | 79023544 | [3] | POINT | LECLUG Superseded by part number: 77903314 |
| 79025177. | 79025177 | [6] | RING | LEC |
| 79033248. | 79033248 | [3] | POINT RIPPER SHANK | LECLUG Superseded by part number: 79074927 |
| 79033249. | 79033249 | [3] | SLEEVE | LEC Superseded by part number: 79057838 |
| 79033250. | 79033250 | [3] | PIN | LECTAPER PIN Superseded by part number: 79057837 |
| 79035224. | 79035224 | [3] | RIPPER TOOTH | LECLUG Superseded by part number: 79057873 |
| 79035225. | 79035225 | [3] | PIN | LEC |
