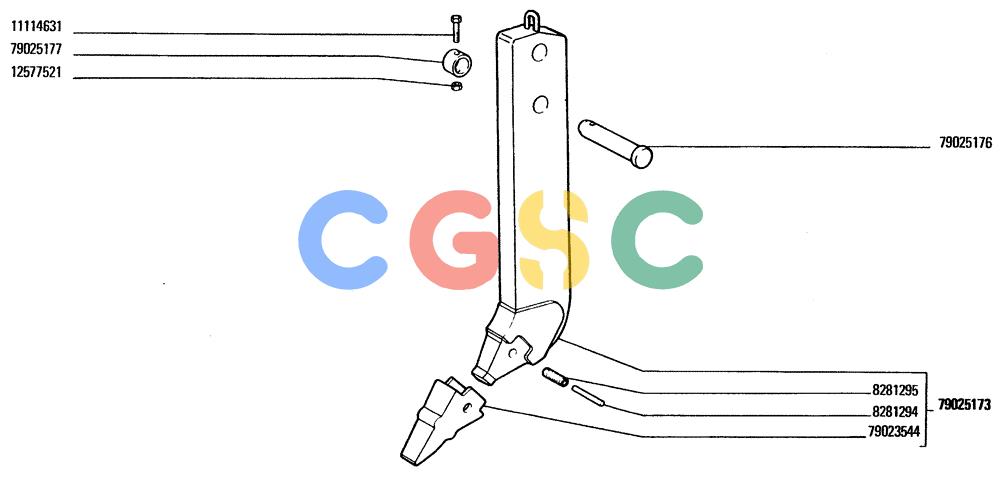

纽荷兰零件查询(FD20) - CRAWLER DOZER (E3.15[001]) - RIPPER TEETH New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
340 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 8281294. | 8281294 | [3] | ROLL PIN | LECPIN Superseded by part number: 79057837 |
| 8281295. | 8281295 | [3] | SLEEVE | LEC Superseded by part number: 79057838 |
| 11114631. | 11114631 | [3] | BOLT,Hex, M12 x 120, 10.9 | BHBSCREW Superseded by part number: 86639151 |
| 12577521. | 12577521 | [3] | NUT,M12 x 1.75 | LECNUT, LOCK, M12 x 1.75 |
| 79023544. | 79023544 | [3] | POINT | LECLUG Superseded by part number: 77903314 |
| 79025173. | 79025173 | [3] | RIPPER TOOTH | LECLUG Superseded by part number: 79035224 |
| 79025176. | 79025176 | [3] | PIN | LEC Superseded by part number: 79035225 |
| 79025177. | 79025177 | [3] | RING | LEC |
