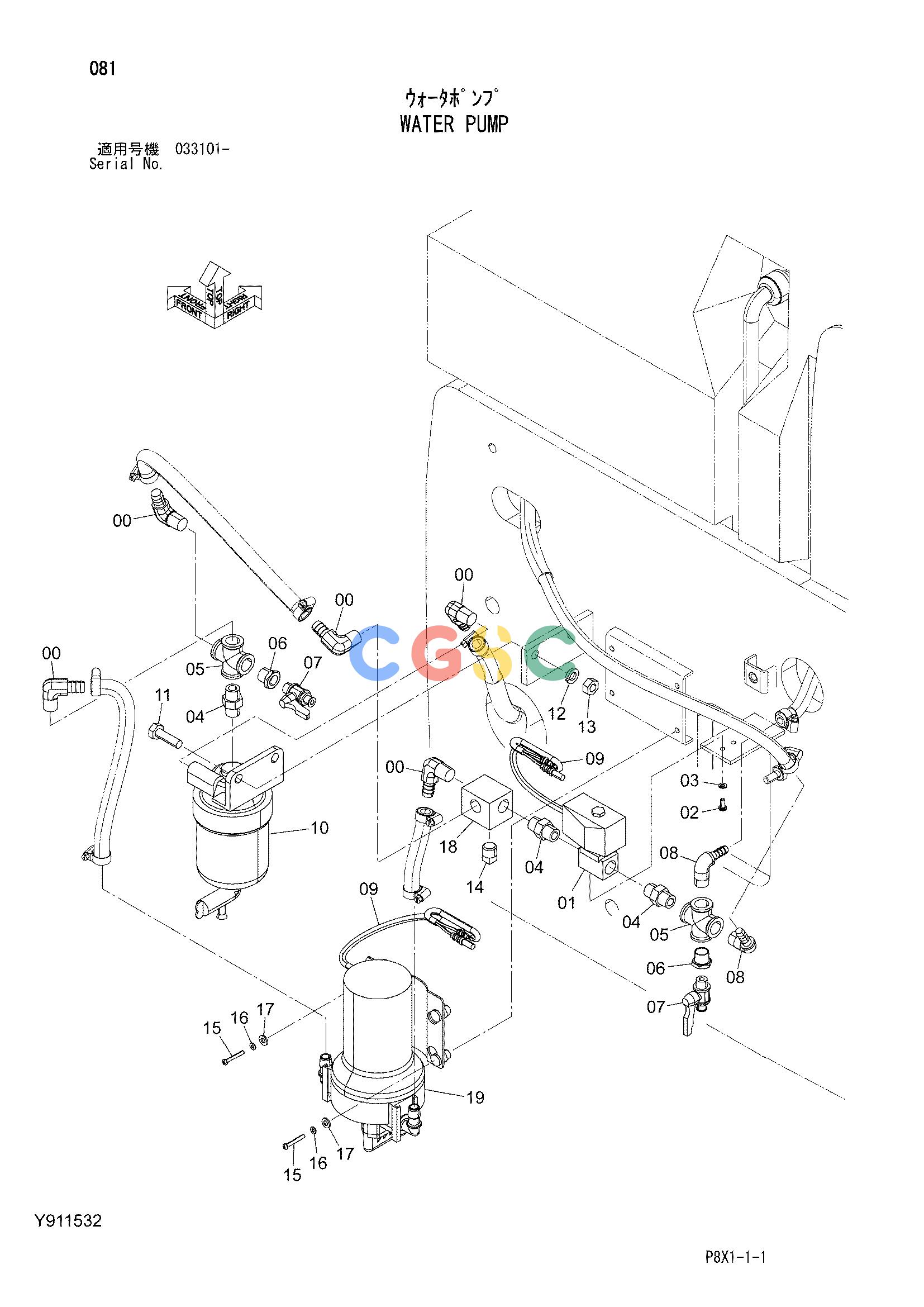

日立零件查询（CS125-3）WATER PUMP Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
569 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y409154 | [5] | FITTING;HOSE | |
| 01. | Y417672 | [1] | VALVE;SOLENOID | |
| 02. | M430513 | [2] | SCREW | |
| 03. | A590905 | [2] | WASHER;SPRING | |
| 04. | J70783 | [3] | ADAPTER | |
| 05. | J70583 | [2] | CROSS | |
| 06. | J728382 | [2] | REDUCER | |
| 07. | Y404982 | [2] | VALVE;BALL | |
| 08. | Y402069 | [2] | FITTING;HOSE | |
| 09. | Y410600 | [2] | TUBE | |
| 10. | Y414239 | [1] | FILTER | |
| 10A. | Y416184 | [1] | ELEMENT;FILTER | |
| 11. | J901035 | [2] | BOLT | |
| 12. | A590910 | [2] | WASHER;SPRING | |
| 13. | J950010 | [2] | NUT | |
| 14. | 94-2023 | [1] | PLUG | |
| 15. | M430430 | [4] | SCREW | |
| 16. | A590104 | [4] | WASHER;PLANE | |
| 17. | A590106 | [4] | WASHER;PLANE | |
| 18. | Y302268 | [1] | MANIFOLD | |
| 19. | Y417596 | [1] | PUMP;DIAPHRAGM | |
