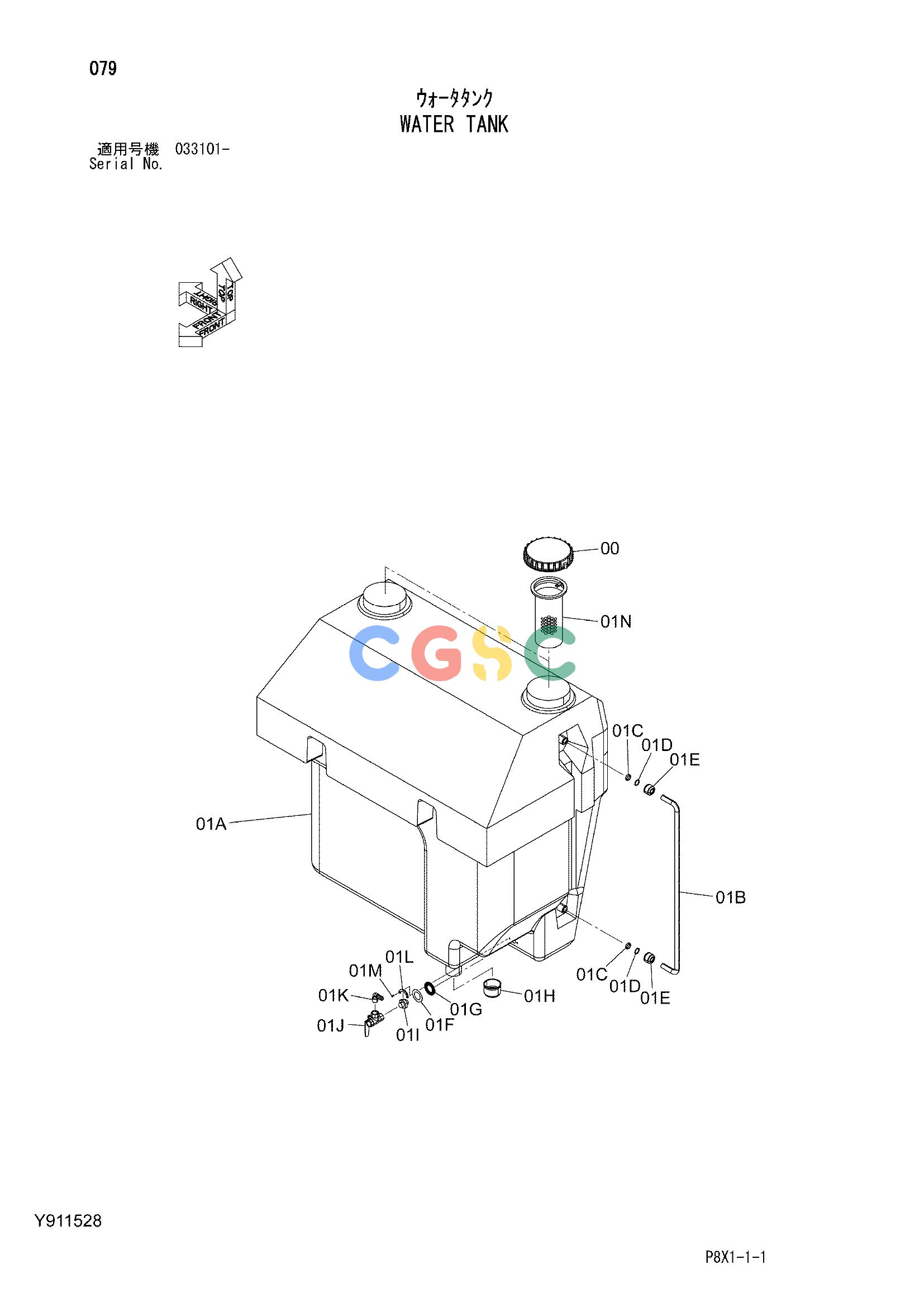

日立零件查询（CS125-3）WATER TANK Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
335 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y404866 | [2] | CAP | |
| 01. | Y414821 | [1] | TANK;WATER | |
| 01A. | Y000002 | [1] | TANK;WATER | |
| 01B. | Y405133 | [1] | PIPE | |
| 01C. | Y405134 | [2] | PACKING | |
| 01D. | Y405135 | [2] | SHIM | |
| 01E. | Y405136 | [2] | CAP | |
| 01F. | Y405138 | [1] | SHIM | |
| 01G. | Y405139 | [1] | PACKING | |
| 01H. | Y405140 | [1] | CAP | |
| 01I. | J70784 | [1] | ADAPTER | |
| 01J. | Y401954 | [1] | VALVE;BALL | |
| 01K. | Y408419 | [1] | FITTING | |
| 01L. | Y414823 | [1] | PLATE;LOCK | |
| 01M. | Y414825 | [2] | SCREW;SET | |
| 01N. | Y404865 | [2] | STRANER | |
