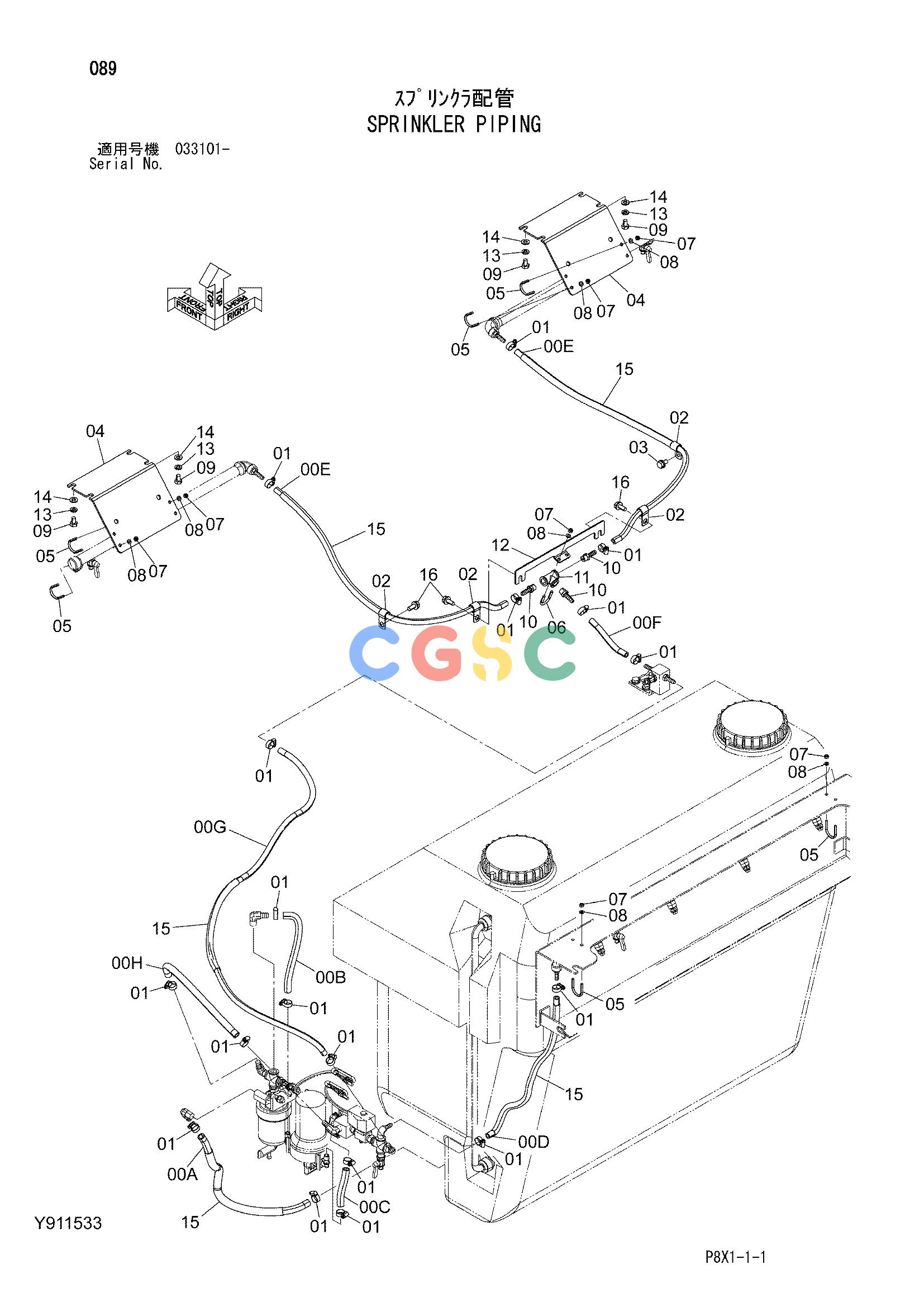

日立零件查询（CS125-3）SPRINKLER PIPING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
913 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y417742 | [1] | HOSE;VINYL | |
| 00A. | Y414688 | [1] | HOSE;VINYL | |
| 00B. | Y417743 | [1] | HOSE;VINYL | |
| 00C. | Y417744 | [1] | HOSE;VINYL | |
| 00D. | Y414691 | [1] | HOSE;VINYL | |
| 00E. | Y414692 | [2] | HOSE;VINYL | |
| 00F. | Y414694 | [1] | HOSE;VINYL | |
| 00G. | Y417978 | [1] | HOSE;VINYL | |
| 00H. | Y417979 | [1] | HOSE;VINYL | |
| 01. | 4514700 | [18] | CLAMP;HOSE | |
| 02. | 4190253 | [4] | CLIP | |
| 03. | J271020 | [1] | BOLT;SEMS | |
| 03A. | J901020 | [1] | BOLT | |
| 03B. | J222010 | [1] | WASHER | |
| 04. | Y300739 | [2] | BRACKET | |
| 05. | Y401841 | [6] | BOLT;U | |
| 06. | Y401840 | [1] | BOLT;U | |
| 07. | M500605 | [14] | NUT | |
| 08. | A590906 | [14] | WASHER;SPRING | |
| 09. | J901016 | [8] | BOLT | |
| 10. | Y402305 | [3] | FITTING;HOSE | |
| 11. | J70483 | [1] | TEE | |
| 12. | Y300744 | [1] | BRACKET | |
| 13. | A590910 | [8] | WASHER;SPRING | |
| 14. | A590110 | [8] | WASHER;PLANE | |
| 15. | 4327293 | [5] | PROTECTOR | |
| 16. | J271025 | [3] | BOLT;SEMS | |
| 16A. | J901025 | [1] | BOLT | |
| 16B. | J222010 | [1] | WASHER | |
