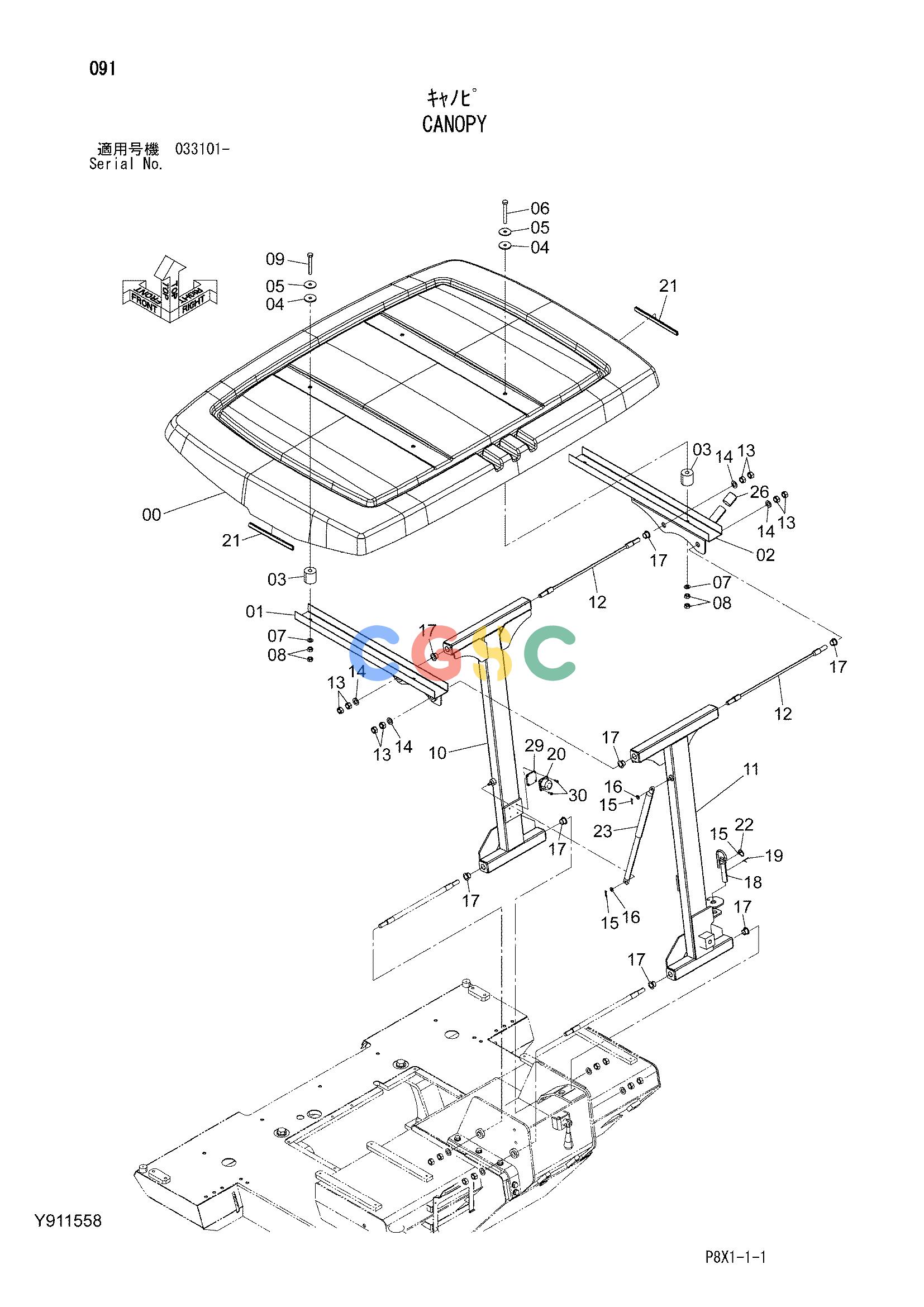

日立零件查询（CS125-3）CANOPY Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
747 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y500114 | [1] | ROOF | |
| 01. | Y800791 | [1] | SUPPORT | |
| 02. | Y800792 | [1] | SUPPORT | |
| 03. | Y404869 | [4] | RUBBER;CUSHION | |
| 04. | Y404870 | [4] | PACKING | |
| 05. | Y404871 | [4] | WASHER | |
| 06. | J901200 | [2] | BOLT | |
| 07. | A590112 | [4] | WASHER;PLANE | |
| 08. | J950012 | [8] | NUT | |
| 09. | J901290 | [2] | BOLT | |
| 10. | Y700339 | [1] | POLE | |
| 11. | Y700340 | [1] | POLE | |
| 12. | Y404873 | [2] | SHAFT | |
| 13. | J950016 | [8] | NUT | |
| 14. | A590116 | [4] | WASHER;PLANE | |
| 15. | 4022697 | [3] | PIN;LOCK | |
| 16. | A590108 | [2] | WASHER;PLANE | |
| 17. | Y405110 | [8] | BUSHING | |
| 18. | Y970352 | [1] | PIN | |
| 19. | A763032 | [1] | PIN;SPLIT | |
| 20. | Y404855 | [1] | RUBBER;CUSHION | |
| 21. | Y404878 | [2] | BUSHING | |
| 22. | Y401543 | [1] | KEY;RING | |
| 23. | Y407443 | [1] | CYL. | |
| 26. | Y409164 | [1] | CAP | |
| 29. | Y417952 | [1] | PLATE | |
| 30. | J450520 | [4] | SCREW;SEMS | |
