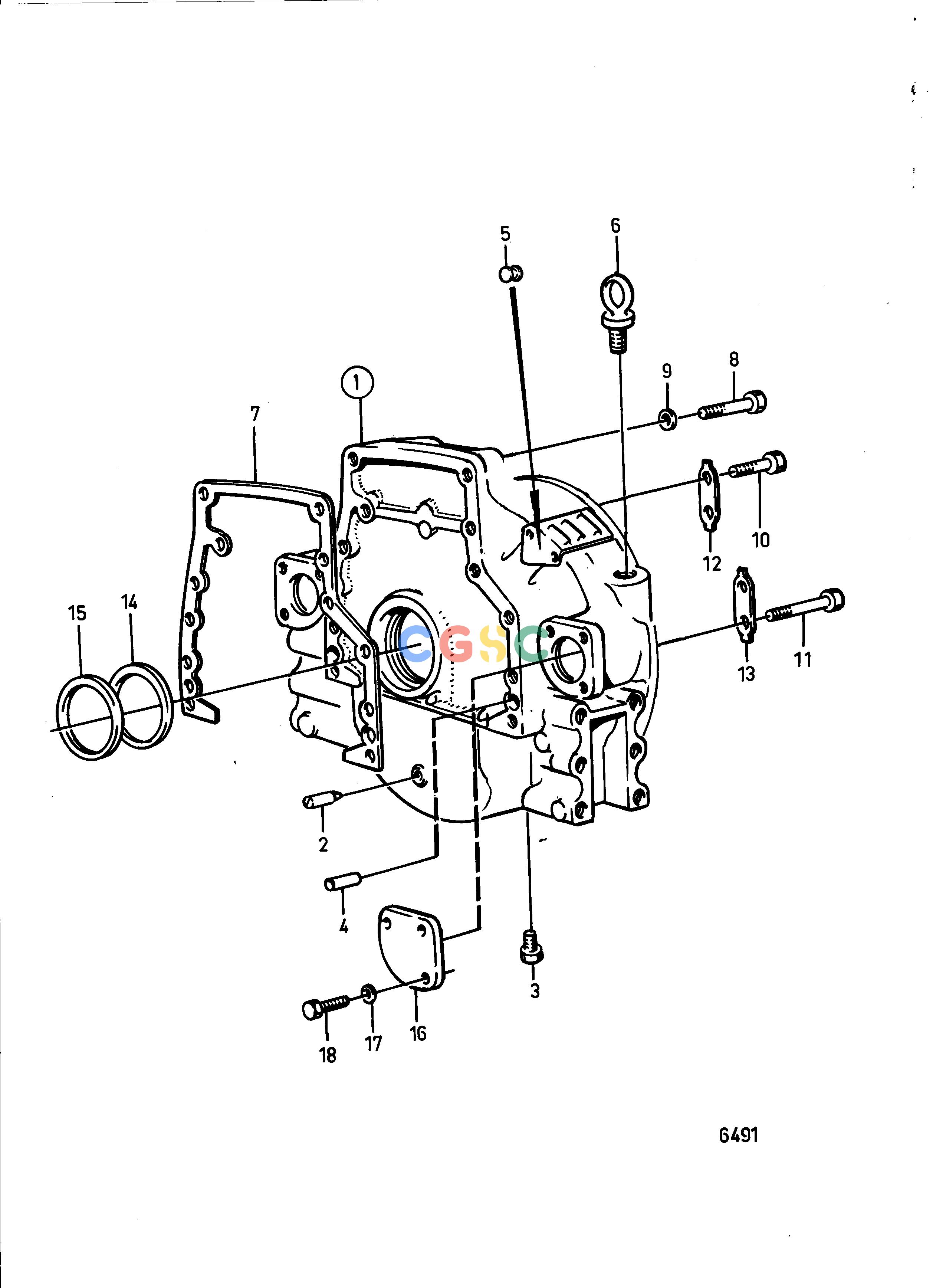

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCEngineFlywheel HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
322 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
846348
|
[1] |
Flywheel housing
|
|
| 2. |
403270
|
[1] |
Pin
|
|
| 3. |
952357
|
[1] |
Plug
|
|
| 4. |
191171
|
[2] |
Pin
|
|
| 5. |
61822
|
[1] |
Rubber plug
|
|
| 6. |
|
|
|
|
| 7. |
468556
|
[1] |
Gasket
|
|
| 8. |
955582
|
[2] |
Hexagon screw
|
|
| 9. |
941911
|
[2] |
Spring washer
|
|
| 10. |
955580
|
[8] |
Hexagon screw
|
|
| 11. |
955587
|
[2] |
Hexagon screw
|
|
| 12. |
941464
|
[1] |
Tab washer
|
|
| 13. |
941465
|
[5] |
Tab washer
|
|
| 14. |
821754
|
[1] |
Sealing ring
|
|
| 15. |
821767
|
[1] |
Spacer ring
|
|
| 16. |
423081
|
[1] |
Cover
|
|
| 17. |
942336
|
[3] |
Spring washer
|
|
| 18. |
940114
|
[3] |
Hexagon screw
|
|
