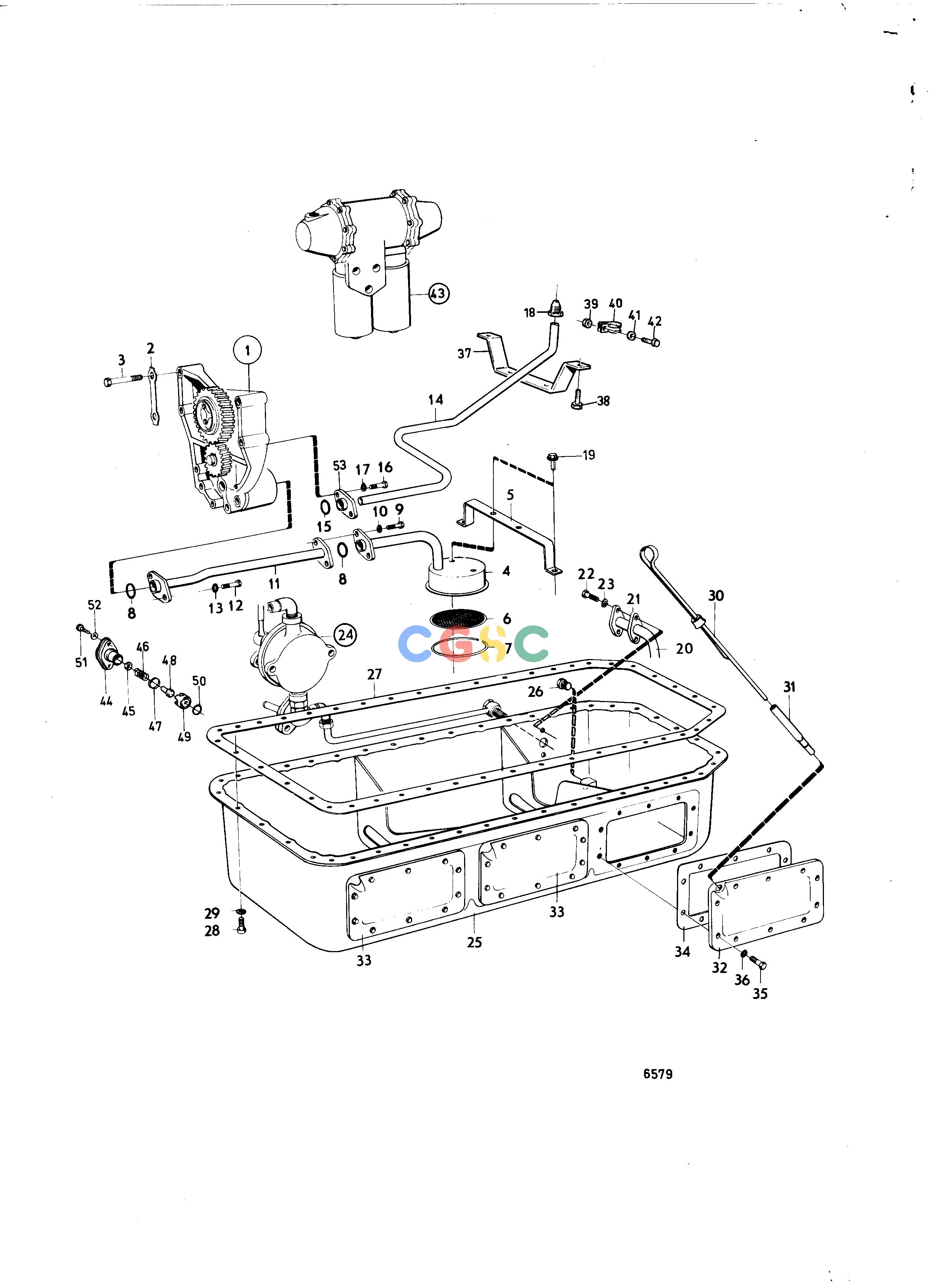

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCEngineLubricating SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
1010 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
468351
|
[1] |
Oil pump
|
|
| 2. |
190529
|
[2] |
Tab washer
|
|
| 3. |
955538
|
[4] |
Hexagon screw
|
|
| 4. |
824156
|
[1] |
Suction pipe
|
|
| 5. |
896682
|
[1] |
Bracket
|
|
| 6. |
414621
|
[1] |
Wire gauze
|
|
| 7. |
118125
|
[1] |
Snap ring
|
|
| 8. |
949658
|
[2] |
O-ring
|
|
| 9. |
955533
|
[2] |
Hexagon screw
|
|
| 10. |
941907
|
[2] |
Spring washer
|
|
| 11. |
824174
|
[1] |
Intermediate pipe
|
|
| 12. |
940135
|
[2] |
Hexagon screw
|
|
| 13. |
941907
|
[2] |
Spring washer
|
|
| 14. |
470264
|
[1] |
Oil pressure pipe
|
|
| 15. |
470263
|
[1] |
Sealing ring
|
|
| 16. |
959793
|
[2] |
Hexagon screw
|
|
| 17. |
955894
|
[2] |
Washer
|
|
| 18. |
466908
|
[1] |
Fitting
|
|
| 19. |
942402
|
[4] |
Flange screw
|
|
| 20. |
896775
|
[1] |
Pipe
|
|
| 21. |
802287
|
[1] |
Gasket
|
|
| 22. |
955525
|
[2] |
Hexagon screw
|
|
| 23. |
941907
|
[2] |
Spring washer
|
|
| 24. |
7742190_025
|
|
oil sump pump and installation comps
|
|
| 24. |
|
|
|
|
| 25. |
822586
|
[1] |
Crankcase
|
|
| 26. |
951906
|
[1] |
Magnetic plug
|
|
| 27. |
470133
|
[1] |
Gasket
|
|
| 28. |
956570
|
[43] |
Hex. socket screw
|
|
| 29. |
941907
|
[43] |
Spring washer
|
|
| 30. |
822542
|
[1] |
Oil dipstick
|
|
| 31. |
846922
|
[1] |
Tube
|
|
| 32. |
822588
|
[1] |
Hatch
|
|
| 33. |
822587
|
[2] |
Cover
|
|
| 34. |
822589
|
[3] |
Gasket
|
|
| 35. |
955535
|
[30] |
Hexagon screw
|
|
| 36. |
942336
|
[30] |
Spring washer
|
|
| 37. |
470143
|
[1] |
Bracket
|
|
| 38. |
942402
|
[2] |
Flange screw
|
|
| 39. |
945467
|
[1] |
Lock nut
|
|
| 40. |
949786
|
[1] |
Clamp
|
|
| 41. |
955894
|
[1] |
Washer
|
|
| 42. |
942402
|
[1] |
Flange screw
|
|
| 43. |
7742190_020
|
|
oil filter and installation comps
|
|
| 43. |
|
|
|
Class
|
| 43. |
7742190_022
|
|
oil filter and installation comps
|
|
| 44. |
469465
|
[1] |
Cover
|
|
| 45. |
949658
|
[1] |
O-ring
|
|
| 46. |
468727
|
[1] |
Spring
|
|
| 47. |
470291
|
[1] |
Compression spring
|
|
| 48. |
471085
|
[1] |
Valve cone
|
|
| 49. |
469468
|
[1] |
Valve seat
|
|
| 50. |
424342
|
[1] |
Sealing ring
|
|
| 51. |
955512
|
[2] |
Hexagon screw
|
|
| 52. |
192287
|
[2] |
Washer
|
|
| 53. |
470262
|
[1] |
Flange
|
|
