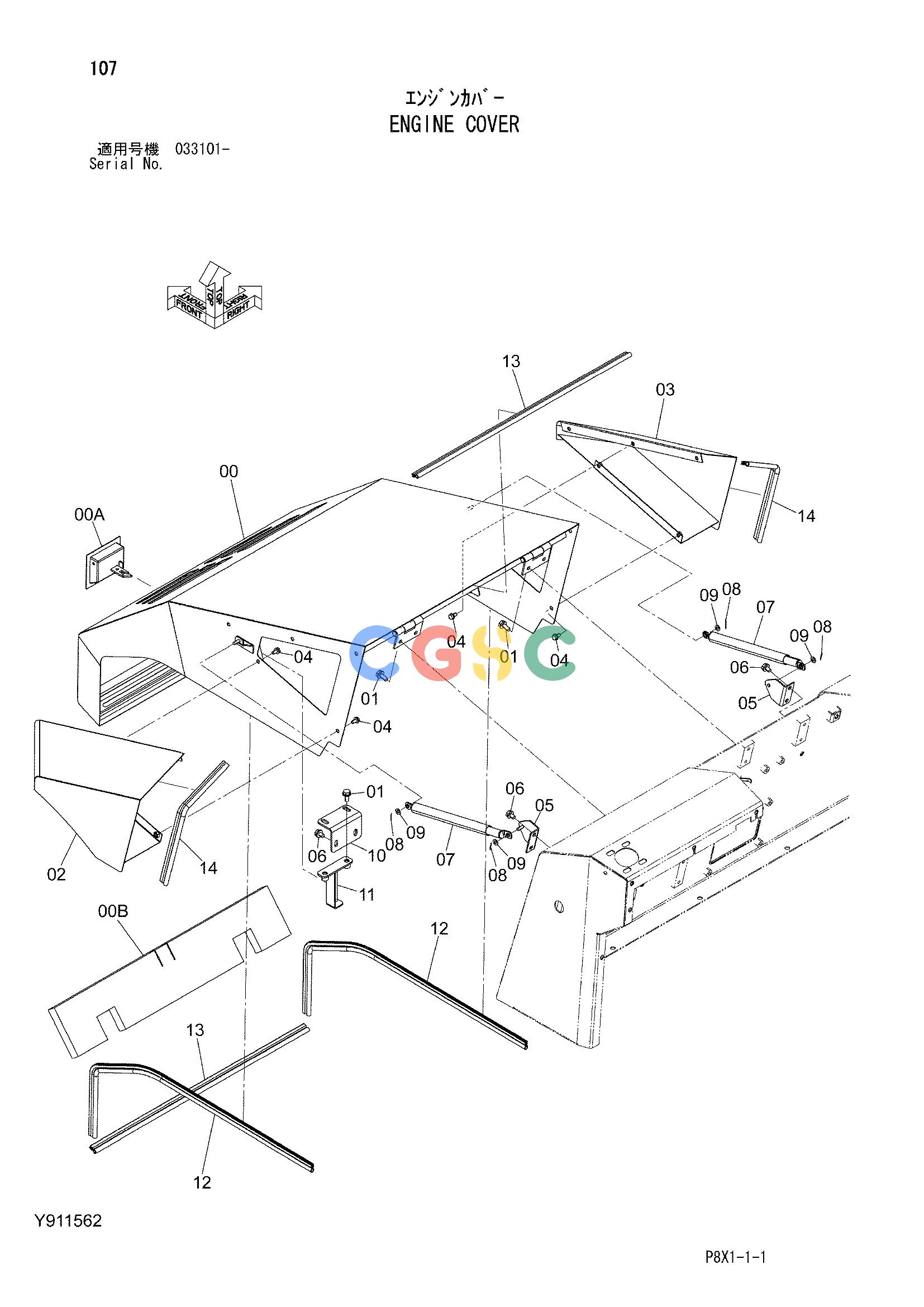

日立零件查询（CS125-3）ENGINE COVER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
968 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y500367 | [1] | COVER;ENGINE | |
| 00A. | 4422418 | [1] | LATCH | |
| 00B. | Y417865 | [1] | ISOLATOR | |
| 01. | J271025 | [6] | BOLT;SEMS | |
| 01A. | J901025 | [1] | BOLT | |
| 01B. | J222010 | [1] | WASHER | |
| 02. | Y701209 | [1] | FENDER | |
| 03. | Y701210 | [1] | FENDER | |
| 04. | J260816 | [10] | BOLT;SEMS | |
| 04A. | J900816 | [1] | BOLT | |
| 04B. | A590108 | [1] | WASHER;PLANE | |
| 05. | Y802836 | [2] | BRACKET | |
| 06. | J271016 | [6] | BOLT;SEMS | |
| 06A. | J901016 | [1] | BOLT | |
| 06B. | J222010 | [1] | WASHER | |
| 07. | Y407443 | [2] | CYL. | |
| 08. | A762020 | [4] | PIN;SPLIT | |
| 09. | A590108 | [4] | WASHER;PLANE | |
| 10. | Y417795 | [1] | BRACKET | |
| 11. | Y802818 | [1] | CATCH | |
| 12. | Y417796 | [2] | TRIM;SEAL | |
| 13. | Y417797 | [2] | TRIM;SEAL | |
| 14. | Y417798 | [2] | TRIM;SEAL | |
