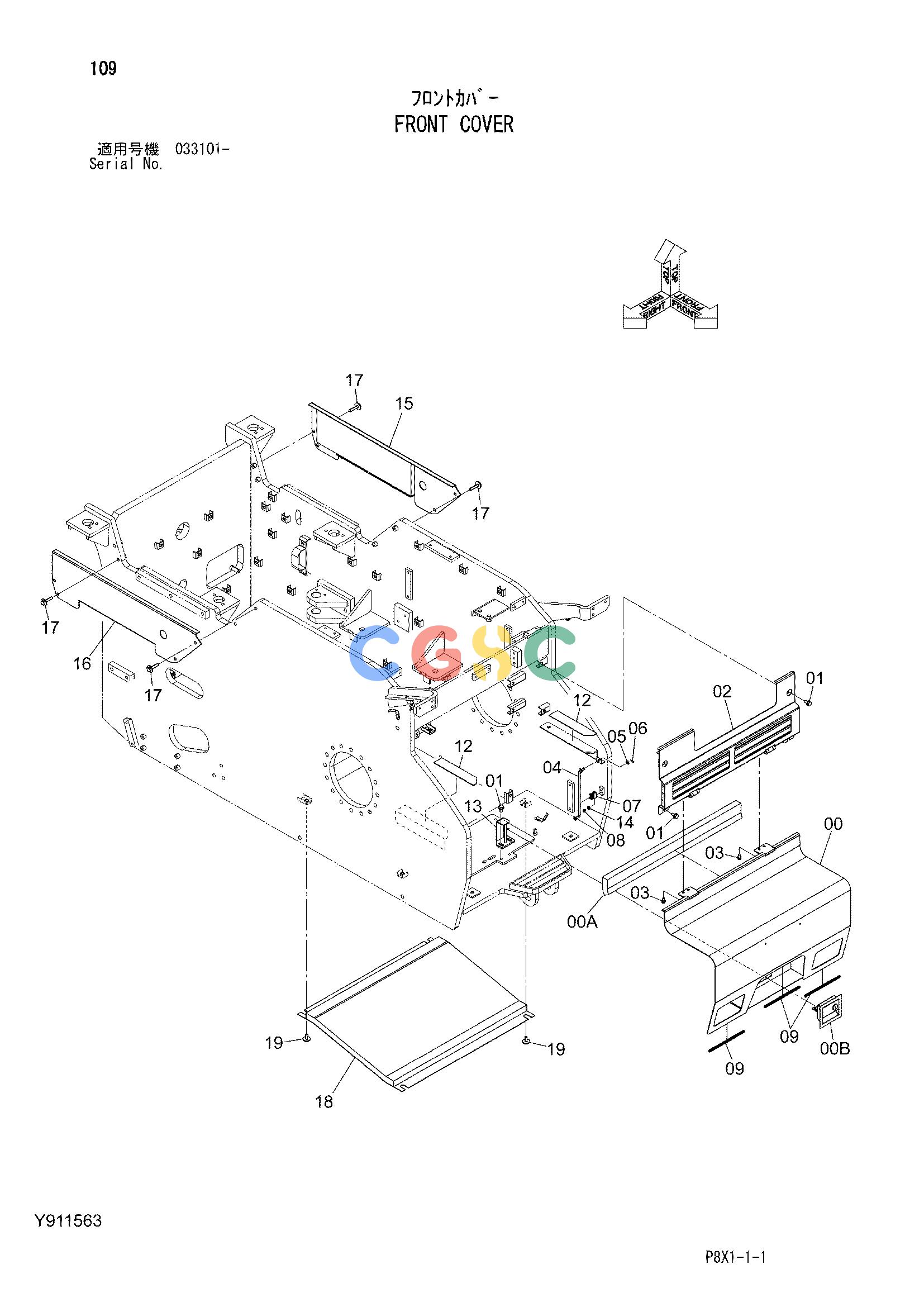

日立零件查询（CS125-3）FRONT COVER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
775 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y701196 | [1] | COVER | |
| 00A. | Y417826 | [1] | ISOLATOR | |
| 00B. | 4422418 | [1] | LATCH | |
| 01. | J271020 | [6] | BOLT;SEMS | |
| 01A. | J901020 | [1] | BOLT | |
| 01B. | J222010 | [1] | WASHER | |
| 02. | Y701206 | [1] | COVER | |
| 03. | J260816 | [4] | BOLT;SEMS | |
| 03A. | J900816 | [1] | BOLT | |
| 03B. | A590108 | [1] | WASHER;PLANE | |
| 04. | Y971848 | [1] | STAY | |
| 05. | A590108 | [1] | WASHER;PLANE | |
| 06. | A762020 | [1] | PIN;SPLIT | |
| 07. | Y404921 | [1] | LOCK | |
| 08. | J450610 | [2] | SCREW;SEMS | |
| 09. | Y417980 | [3] | TRIM;PAD | |
| 12. | Y417945 | [2] | RUBBER | |
| 13. | Y802853 | [1] | CATCH;DOOR | |
| 14. | A590906 | [2] | WASHER;SPRING | |
| 15. | Y800924 | [1] | COVER | |
| 16. | Y800925 | [1] | COVER | |
| 17. | J281050 | [8] | BOLT;SEMS | |
| 17A. | J901050 | [1] | BOLT | |
| 17B. | 4486055 | [1] | WASHER | |
| 18. | Y802959 | [1] | COVER | |
| 19. | J281025 | [4] | BOLT;SEMS | |
| 19A. | J901025 | [1] | BOLT | |
| 19B. | 4486055 | [1] | WASHER | |
