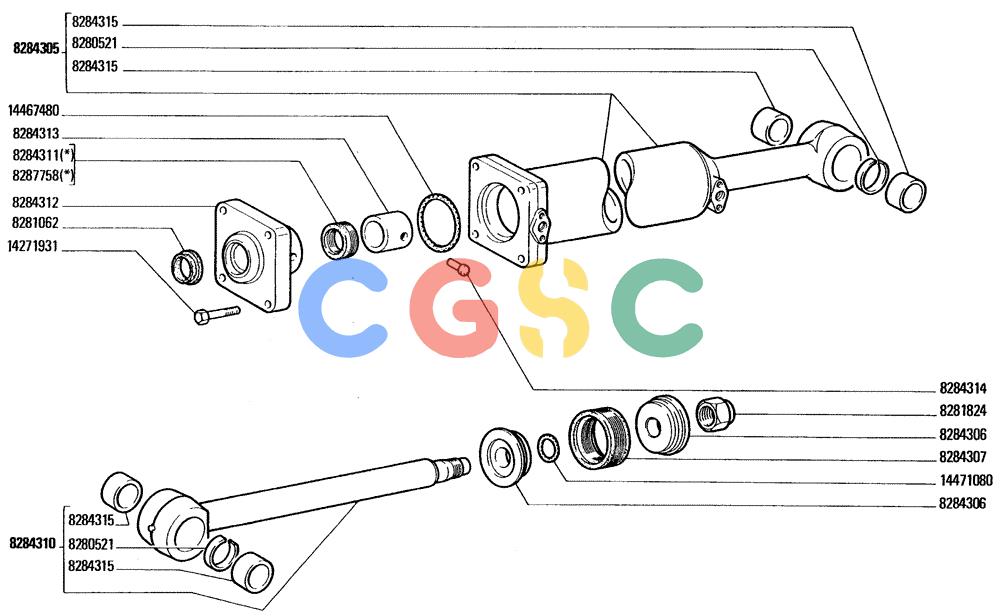

纽荷兰零件查询(FD20) - CRAWLER DOZER (E3.32/2A[001]) - CYLINDER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
585 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 8280521. | 8280521 | [2] | SPACER | LEC |
| 8281062. | 8281062 | [1] | SEAL,69.96mm ID x 82.7mm OD x 9mm Thk | LECMUDSCRAPER RING |
| 8281824. | 8281824 | [1] | NUT | LEC Superseded by part number: 76015054 |
| 8284305. | 8284305 | [1] | BARREL | LEC |
| 8284306. | 8284306 | [2] | PISTON | LECHALF-PISTON |
| 8284307. | 8284307 | [1] | GASKET | LECSEAL Superseded by part number: 45025031 |
| 8284310. | 8284310 | [2] | ROD | LEC |
| 8284311. | 8284311 | [1] | GASKET,70.4mm ID x 85.03mm OD x 25mm Thk | LECSEAL |
| 8284312. | 8284312 | [1] | BASE PLATE | LECEND PLATE |
| 8284313. | 8284313 | [1] | BUSHING | LECBUSH |
| 8284314. | 8284314 | [1] | DOWEL | LEC |
| 8284315. | 8284315 | [4] | BUSHING | LECBUSH |
| 8287758. | 8287758 | [1] | GASKET | LECSEAL Superseded by part number: 8284311 |
| 14271931. | 14271931 | [8] | SCREW | LEC |
| 14467480. | 14467480 | [2] | O-RING,0.139" Thk x 5.734" ID, -256, Cl 5, 75 Duro | LECSEAL Superseded by part number: 86012300 |
| 14471080. | 14471080 | [2] | GASKET | MKTSEAL Superseded by part number: 86012298 |
