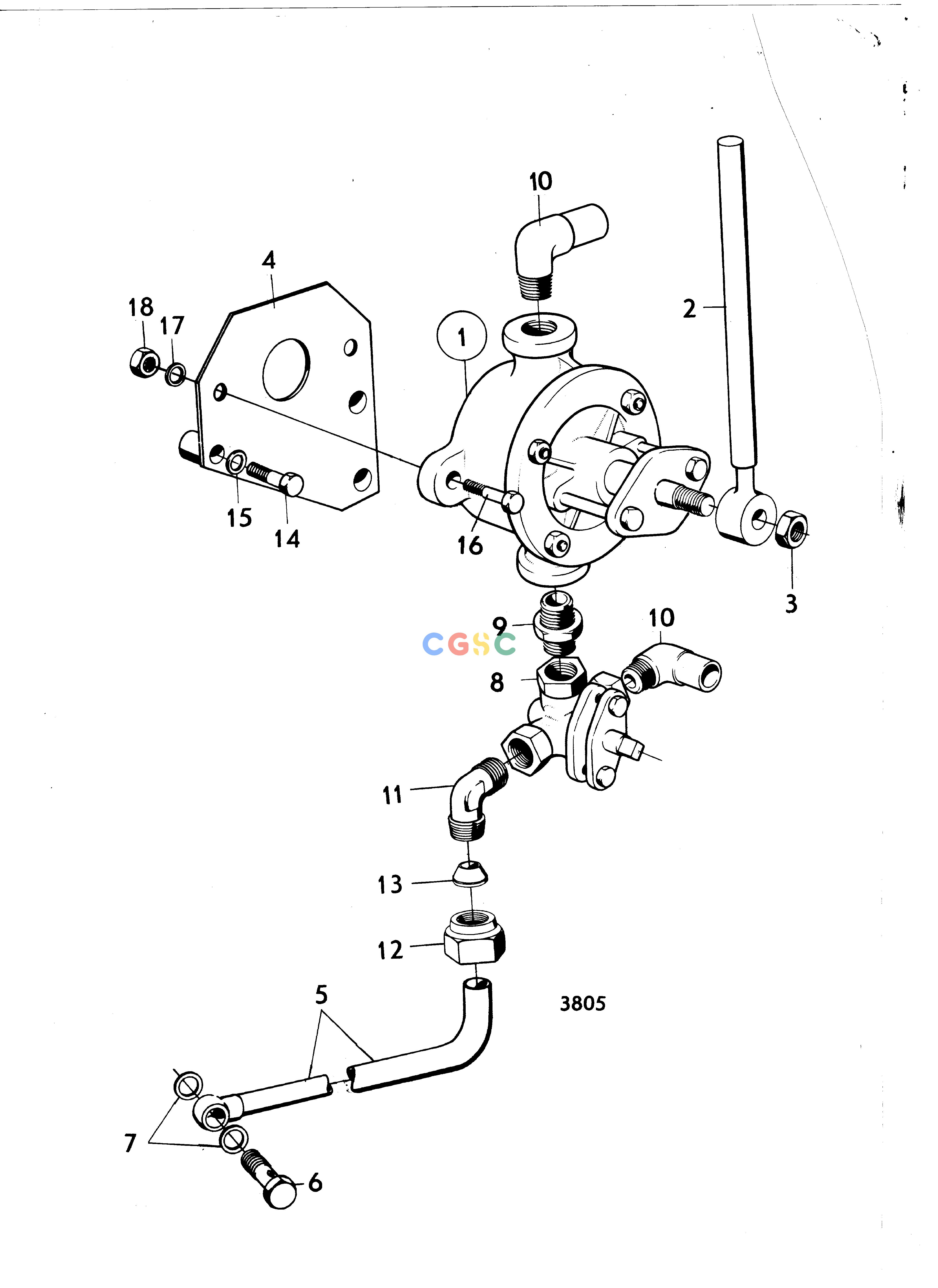

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCEngineOil Bilge Pump with Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
739 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
805999
|
[1] |
Oil bilge pump
|
|
| 2. |
821713
|
[1] |
Handle
|
|
| 3. |
955827
|
[1] |
Hexagon nut
|
|
| 4. |
846174
|
[1] |
Bracket
|
(820677)
|
| 5. |
822624
|
[1] |
Tube
|
|
| 6. |
26013
|
[1] |
Hollow screw
|
|
| 7. |
957181
|
[2] |
Gasket
|
|
| 8. |
807721
|
[1] |
Cock
|
|
| 9. |
16452
|
[1] |
Double nipple
|
|
| 10. |
803490
|
[2] |
Hose attachment
|
|
| 11. |
941758
|
[1] |
Elbow nipple
|
|
| 12. |
941752
|
[1] |
Fitting nut
|
|
| 13. |
941753
|
[1] |
Ferrule
|
|
| 14. |
940161
|
[1] |
Hexagon screw
|
|
| 15. |
941907
|
[1] |
Spring washer
|
|
| 16. |
955535
|
[2] |
Hexagon screw
|
|
| 17. |
942336
|
[2] |
Spring washer
|
|
| 18. |
955827
|
[2] |
Hexagon nut
|
|
