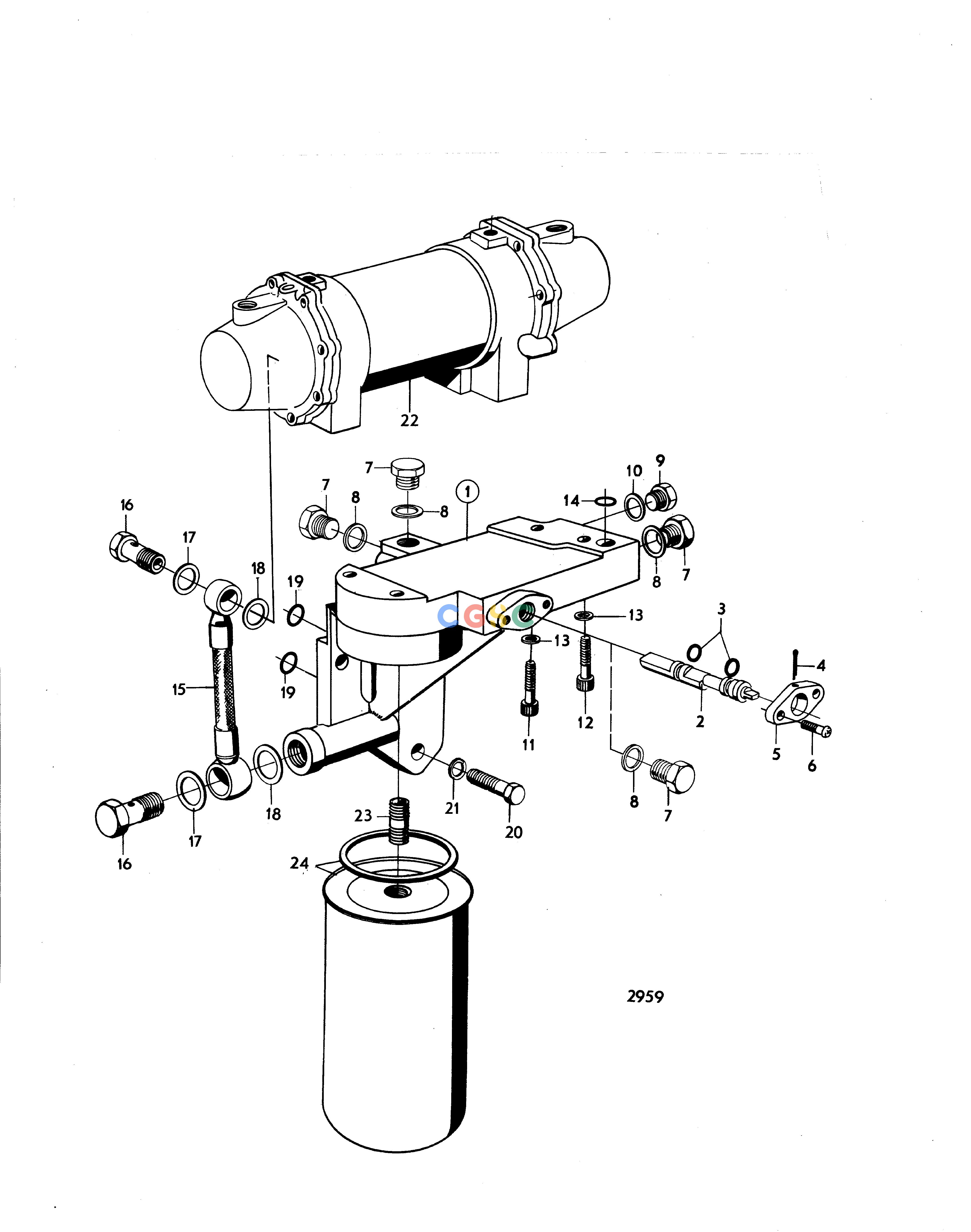

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCEngineOil Filter and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
237 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
824187
|
[1] |
Bracket
|
|
| 1. |
824199
|
[1] |
Selector valve, bracket with shifting valve
|
See group 2B
|
| 1. |
|
|
|
|
| 2. |
824198
|
[1] |
Valve peg
|
AQ130C MO-XXXX/87512.
|
| 3. |
925057
|
[2] |
O-ring
|
AQ130C MO-XXXX/87512.
|
| 4. |
907868
|
[1] |
Split pin
|
AQ130C MO-XXXX/87512.
|
| 5. |
824195
|
[1] |
Flange
|
AQ130C MO-XXXX/87512.
|
| 6. |
950022
|
[2] |
Cross recessed screw
|
AQ130C MO-XXXX/87512
|
| 7. |
914392
|
[4] |
Plug
|
AQ130C MOXXXX/87513-.
|
| 8. |
947626
|
[3] |
Gasket
|
AQ130C MO-XXXX/87512.
|
| 8. |
957184
|
[4] |
Gasket
|
AQ130C MOXXXX/87513-.
|
| 9. |
914391
|
[2] |
Plug
|
|
| 10. |
18706
|
[2] |
Gasket
|
|
| 11. |
956571
|
[3] |
Hex. socket screw
|
See group 2B
|
| 12. |
956572
|
[1] |
Hex. socket screw
|
See group 2B
|
| 13. |
11992
|
[4] |
Gasket
|
See group 2B
|
| 14. |
960168
|
[1] |
O-ring
|
See group 2B
|
| 15. |
824193
|
[1] |
Rubber hose
|
|
| 16. |
944213
|
[2] |
Hollow screw
|
|
| 17. |
957189
|
[2] |
Gasket
|
|
| 18. |
957189
|
[2] |
Gasket
|
|
| 19. |
925060
|
[2] |
O-ring
|
|
| 20. |
940162
|
[3] |
Hexagon screw
|
|
| 21. |
942336
|
[3] |
Spring washer
|
|
| 22. |
|
|
|
See group 2B
|
| 23. |
423067
|
[2] |
Nipple
|
|
| 24. |
4785974
|
[2] |
Oil filter
|
|
