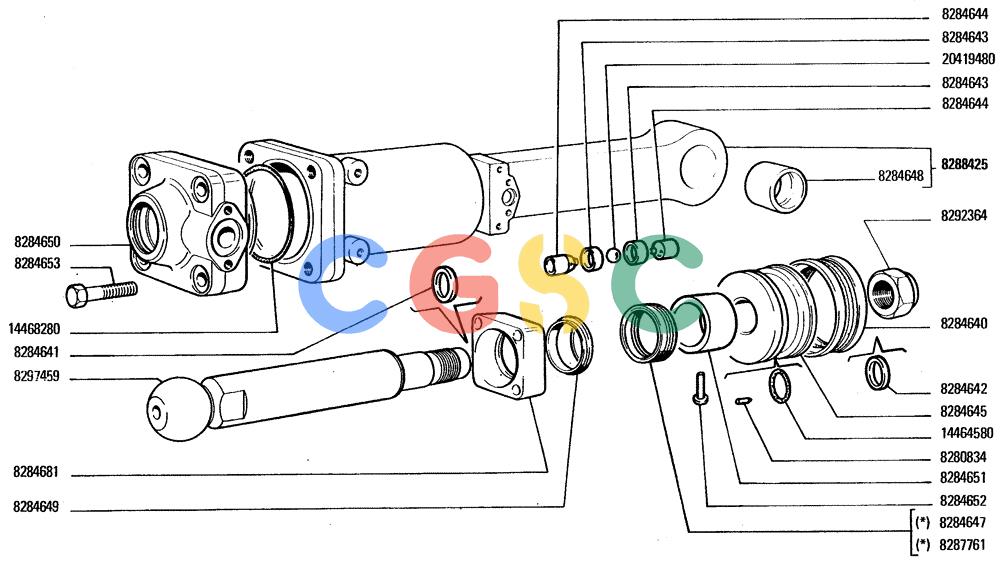

纽荷兰零件查询(FD20) - CRAWLER DOZER (E3.32/4A[001]) - CYLINDER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
123 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 8280834. | 8280834 | [1] | DOWEL | LEC |
| 8284640. | 8284640 | [1] | GASKET | LECO-RING |
| 8284641. | 8284641 | [1] | SPACER | LEC |
| 8284642. | 8284642 | [1] | SPACER | LEC |
| 8284643. | 8284643 | [4] | BALL SOCKET | LECSEATING |
| 8284644. | 8284644 | [2] | HYDRAULIC VALVE | LECPUSH ROD |
| 8284645. | 8284645 | [1] | PISTON | LEC |
| 8284647. | 8284647 | [1] | GASKET | MODO-RING |
| 8284648. | 8284648 | [1] | BUSHING | LEC |
| 8284650. | 8284650 | [1] | BASE PLATE | LECBOTTOM PLATE |
| 8284651. | 8284651 | [1] | BUSHING | LEC |
| 8284652. | 8284652 | [1] | DOWEL | LEC |
| 8284653. | 8284653 | [4] | SCREW | LEC |
| 8284681. | 8284681 | [1] | SPECIAL TOOL | LECFLANGE |
| 8287761. | 8287761 | [1] | GASKET | LECO-RING Superseded by part number: 8284647 |
| 8288425. | 8288425 | [1] | BARREL | LEC |
| 8292364. | 8292364 | [1] | NUT | LEC |
| 8297459. | 8297459 | [1] | ROD | LECPISTON ROD |
| 14468280. | 14468280 | [1] | GASKET | MKTO-RING Superseded by part number: 87302761 |
| 20419480. | 20419480 | [2] | BALL | LEC |
| 14464580. | 14464580 | [1] | O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro | TTF-227, 70 Duro, 2.109" ID x .139" Thk Superseded by part number: 510121 |
