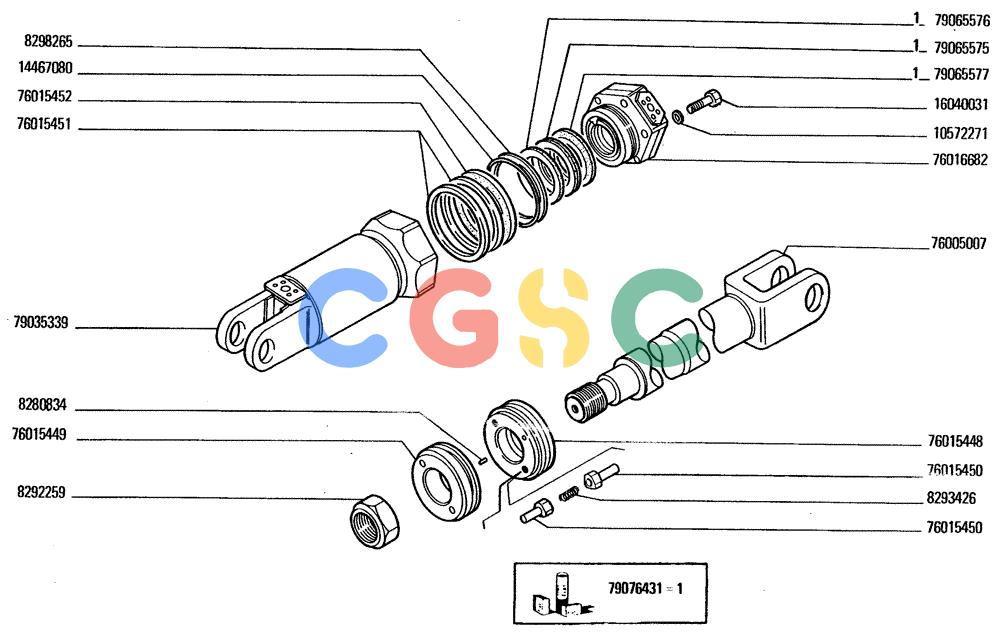

纽荷兰零件查询(FD20) - CRAWLER DOZER (E3.32/5[001]) - CYLINDER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
940 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 8280834. | 8280834 | [1] | DOWEL | LEC |
| 8292259. | 8292259 | [1] | NUT | LEC |
| 8293426. | 8293426 | [2] | SPRING | LEC |
| 8298265. | 8298265 | [1] | RING | LECRETAINING RING |
| 10572271. | 10572271 | [6] | LOCK WASHER,M18 | MKTLOCKWASHER Superseded by part number: |
| 14467080. | 14467080 | [1] | O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro | LEC-252, 70 Duro, 5.234" ID x .139" Thk Superseded by part number: 79051081 |
| 16040031. | 16040031 | [6] | BOLT,Hex, M18 x 90mm, Cl 10.9 | CMISCREW Superseded by part number: 16040037 |
| 76005007. | 76005007 | [1] | ROD | LECPISTON ROD |
| 76015448. | 76015448 | [1] | PISTON | LECHALF-PISTON |
| 76015449. | 76015449 | [1] | PISTON | LECHALF-PISTON |
| 76015450. | 76015450 | [2] | HYDRAULIC VALVE | LECVALVE |
| 76015451. | 76015451 | [2] | GUIDE RING,134mm ID x 140mm OD x 13mm Thk | LECRING |
| 76015452. | 76015452 | [1] | SEAL | LECO-RING |
| 76016682. | 76016682 | [1] | BASE PLATE | LECBOTTOM PLATE |
| 79035339. | 79035339 | [1] | BARREL | LEC |
| 79065575. | 79065575 | [1] | SEAL,80mm ID x 100mm OD x 12mm Thk | LECPAD |
| 76065576. | 79065576 | [1] | SEALING RING,79.5mm ID x 98.5mm OD x 5mm Thk | LECRING |
| 79065577. | 79065577 | [1] | SEAL,80mm ID x 100.25mm OD x 10mm Thk | LECPAD |
| 79076431. | 79076431 | [1] | GASKET KIT | LECKIT |
