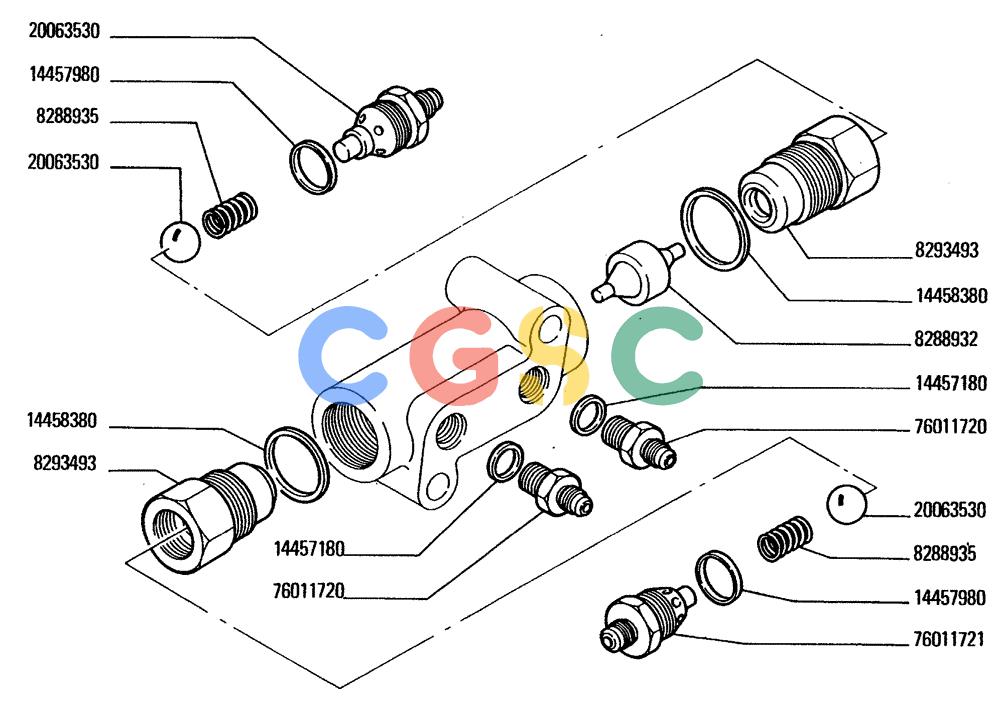

纽荷兰零件查询(FD20) - CRAWLER DOZER (E3.32/6[001]) - VALVE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
745 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 8288932. | 8288932 | [1] | PLUNGER | LEC |
| 8288935. | 8288935 | [2] | SPRING | LEC |
| 8293493. | 8293493 | [2] | BALL SOCKET | LECSEATING |
| 14457180. | 14457180 | [2] | O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro | TTF Superseded by part number: 5146468 |
| 14457980. | 14457980 | [2] | O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro | TTF-121, 70 Duro, 1.049" ID x .103" Thk |
| 14458380. | 14458380 | [2] | O-RING,0.103" Thk x 1.299" ID, -125, Cl 5, 75 Duro | JES Superseded by part number: 130333 |
| 20063530. | 20063530 | [2] | BALL | MKT Superseded by part number: 20419480 |
| 76011720. | 76011720 | [2] | HYD CONNECTOR | LECFITTING |
| 76011721. | 76011721 | [2] | PLUG | LECFITTING |
