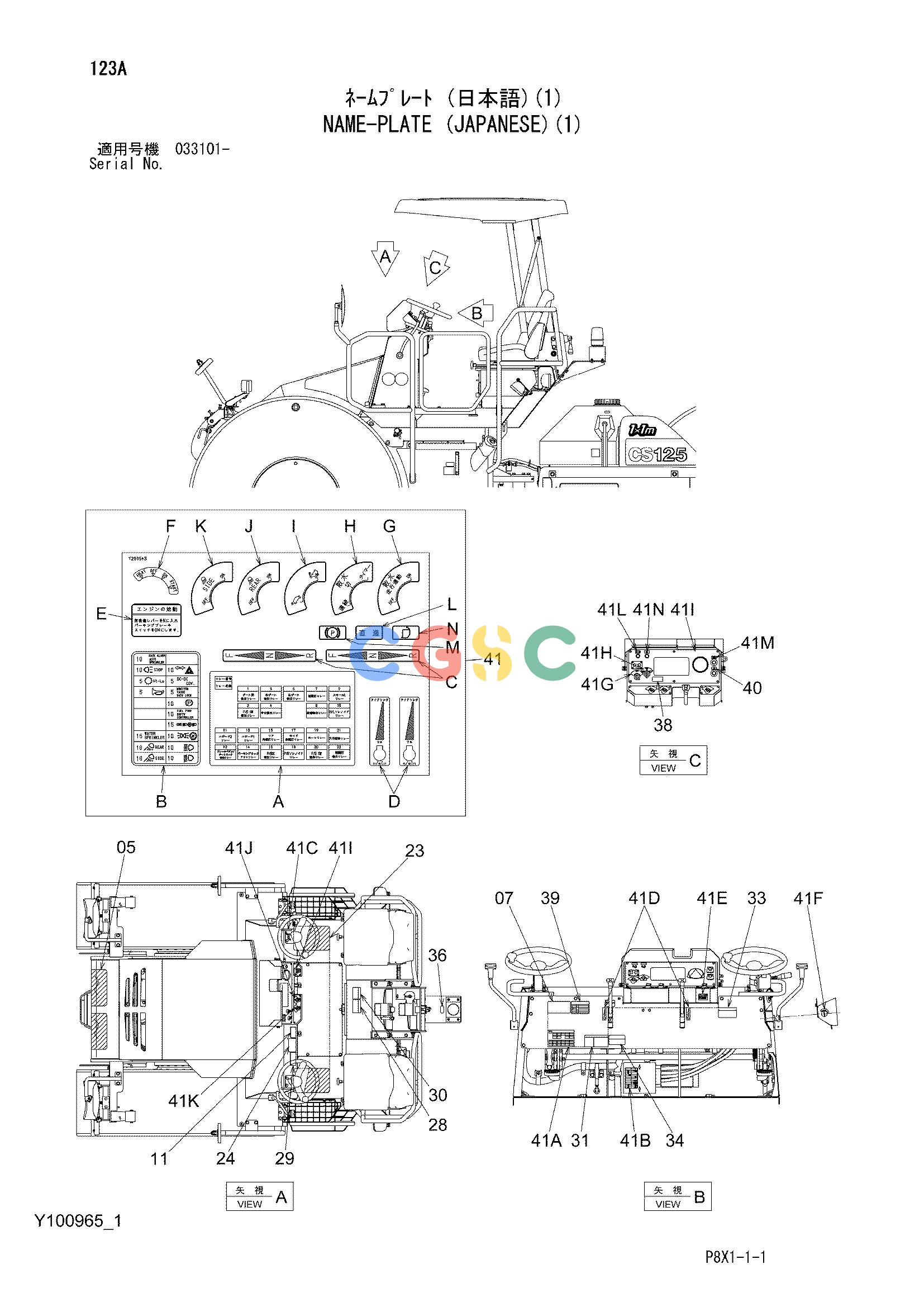

日立零件查询（CS125-3）NAME-PLATE (JAPANESE)(1) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
712 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 05. | 4224791 | [2] | TAPE | (ANTI-SKID TAPE) |
| 07. | 4334370 | [1] | NAME-PLATE | (WARNING:COMPORNENTS) |
| 11. | 4418273 | [1] | SAFETY-SIGN | (INTENSIVE READING MANUAL) |
| 23. | Y402689 | [2] | TAPE | (ANTI-SKID TAPE) |
| 24. | Y404382 | [1] | NAME-PLATE | (INTENSIVE READING MANUAL) |
| 28. | Y405870 | [1] | NAME-PLATE | (GAS CYLINDER) |
| 29. | Y405106 | [1] | NAME-PLATE | (LEFT SIDE OPERATION) |
| 30. | Y405111 | [1] | NAME-PLATE | (CAUTION FOR CANOPY) |
| 31. | Y405114 | [1] | NAME-PLATE | (OPERATION: UNLODE LEVER) |
| 33. | Y405118 | [1] | NAME-PLATE | (BRAKE PEDAL) |
| 34. | Y405119 | [1] | NAME-PLATE | (WARNING: PARKING BRAKE) |
| 36. | Y417473 | [1] | NAME-PLATE | (CAUTION FOR ROTATING BEACON) |
| 38. | Y417498 | [1] | NAME-PLATE | (CAUTION FOR WORKING LAMP) |
| 39. | Y418003 | [1] | NAME-PLATE | (SPECIFICATION) |
| 40. | Y418006 | [2] | NAME-PLATE | (HAZARD FLASHER SWITCH) |
| 41. | Y200543 | [1] | NAME-PLATE | |
| 41A. | +++++++ | [1] | NAME-PLATE | (RELAY) |
| 41B. | +++++++ | [1] | NAME-PLATE | (FUSE) |
| 41C. | +++++++ | [2] | NAME-PLATE | (FNR) |
| 41D. | +++++++ | [2] | NAME-PLATE | (THROTTLE LEVER) |
| 41E. | +++++++ | [1] | NAME-PLATE | (TO START ENGINE) |
| 41F. | +++++++ | [1] | NAME-PLATE | (KEY SWITCH) |
| 41G. | +++++++ | [1] | NAME-PLATE | (SPRINKLING SWITCH) |
| 41H. | +++++++ | [1] | NAME-PLATE | (SPRINKLING SWITCH) |
| 41I. | +++++++ | [1] | NAME-PLATE | (FLOW RATE SELECTOR) |
| 41J. | +++++++ | [1] | NAME-PLATE | (REAR WORKING LAMP) |
| 41K. | +++++++ | [1] | NAME-PLATE | (SIDE WORKING LAMP) |
| 41L. | +++++++ | [1] | NAME-PLATE | (DIRECT ADVANCE) |
| 41M. | +++++++ | [1] | NAME-PLATE | (PARKING BRAKE) |
| 41N. | +++++++ | [1] | NAME-PLATE | (GATE LOCK OPEN) |
