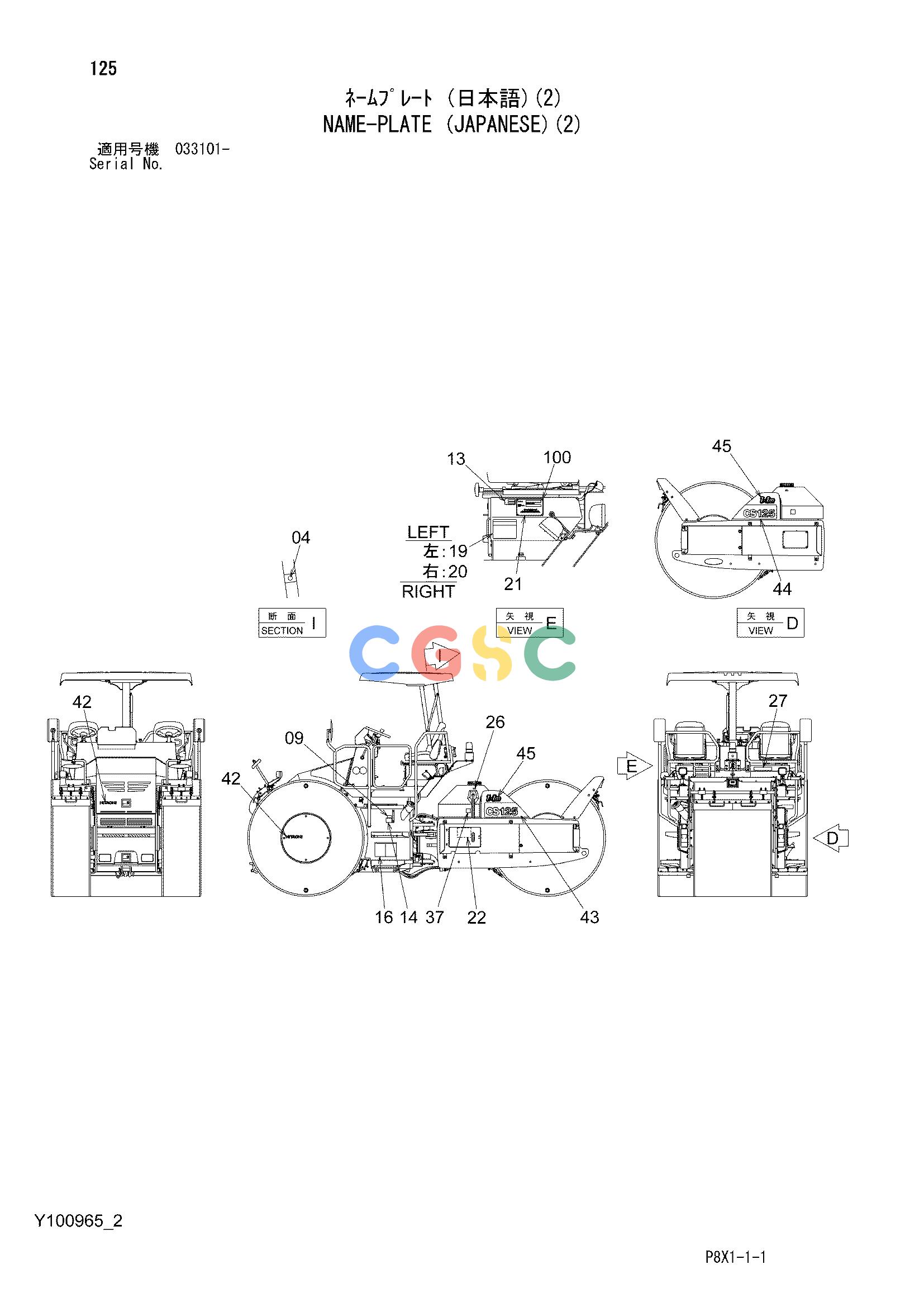

日立零件查询（CS125-3）NAME-PLATE (JAPANESE)(2) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
220 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 04. | 4087559 | [1] | PLATE | (DOOR STOPPER) |
| 09. | 4334429 | [1] | NAME-PLATE | (PROHIBITED TO USE FUEL) |
| 13. | 4628522 | [1] | NAME-PLATE | (MFG. LABEL) |
| 14. | 4660985 | [1] | NAME-PLATE | (DIESEL FUEL) |
| 16. | Y200544 | [1] | NAME-PLATE | (REPAIR TABLE) |
| 19. | Y300751 | [1] | NAME-PLATE | (GATE LOCK)(L) |
| 20. | Y300752 | [1] | NAME-PLATE | (GATE LOCK)(R) |
| 21. | +++++++ | [1] | NAME-PLATE | (MACHINE MFG.NO.) |
| 22. | Y302332 | [1] | DECAL | (CAUTION FOR SPRINKLING) |
| 26. | Y405047 | [2] | NAME-PLATE (670L) | |
| 27. | Y405048 | [1] | NAME-PLATE | (MAXIMUM PAYLOAD) |
| 37. | Y417493 | [2] | DECAL | (WATER) |
| 42. | Y405031 | [3] | DECAL | (NAME OF COMPANY) |
| 43. | Y200547 | [1] | NAME-PLATE | (NAME OF MACHINE:CS125) |
| 44. | Y200548 | [1] | NAME-PLATE | (NAME OF MACHINE:CS125) |
| 45. | Y302339 | [2] | NAME-PLATE | (1X1m) |
| 100. | M492564 | [4] | SCREW;DRIVE | |
