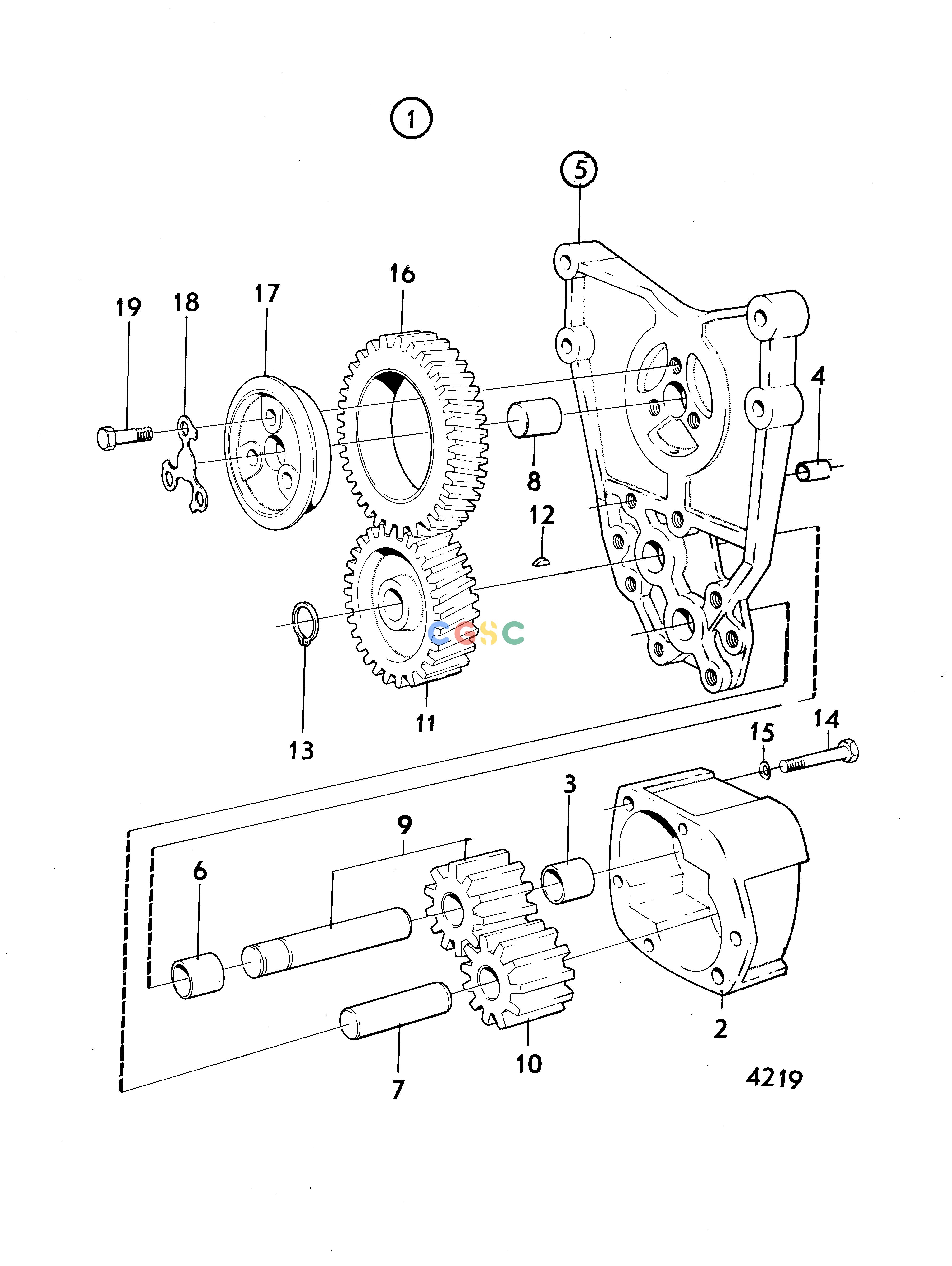

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCEngineOil PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
261 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
468023
|
[1] |
Oil pump
|
|
| 2. |
|
|
|
|
| 3. |
470234
|
[1] |
Bushing
|
(940359)
|
| 4. |
401146
|
[2] |
Guide sleeve
|
|
| 5. |
423042
|
[1] |
Bracket
|
|
| 6. |
470234
|
[1] |
Bushing
|
(940359)
|
| 7. |
|
|
|
|
| 8. |
191171
|
[1] |
Pin
|
|
| 9. |
|
|
|
|
| 10. |
|
|
|
|
| 11. |
422043
|
[1] |
Oil pump wheel
|
|
| 12. |
910115
|
[1] |
Woodruff key
|
|
| 13. |
914450
|
[2] |
Snap ring
|
|
| 14. |
955531
|
[2] |
Hexagon screw
|
|
| 15. |
941907
|
[2] |
Spring washer
|
|
| 16. |
422047
|
[1] |
Gear
|
|
| 17. |
422313
|
[1] |
Bearing sleeve
|
|
| 18. |
422315
|
[1] |
Lock washer
|
|
| 19. |
940136
|
[3] |
Hexagon screw
|
|
| 19. |
275731
|
[1] |
Repair kit
|
(275571)
|
