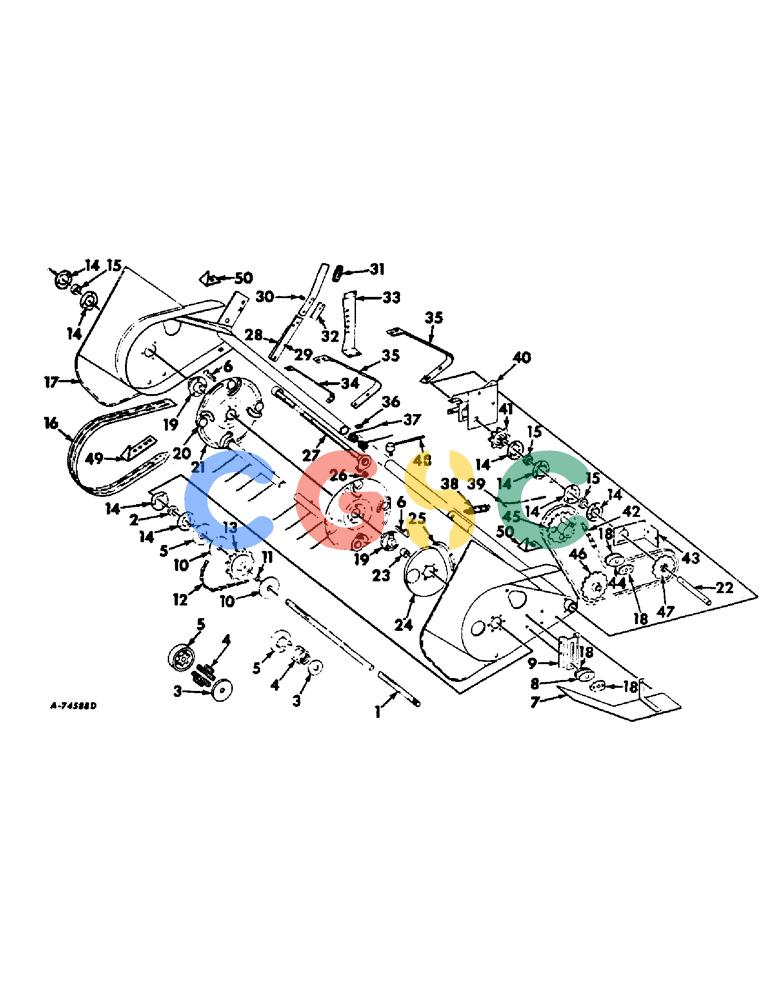

| 1. |
663332R2
|
[1] |
SHAFT
|
IH
pickup cyl drive, for 440 Baler, 430T Balers 012281 and up, 430W Balers 001779 and up Superseded by part number: 210558C1
|
| 2. |
662074R2
|
[1] |
SHAFT
|
IH
pickup cyl drive, for 430 Baler, 430T Balers 012280 and below, 430W Balers 001778 and below
|
| . . |
219760
|
[1] |
BACK-UP RING
|
IH
1-14 znd hex. jam Superseded by part number: 425-1516
|
| . . |
21788R1
|
[3] |
WASHER
|
IH
1-1/32 x 1-7/16 x 18 ga C-Z, (or as required) Superseded by part number: 591715R1
|
| . . |
21789R1
|
[2] |
WASHER
|
IH
1-1/32 x 1-1/4 x 16 ga C-Z, (or as required) Superseded by part number: 495-81065
|
| . . |
20529R1
|
[1] |
PIN,7/32" x 1 1/2", Slotted
|
IH
Superseded by part number: 70921452
|
| 2. |
155264C91
|
[1] |
BALL BEARING,25.43mm ID x 52.09mm OD x 16mm W
|
IH
ASSY, pickup cylinder LH
|
| 3. |
662356R1
|
[1] |
DISC
|
IH
WASHER, slip clutch retainer, 430T Balers 50 in. thru 006404, 430W Balers 50 in. thru 001242, 440T Balers 50 in. thru 002548, 440W Balers 50 in. thru 001403 Superseded by part number: 202090C1
|
| 3. |
202090C1
|
[1] |
WASHER
|
IH
slip clutch retainer, 430T Balers 006405 and up, 430W Balers 001243 and up, 440T Balers 002549 and up, 440W Balers 001404 and up
|
| 4. |
U13661
|
[1] |
VALVE SPRING
|
IH
SPRING, pickup slip clutch, 430T Balers 50 in. thru 006404, 430W Balers 50 in. thru 001242, 440T Balers 50 in. thru 002548, 440W Balers 50 in. thru 001403
|
| 4. |
M1015
|
[6] |
SPRING
|
IH
pickup slip clutch, 430T Balers 006405 and up, 430W Balers 001243 and up, 430T Balers 002549 and up, 440W Balers 001404 and up
|
| 5. |
662026R4
|
[2] |
HUB
|
IH
pickup slip clutch, 430T Balers 50 in. thru 006404, 430W Balers 50 in. thru 001242, 440T Balers 50 in. thru 002548, 440W Balers 50 in. thru 001403
|
| 5. |
202399C1
|
[2] |
HUB
|
IH
pickup slip clutch, 430T Balers 006405 and up, 430W Balers 001243 and up, 440T Balers 002549 and up, 440W Balers 001404 and up
|
| . . |
576483R1
|
[2] |
LOCK PIN,5/16" x 1 1/2", Slotted
|
IH
Pin, 5/16" x 1 1/2", Slotted Superseded by part number: 86624089
|
| 6. |
Q3931
|
[2] |
KEY,Gib, 5/16" Sq x 1 7/8"
|
IH
5/16 x 1-7/8 sq- tapered
|
| 7. |
662297R91
|
[1] |
SHIELD
|
IH
ASSY, pickup drive
|
| . . |
19416R1
|
[1] |
BOLT
|
IH
5/16 x 3/4 C-Z sq-nk crg Superseded by part number: 598802R1
|
| . . |
120376
|
[1] |
NUT,5/16"-18, G5
|
IH
Superseded by part number: 9635082
|
| . . |
80681
|
[1] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| . . |
21142R1
|
[1] |
BOLT, 7/16 x 3/4 znd hex-hd mach
|
|
| . . |
120383
|
[1] |
LOCK WASHER,Helical Spring, 7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| 8. |
668147R1
|
[1] |
BLOCK
|
IH
tightener Superseded by part number: 667459R1
|
| 9. |
667718R1
|
[1] |
BRACKET
|
IH
pickup idler
|
| . . |
12872R1
|
[2] |
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
|
IH
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd Superseded by part number: 598803R1
|
| . . |
16897R1
|
[2] |
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 5/16 x 3/4 C-Z sq-nk crg Superseded by part number: 412-512
|
| 10. |
662291R1
|
[2] |
LINING
|
IH
FACING, pickup drive clutch Superseded by part number: 662291R2
|
| 11. |
662079R1
|
[1] |
BUSHING
|
IH
pickup slip clutch sprocket
|
| 12. |
CA320
|
[1] |
SPARE PART
|
IH
CHAIN, pickup drive, No. 55 stl chain, 28 links Superseded by part number: CS55
|
| 13. |
662023R1
|
[1] |
DRIVE SPROCKET
|
IH
SPROCKET, pickup slip clutch
|
| 14. |
671682R1
|
[8] |
NO LONGER SERVICED
|
IH
FLANGE, pickup pivot drive brg Superseded by part number: 3101582R1
|
| 15. |
671681R91
|
[3] |
BEARING ASSY,25.43mm ID x 52.09mm OD x 16mm W
|
IH
ASSY, pickup cylinder RH
|
| 16. |
662316R2
|
[13] |
STRIPPER
|
IH
pickup
|
| . . |
18673R1
|
[26] |
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
|
IH
BOLT, 5/16 x 1/2 C-Z sq-nk crg Superseded by part number: 411-58
|
| 17. |
674149R1
|
[1] |
|
P
FRAME ASSY, pickup, for 430 Balers, 430T Balers 0012280 and below, 430W Balers 001778 and below
|
| 17. |
674152R1
|
[1] |
|
P
FRAME ASSY, pickup, for 440 Balers, 430T Balers 012281 and up, 430W Balers 001779 and up
|
| . . |
648002
|
[2] |
1/8" x 3/4"
|
KNIFE
|
| . . |
23821R1
|
[2] |
HEADED PIN,5/16" x 2.609"
|
IH
PIN, HEADED, 5/16" x 2.609" Superseded by part number: 439-5544
|
| 18. |
673666R1
|
[4] |
CAP
|
IH
REINFORCEMENT, block tightener
|
| . . |
21776R1
|
[1] |
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/4", Gr 2
|
IH
BOLT, 5/8 x 3-1/4 C-Z sq-nk crg Superseded by part number: 280563
|
| . . |
18723R1
|
[1] |
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 3/4", Gr 2
|
IH
BOLT, 5/8 x 2-3/4 C-Z sq-nk crg Superseded by part number: 411-1044
|
| . . |
121358
|
[2] |
YOKE
|
NNA
5/8-18 C-Z hex. Superseded by part number: 425-1110, 425-1110, NLS
|
| . . |
492-11062
|
[2] |
BEARING WASHER,5/8"
|
CAS
WASHER, LOCK, 5/8" Superseded by part number: 86729275
|
| . . |
608701R1
|
[2] |
WASHER
|
IH
21/32 x 1-1/4 x 16 ga C-Z Superseded by part number: 86624155
|
| . . |
21791R1
|
[2] |
WASHER
|
IH
31/32 x 1-1/2 x 9 ga Superseded by part number: 495-81064
|
| 19. |
659942R1
|
[2] |
HUB
|
IH
pickup cyl driving
|
| . . |
378484R1
|
[2] |
HEADED PIN,5/16" x 2"
|
IH
PIN, 5/16 x 2 znp std-hd Superseded by part number: 439-5532
|
| 20. |
659437R1
|
[1] |
BUSHING
|
IH
pickup cyl end, 10 for 440 Balers, 8 for 430 Balers
|
| . . |
18474R1
|
[6] |
BOLT,Hex, 5/16" - 18 x 1", Gr 2
|
IH
5/16 x 1 C-Z hex-hd mach Superseded by part number: 424-516
|
| 21. |
667705R11
|
[1] |
END
|
IH
W/BUSHING, pickup cyl, 2 for 430 Balers
|
| 21. |
495489R31
|
[1] |
DISC
|
IH
END W/BUSHING, pickup cyl, 2 for 440 Balers
|
| 22. |
667713R2
|
[1] |
SHAFT
|
IH
pickup pivot drive
|
| . . |
551855R1
|
[1] |
WASHER
|
IH
1-1/32 x 1-1/4 x 16 ga Superseded by part number: 21789R1
|
| 23. |
661036R1
|
[1] |
SPACER
|
IH
pickup cyl shaft inner
|
| 24. |
662317R2
|
[1] |
CAM
|
IH
pickup tooth control
|
| 25. |
662318R11
|
[1] |
GUIDE
|
IH
ASSY, tooth bar roller
|
| . . |
133822
|
[1] |
COVER,Cross Flat Hd, 5/16"-18 x 5/8"
|
PA
SCREW, Cross Flat Hd, 5/16"-18 x 5/8"
|
| . . |
134512
|
[1] |
LATCH,8.28mm ID x 15.21mm OD
|
IH
5/16 C-Z ext-tooth lock
|
| 26. |
ST543
|
[1] |
BALL BEARING,15mm ID x 35mm OD x 11mm W
|
IH
BEARING ASSY, pickup cyl tine control, 5 for 440 Balers, 4 for 430 Balers
|
| . . |
423-1240
|
[1] |
PIN, 3/16 x 2-1/2 C-Z cot., 5 for 440 Balers, 4 for 430 Balers (replaces 137273 )
|
|
| . . |
21787R1
|
[1] |
WASHER
|
IH
2-1/16 x 2-5/16 x 16 ga C-Z, 16 or as required Superseded by part number: 86625259
|
| 27. |
663330R92
|
[1] |
BAR
|
IH
ASSY, pickup tooth, 5 for 440 Balers, 4 for 430 Balers, 430T Balers 012281 and up, 430W Balers 001779 and up
|
| 27. |
495279R94
|
[1] |
CARRIER
|
IH
BAR ASSY, pickup tooth, 4 for 430 Balers, 430T Balers 012280 and below, 430W Balers 01778 and below
|
| 28. |
674156R1
|
[1] |
SUPPORT
|
CAS
STRAP, pickup lever
|
| . . |
22144R1
|
[2] |
RIVET
|
IH
3/8 x 1 C-Z small b-hd Superseded by part number: 45-616
|
| . . |
663922R1
|
[1] |
PIN,5/8" x 1 3/8"
|
IH
5/8 x 1-3/8 C-Z std-hd Superseded by part number: 21808R1
|
| . . |
187988
|
[1] |
COTTER PIN,3/16" x 1 1/4"
|
IH
PIN, SPLIT (COTTER), 3/16" x 1 1/4" Superseded by part number: 87398
|
| 29. |
674154R92
|
[1] |
LEVER
|
IH
ASSY, pickup
|
| 30. |
18489D
|
[1] |
SPRING
|
IH
pickup lever clip
|
| . . |
22753R1
|
[1] |
HEADED PIN,5/16" x 2 3/16"
|
IH
PIN, HEADED, 5/16" x 2 3/16"
|
| . . |
619855R1
|
[1] |
WASHER
|
IH
11/32 x 3/4 x 16 ga C-Z Superseded by part number: 86637953
|
| 31. |
662340R1
|
[1] |
GRIP
|
IH
lever, replaces 938885R1
|
| 32. |
662506R1
|
[1] |
CLIP
|
IH
pickup lever
|
| 33. |
674153R1
|
[1] |
SUPPORT
|
IH
QUADRANT, pickup lever
|
| . . |
19897R1
|
[2] |
BOLT, 5/16 x 3/4 C-Z sq-nk crg
|
|
| . . |
142619H
|
[2] |
WASHER
|
IH
13/32 x 3/4 x 11 ga C-Z Superseded by part number: 86624144
|
| 34. |
674160R1
|
[13] |
SUPPORT
|
IH
BRACE, pickup stripper
|
| . . |
18784R1
|
[13] |
BOLT,Hex, 3/8"-16 x 2 3/4", G2
|
IH
3/8 x 2-3/4 znd hex-hd mach Superseded by part number: 88444
|
| . . |
120377
|
[13] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
120382
|
[13] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 35. |
201746C1
|
[13] |
|
P
SUPPORT, pickup stripper, special, used w/rubber pickup tines, 1970 and up
|
| 35. |
674159R1
|
[13] |
SUPPORT
|
IH
pickup stripper
|
| 36. |
27513K
|
[1] |
CUP WASHER
|
IH
WASHER, pickup cyl spring tooth, 35 for 440 Balers, 28 for 430 Balers
|
| . . |
938017R1
|
[1] |
FLANGE NUT,Flg, USR, 5/16"-18
|
IH
5/16-18 znd hex lock, 35 for 440 Balers, 28 for 430 Balers Superseded by part number: 145458
|
| 37. |
MA74528
|
[1] |
SPRING
|
IH
pickup tooth, 35 for 440 Balers, 28 for 430 Balers
|
| 38. |
MA731
|
[1] |
SPRING
|
IH
pickup balance
|
| 39. |
674158R1
|
[1] |
BOLT,3/8" - 16 x 14.6"
|
IH
balance spring
|
| . . |
21741R1
|
[1] |
WASHER
|
IH
13/32 x 7/8 x 11 ga C-Z Superseded by part number: 495-81133
|
| 40. |
674177R1
|
[1] |
SUPPORT
|
IH
BRACKET ASSY, pickup drive shaft pivot RH
|
| . . |
18795R1
|
[4] |
BOLT,Hex, 7/16"-14 x 1 1/4", G2
|
IH
7/16 x 1-1/4 C-Z hex-hd mach Superseded by part number: 179860
|
| . . |
NLS
|
[4] |
NO LONGER SERVICED
|
BAS
NUT, 7/16-14 C-Z hex
|
| . . |
607891R1
|
[4] |
WASHER
|
IH
15/32 x 1 x 16 ga C-Z Superseded by part number: 495-81158
|
| 41. |
662024R2
|
[1] |
DRIVE SPROCKET
|
IH
SPROCKET, pickup pivot drive shaft
|
| . . |
21651R1
|
[1] |
LOCK PIN,5/16" x 2", Slotted
|
IH
Pin, 5/16" x 2", Slotted
|
| . . |
22004R1
|
[1] |
LOCK PIN,3/16" x 2", Slotted
|
IH
Pin, 3/16" x 2", Slotted Superseded by part number: 438-11232
|
| 43. |
667717R1
|
[1] |
BRACKET
|
IH
pickup pivot drive shaft LH
|
| . . |
18794R1
|
[2] |
BOLT,Hex, 7/16" - 14 x 1", Gr 2
|
IH
7/16 x 1 C-Z hex-hd mach Superseded by part number: 9706729
|
| . . |
271501
|
[2] |
SOCKET
|
NNA
NUT, 7/16-14 C-Z hex.
|
| 44. |
667459R1
|
[1] |
BLOCK
|
IH
tightener
|
| 45. |
662025R1
|
[1] |
DRIVE SPROCKET
|
IH
SPROCKET, pickup drive
|
| . . |
18786R1
|
[1] |
BOLT,Hex, 3/8"-16 x 3 1/2", G2
|
IH
3/8 x 3-1/2 znd hex-hd mach Superseded by part number: 186283
|
| 46. |
582415R91
|
[1] |
DRIVE SPROCKET,9T
|
IH
SPROCKET ASSY, pickup drive idler, service for 180193C91, replaces 936047R91
|
| . . |
18828R1
|
[1] |
BOLT,Hex, 5/8"-11 x 4", G5
|
IH
5/8 x 4 C-Z hex-hd mach Superseded by part number: 424-1064
|
| . . |
280374
|
[1] |
NUT,Hex, 5/8" - 11, Gr 5
|
NH
5/8-11 C-Z hex.
|
| . . |
21782R1
|
[1] |
WASHER
|
IH
21/32 x 1-1/2 x 16 ga C-Z Superseded by part number: 87613191
|
| . . |
589068R1
|
[4] |
WASHER
|
IH
21/32 x 1-1/4 x 11 ga C-Z, (or as required) Superseded by part number: 495-51066
|
| 47. |
662003R2
|
[1] |
DRIVE SPROCKET
|
IH
SPROCKET, pickup pivot driver
|
| . . |
21825R1
|
[1] |
LOCK PIN,5/16" x 1 3/4", Slotted
|
IH
Pin, 5/16" x 1 3/4", Slotted Superseded by part number: 438-12028
|
| . . |
22969R1
|
[1] |
LOCK PIN,3/16" x 1 3/4", Slotted
|
IH
Pin, 3/16" x 1 3/4", Slotted Superseded by part number: 438-11228
|
| 48. |
200499C1
|
[1] |
FINGER
|
IH
TINE, rubber pickup, special, 56 for 430 Baler, 70 for 440 Baler
|
| 49. |
201700C1
|
[1] |
|
P
DEFLECTOR, tine, special, used w/rubber pickup tines thru 1969, 11 for 430 Baler, 13 for 440 Baler
|
| 50. |
201738C1
|
[2] |
RETAINER
|
CAS
end tine, special, used w/rubber pickup tines
|
