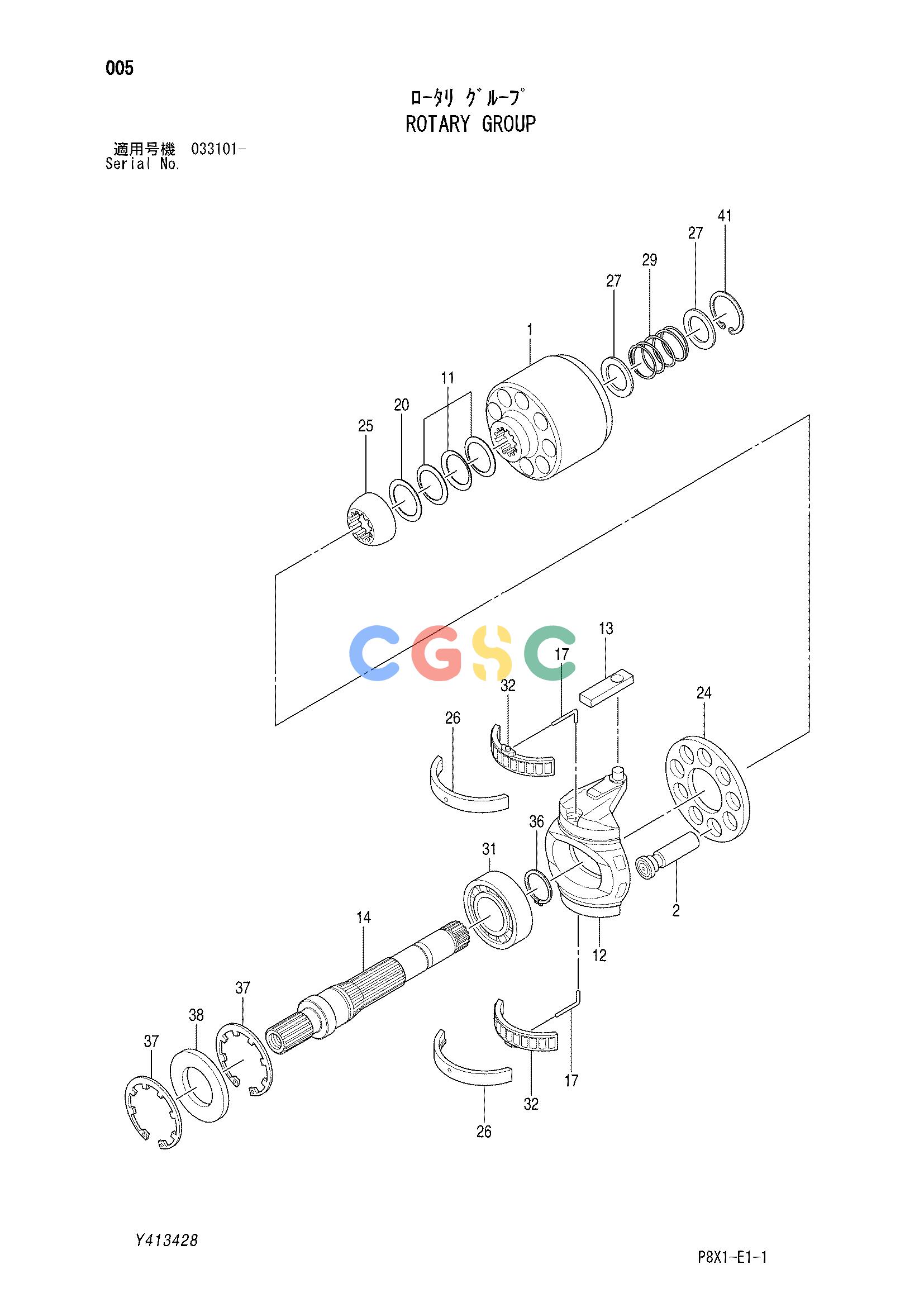

日立零件查询（CS125-3）ROTARY GROUP Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
263 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | Y413428 | [1] | ROTARY GROUP | |
| 1. | Y413441 | [1] | BLOCK;CYL. | |
| 2. | Y408482 | [9] | PISTON | |
| 11. | Y408483 | [1] | SPRING;DISC | |
| 12. | Y408484 | [1] | HANGER | |
| 13. | Y408485 | [1] | GUIDE | |
| 14. | Y413442 | [1] | SHAFT | |
| 17. | Y408487 | [2] | PIN | |
| 20. | Y413443 | [1] | SHIM 1.2 | |
| 20. | Y413444 | [1] | SHIM 1.0 | |
| 20. | Y413445 | [1] | SHIM 0.8 | |
| 20. | Y413446 | [1] | SHIM 0.6 | |
| 24. | Y413447 | [1] | RETAINER | |
| 25. | Y413448 | [1] | GUIDE | |
| 26. | Y413449 | [1] | LINER;BEERING | |
| 27. | Y408489 | [2] | SHIM | |
| 29. | Y408490 | [1] | SPRING | |
| 31. | Y408491 | [1] | BRG. | |
| 32. | Y408492 | [1] | BRG. | |
| 36. | Y408493 | [1] | RING;RETAINING | |
| 37. | Y408494 | [2] | RING;RETAINING | |
| 38. | Y408552 | [1] | SEAL;OIL | |
| 41. | Y408495 | [1] | RING;RETAINING | |
