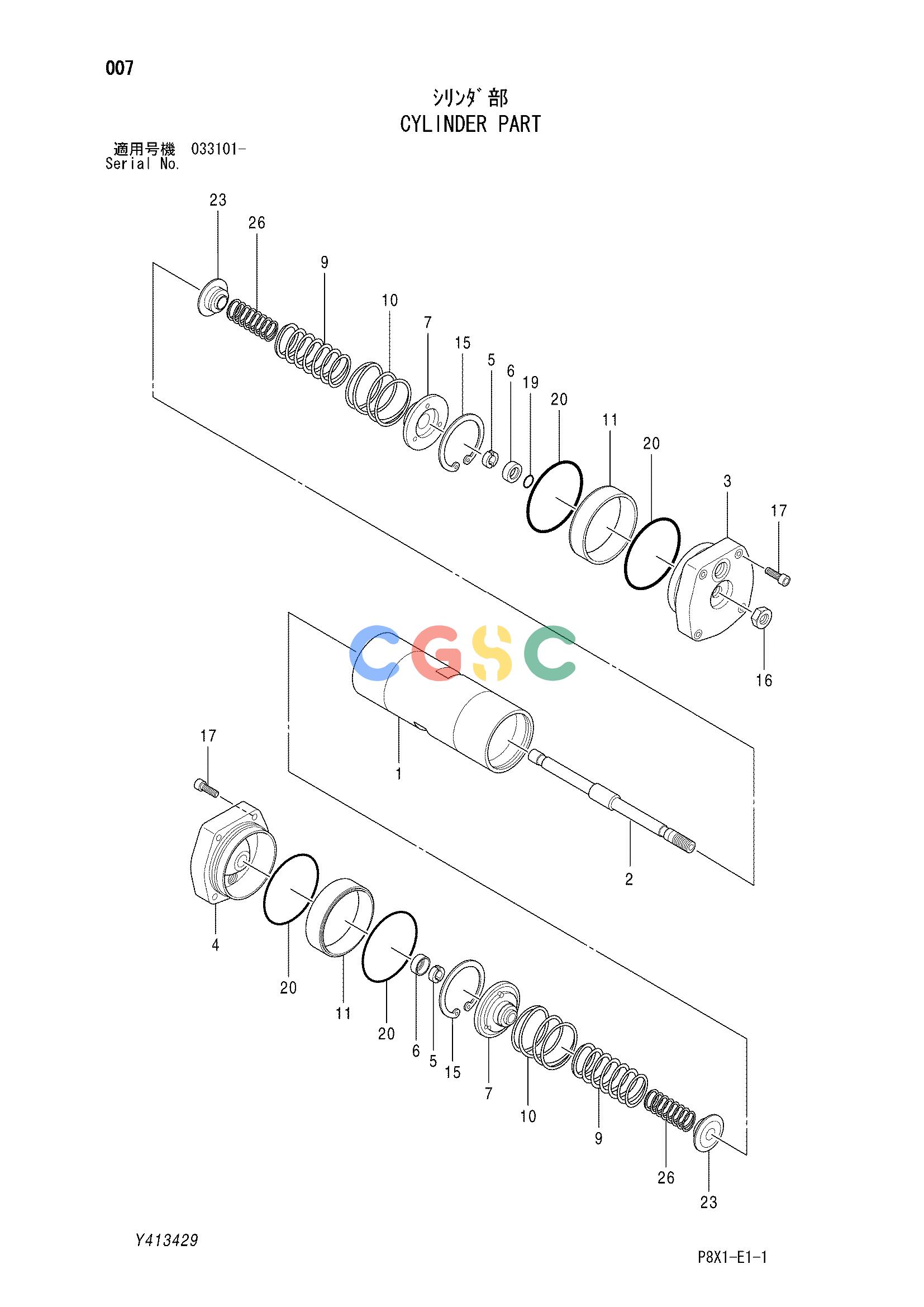

日立零件查询（CS125-3）CYLINDER PART Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
947 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | Y413429 | [1] | CYLINDER PART | |
| 1. | +++++++ | [1] | PISTON | |
| 2. | +++++++ | [1] | ROD | |
| 3. | Y413450 | [1] | COVER | |
| 4. | Y413451 | [1] | COVER | |
| 5. | +++++++ | [2] | RING 5.77 | |
| 5. | +++++++ | [1] | RING 5.82 | |
| 5. | +++++++ | [1] | RING 5.87 | |
| 5. | +++++++ | [1] | RING 5.92 | |
| 5. | +++++++ | [1] | RING 5.97 | |
| 5. | +++++++ | [1] | RING 6.02 | |
| 5. | +++++++ | [1] | RING 5.67 | |
| 5. | +++++++ | [1] | RING 5.72 | |
| 6. | Y408498 | [2] | GUIDE | |
| 7. | +++++++ | [2] | SEAT;SPRING | |
| 9. | +++++++ | [2] | SPRING | |
| 10. | +++++++ | [2] | SPRING | |
| 11. | Y408499 | [2] | BUSHING | |
| 15. | +++++++ | [2] | RING;RETAINING | |
| 16. | Y406882 | [1] | NUT | |
| 17. | 0626209 | [8] | BOLT;SOCKET | |
| 19. | Y406883 | [1] | O-RING | |
| 20. | Y408500 | [4] | O-RING | |
| 23. | +++++++ | [2] | SEAT;SPRING | |
| 26. | +++++++ | [2] | SPRING | |
