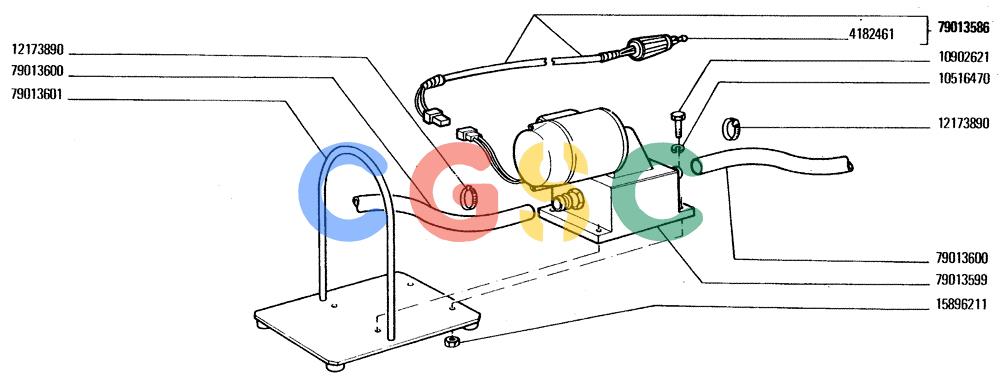

纽荷兰零件查询(FD20) - CRAWLER DOZER (Z1.01/A[002]) - ACCESSORIES New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
358 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 4182461. | 4182461 | [1] | ROLL PIN | MKTELECTRICAL PLUG Superseded by part number: 5108266 |
| 10516470. | 10516470 | [4] | LOCK WASHER | MODLOCKWASHER Superseded by part number: 17798174 |
| 10902621. | 10902621 | [4] | SCREW,Hex, M6 x 25mm, Cl 8.8 | TTFBOLT, Hex, M6 x 25, 8.8 Superseded by part number: 10902624 |
| 12173890. | 12173890 | [2] | HOSE CLIP | MODCOLLAR Superseded by part number: 514920 |
| 15896211. | 15896211 | [4] | NUT,M6, Cl 8 | JES Superseded by part number: 17037821 |
| 79013586. | 79013586 | [1] | ELECTRIC CABLE | LEC |
| 79013599. | 79013599 | [1] | FUEL PUMP | LECELECTROPUMP Superseded by part number: 72101451 |
| 79013600. | 79013600 | [1] | HOSE,25.00 mm ID x 6000.00 mm | LEC |
