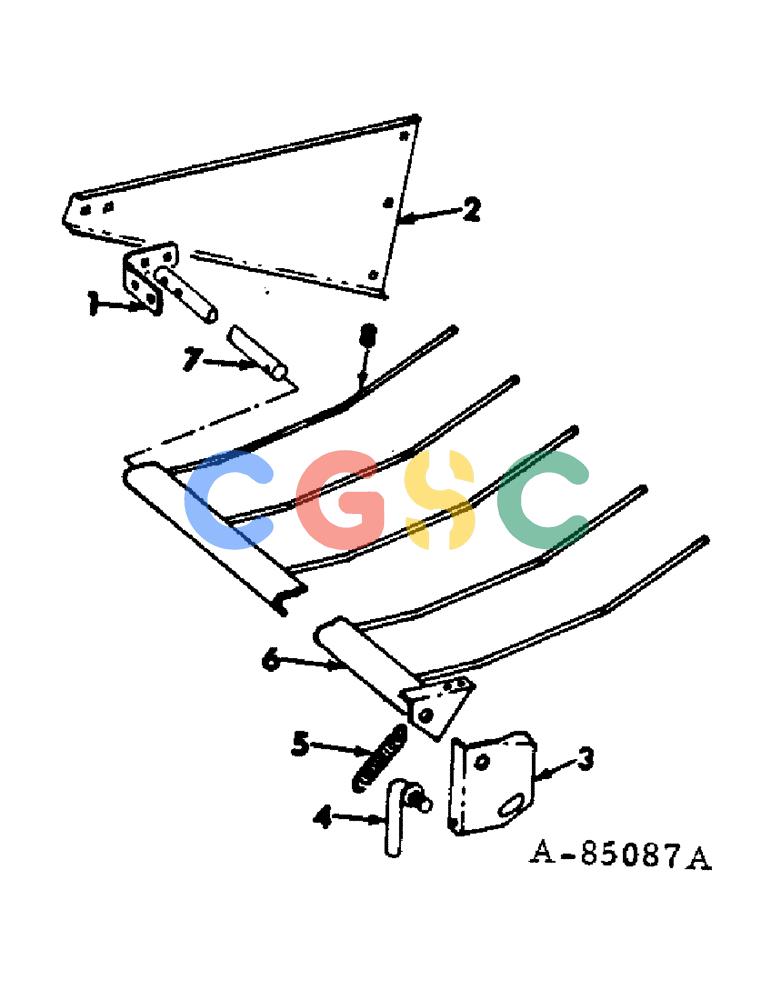

| 1. |
674169R1
|
[1] |
BRACKET
|
IH
cover tine
|
| . . |
18508R1
|
[2] |
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 3/8 x 3/4 C-Z sq-nk crg Superseded by part number: 86508748
|
| . . |
120377
|
[2] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
120382
|
[2] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 2. |
674168R1
|
[1] |
SUPPORT
|
IH
cover tine RH
|
| . . |
16897R1
|
[3] |
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 5/16 x 3/4 C-Z sq-nk crg Superseded by part number: 412-512
|
| . . |
120376
|
[3] |
NUT,5/16"-18, G5
|
IH
Superseded by part number: 9635082
|
| . . |
80681
|
[3] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 3. |
674172R1
|
[1] |
PLATE
|
IH
cover tine adjusting
|
| 4. |
674173R1
|
[1] |
HANDLE
|
IH
ASSY, cover tine adj
|
| . . |
575807R1
|
[1] |
WASHER
|
IH
13/32 x 1 x 11 ga Superseded by part number: 95-81086
|
| 5. |
PO91
|
[1] |
SPRING
|
IH
cover tine
|
| . . |
21220R1
|
[1] |
WASHER
|
IH
29/32 x 1-1/4 x 11 ga C-Z Superseded by part number: 495-81052
|
| . . |
668752R1
|
[1] |
WASHER
|
IH
29/32 x 1-1/4 x 16 ga C-Z Superseded by part number: 86624165
|
| 6. |
674166R1
|
[1] |
FINGER
|
IH
TINE ASSY, pickup cover, for 430 Baler, 430T 012280 and below, 430W 001778 and below
|
| 6. |
674161R1
|
[1] |
FINGER
|
IH
TINE ASSY, pickup cover, for 440 Baler, 430T 012281 and up, 430W 001779 and up
|
| 7. |
674171R1
|
[1] |
SPARE PART
|
IH
ARM, pickup cover, for 430 Balers, 430T 012280 and below, 430W 001778 and below Superseded by part number: 203182C1
|
| 7. |
674170R1
|
[1] |
TUBE,0.84" OD, 60.9" Length
|
IH
ARM, pickup cover, for 440 Balers, 430T 012281 and up, 430W 001779 and up
|
| . . |
18422R1
|
[2] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2
|
IH
BOLT, 3/8 x 1-3/4 C-Z sq-nk crg Superseded by part number: 411-628
|
| . . |
187988
|
[1] |
COTTER PIN,3/16" x 1 1/4"
|
IH
PIN, SPLIT (COTTER), 3/16" x 1 1/4" Superseded by part number: 87398
|
| 8. |
201590C1
|
[1] |
FINGER
|
IH
TINE, pickup cover, 7 for 440 Baler, 6 for 430 Baler
|
