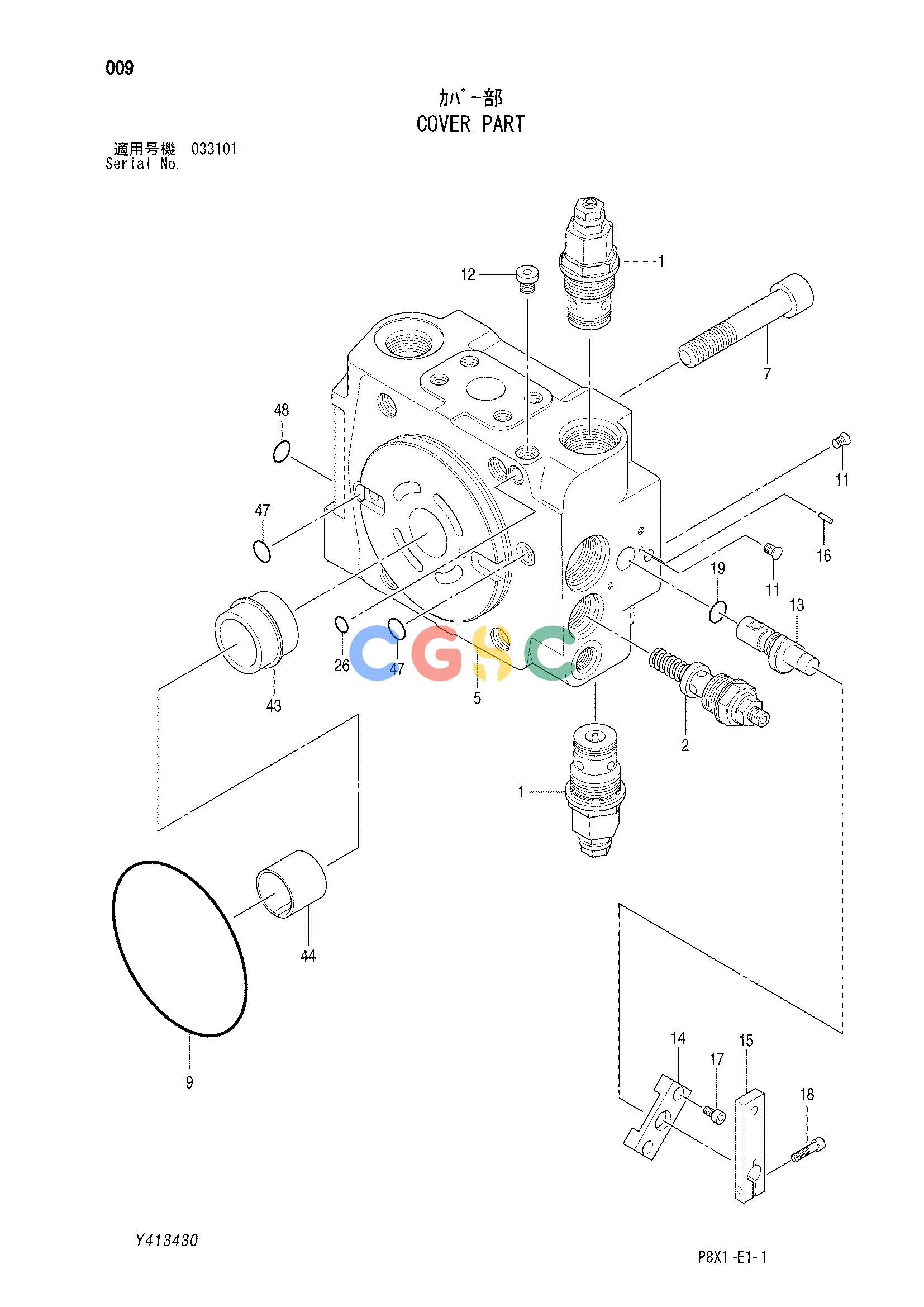

日立零件查询（CS125-3）COVER PART Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
910 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | Y413430 | [1] | COVER PART | |
| 1. | Y408501 | [2] | VALVE;RELIEF | |
| 2. | Y408502 | [1] | VALVE;RELIEF | |
| 5. | +++++++ | [1] | COVER | |
| 7. | Y408505 | [4] | BOLT;SOCKET | |
| 9. | Y408506 | [1] | O-RING | |
| 11. | +++++++ | [1] | PLUG | |
| 12. | 0214912 | [1] | PLUG | |
| 13. | Y412068 | [1] | SHAFT | |
| 14. | Y412069 | [1] | PLATE | |
| 15. | Y412070 | [1] | LEVER | |
| 16. | Y412071 | [1] | PIN;SPRING | |
| 17. | 0444304 | [2] | BOLT;SOCKET | |
| 18. | 0620307 | [1] | BOLT;SOCKET | |
| 19. | Y412072 | [1] | O-RING | |
| 26. | 0215215 | [1] | O-RING | |
| 43. | +++++++ | [1] | BUSHING | |
| 44. | +++++++ | [1] | METAL | |
| 47. | 0435216 | [2] | O-RING | |
| 48. | Y408546 | [1] | O-RING | |
