纽荷兰零件查询(FD255) - CRAWLER DOZER (N.A. VERSION) (7/95-) (0.043[02]) - CRANKCASE COVERS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
683 次

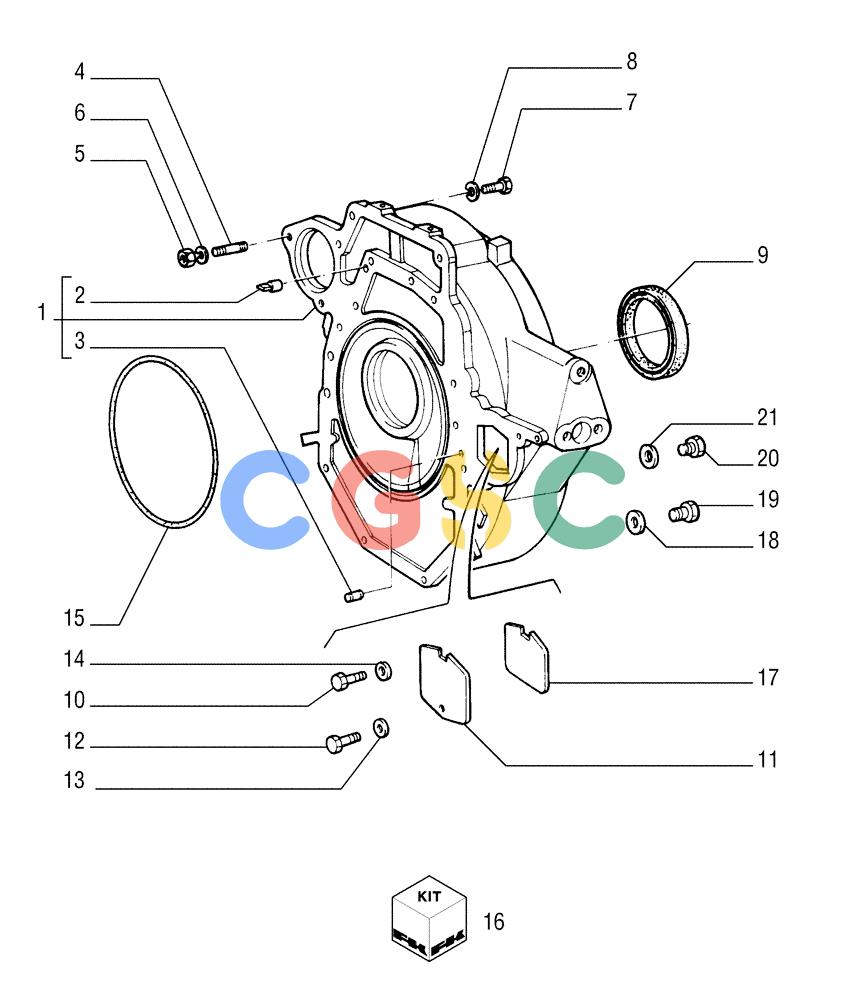

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 61319884 | [1] | COVER | LEC- ASSY |
| 2. | 61316846 | [1] | DOWEL | LEC |
| 3. | 61316847 | [1] | DOWEL | LEC |
| 4. | 11797421 | [3] | STUD | MKT14X1,5X20X35 |
| 6. | 11194174 | [3] | BELLEVILLE WASHER,Conical Spring, 15.00mm ID x 27.00mm OD x 3.00mm, 3.60mm, DAC | TTF |
| 7. | 11394331 | [12] | BOLT,Hex, M14 x 1.5 x 45, 8.8, Full Thd | IMO |
| 8. | 61229230 | [12] | WASHER | LEC28X14,5 |
| 9. | 40101961 | [1] | GASKET | LEC, Start Serial: D3747 Superseded by part number: 61583337 |
| 9. | 61583337 | [1] | SEAL | LEC, Serial Range: -C3747 |
| 10. | 61315660 | [1] | OPERATOR TIMING REF/IND | PAE Superseded by part number: NLS |
| 11. | 61584978 | [1] | COVER | LEC |
| 12. | 16043424 | [2] | SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd | TTF |
| 13. | 11193874 | [2] | BELLEVILLE WASHER,8.4mm ID x 16.00mm OD x 1.4mm, 1.85mm, Cl 8.8 | TTF |
| 14. | 12638501 | [1] | WASHER,8.15mm ID x 15mm OD x 1.5mm Thk | TOR Superseded by part number: 17094814 |
| 15. | 14484081 | [1] | O-RING,-378, Cl 7, 10.475" ID x .210" Thk | LEC5,33X266,1 |
| 16. | 1940142 | [1] | ENGINE GASKET KIT | LEC |
| 17. | 61319063 | [1] | GASKET | LEC |
| 18. | 10296260 | [1] | SEAL,28.4mm ID x 36mm OD x 1.5mm Thk | TTF |
| 19. | 10305414 | [1] | PLUG | JES28 |
| 20. | 10300711 | [1] | PLUG,M16 x 1.5 x 14, Cl5.8 | BAS16X1,5X9 Superseded by part number: 16992415 |
| 21. | 4858609 | [1] | O-RING | TTF16X22X1,5 |
| 5. | 12164021 | [3] | NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND | TTF Superseded by part number: |
