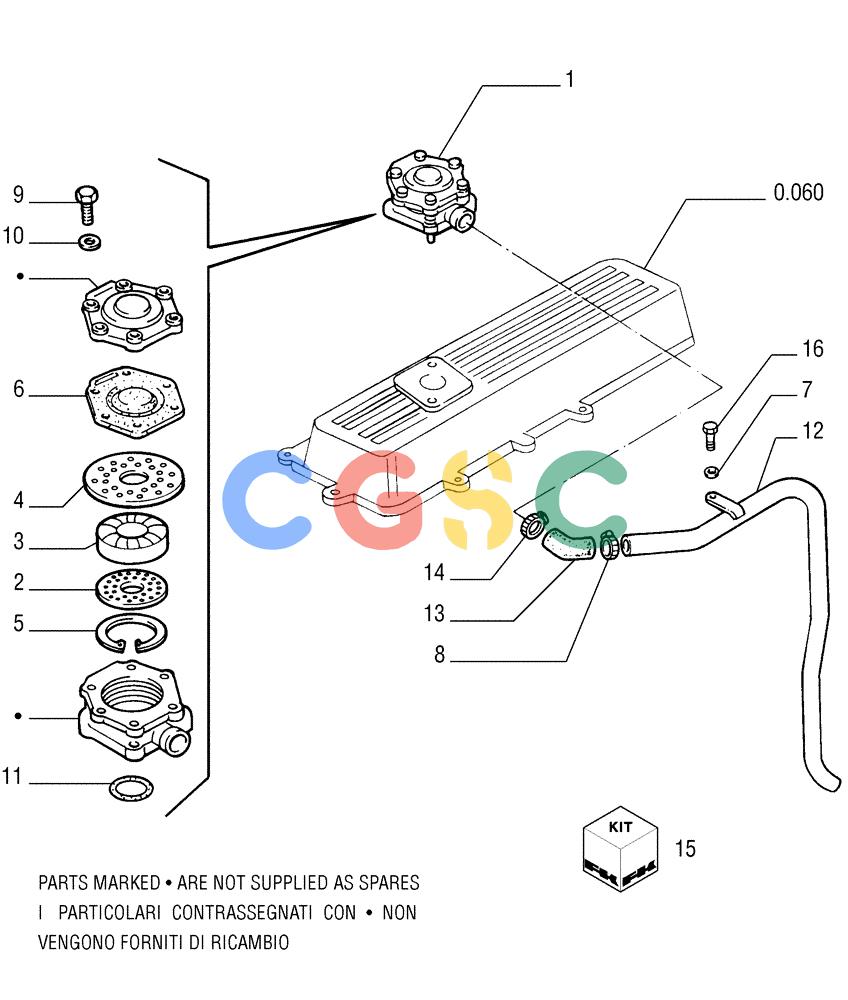

纽荷兰零件查询(FD255) - CRAWLER DOZER (N.A. VERSION) (7/95-) (0.045[01]) - BREATHER - ENGINE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
316 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 61320347 | [1] | BREATHER | ZED- ASSY |
| 2. | 4771081 | [1] | BASE PLATE | LEC |
| 3. | 4771079 | [1] | AIR FILTER | LEC |
| 4. | 4771080 | [1] | BASE PLATE | LEC |
| 5. | 11062176 | [1] | CIRCLIP,M85, Int | TTF Superseded by part number: 370021 |
| 6. | 61320345 | [1] | GASKET | ZED |
| 7. | 11190774 | [1] | BELLEVILLE WASHER,13.00mm ID x 24.00mm OD x 2.80mm, 3.30mm, Cl 8.8, DAC | TTF |
| 8. | 98463348 | [1] | HOSE CLIP | LEC22,5-30 Superseded by part number: 18088492 |
| 9. | 10902824 | [6] | BOLT,Hex, M6 x 30mm, Cl 8.8 | TTF |
| 10. | 14496404 | [6] | WASHER,M6 x 12 x 2 Thk | TTF Superseded by part number: 17094724 |
| 11. | 14464281 | [1] | O-RING,1.734" ID x 0.139" Width | MKT3,53X44,04 |
| 12. | 61317572 | [1] | RIGID TUBE | LEC |
| 13. | 61321189 | [1] | HOSE | LEC90¡ |
| 14. | 98463349 | [1] | HOSE CLIP | LEC32-40 Superseded by part number: 18088692 |
| 15. | LEC1940141 | [1] | ENGINE TOP GASKETS KIT | LEC |
| 15. | 1940142 | [1] | ENGINE GASKET KIT | LEC |
| 16. | 15540221 | [1] | BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd | TTF Superseded by part number: 15540521 |
