凯斯零件查询(430) - INTERNATIONAL HARVESTER RECTANGULAR BALER (NORTH AMERICA) (1/70-12/78) (E-24) - PLUNGER CENTER FILLER PACKAGE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
287 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
202922C91
|
[1] |
PACKAGE
|
IH
PLUNGER CENTER FILLER SERVICE PACKAGE CONSISTS OF
|

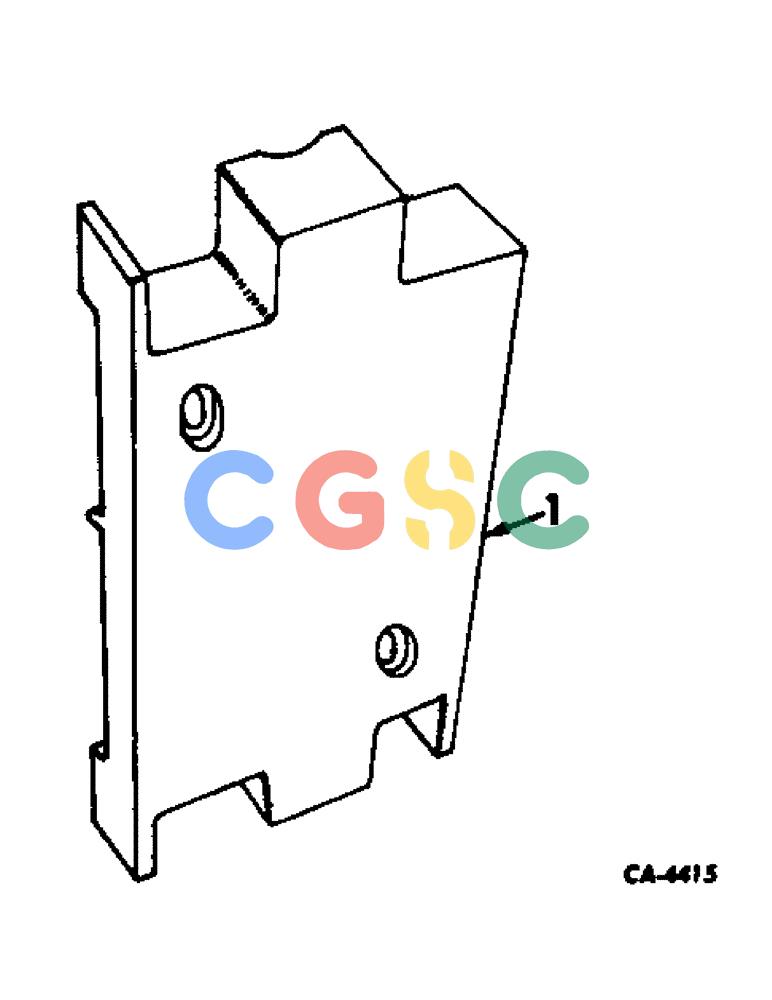

| 1. |
202914C1
|
[1] |
FILLER
|
IH
plunger center Superseded by part number: 202922C91
|
| . . |
180132
|
[1] |
BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5
|
IH
SCREW, 3/8-16 x 2-1/4 znd hex-hd cap Superseded by part number: 113-213
|
| . . |
120377
|
[1] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
120382
|
[1] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| . . |
469668R1
|
[1] |
WASHER
|
IH
13/32 x 3/4 x 16 ga C-Z Superseded by part number: 86632580
|
| . . |
180183
|
[1] |
BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5
|
IH
SCREW, 1/2-13 x 2-1/4 znd hex-hd cap Superseded by part number: 113-441
|
| . . |
120378
|
[1] |
NUT,Hex, 1/2" - 13, Gr 5
|
IH
NUT, 1/2-16 znd hex Superseded by part number: 280431
|
| 1. |
120384
|
[1] |
WASHER,1/2"
|
IH
LOCK, 1/2" Superseded by part number: 116121
|
| . . |
20869R1
|
[1] |
WASHER
|
IH
17/32 x 7/8 x 16 ga C-Z Superseded by part number: 86622500
|
