| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

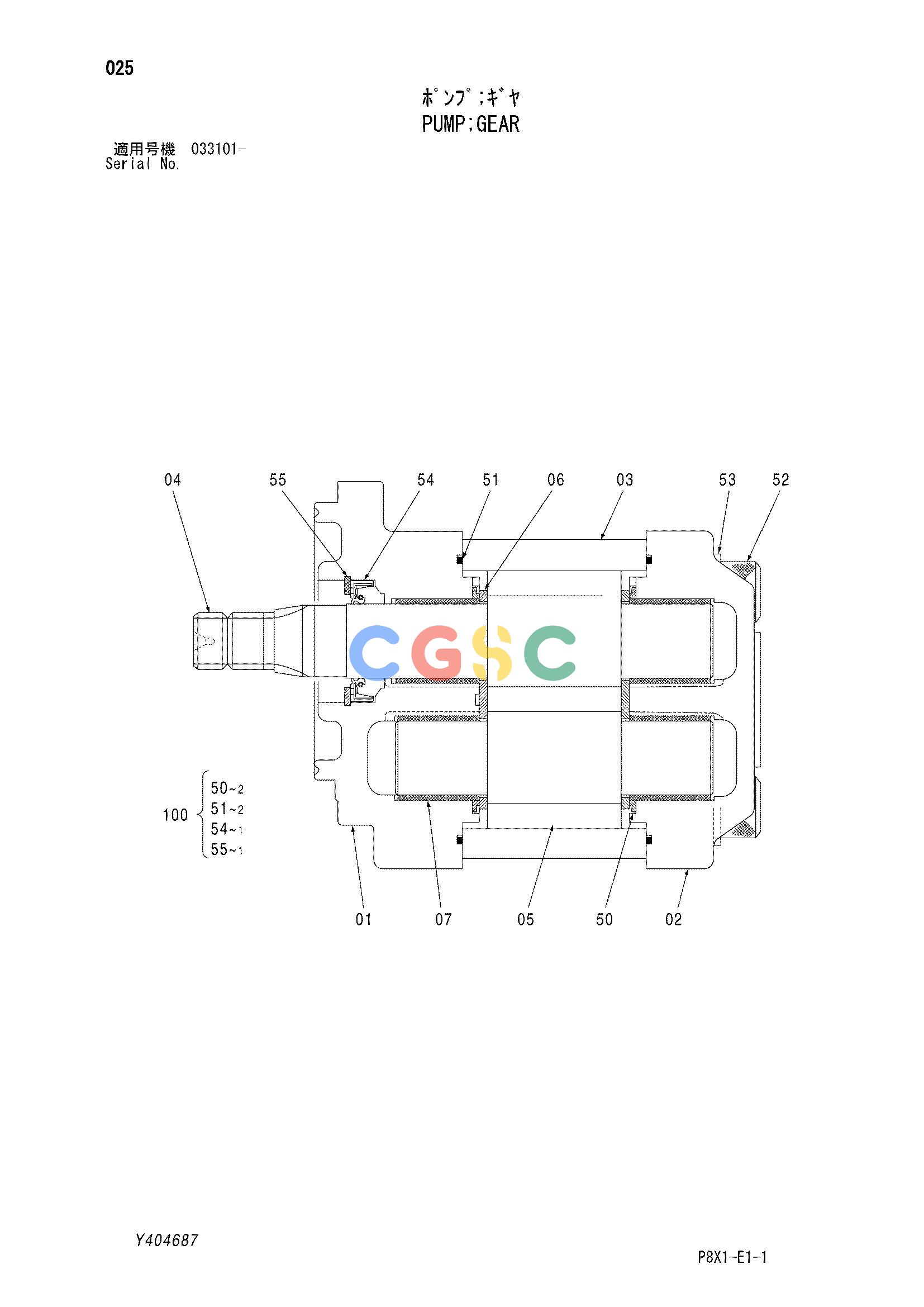

| Y404687 | [1] | PUMP;GEAR | ||
| 01. | +++++++ | [1] | COVER;FRONT | |
| 02. | +++++++ | [1] | COVER;REAR | |
| 03. | +++++++ | [1] | BODY | |
| 04. | +++++++ | [1] | GEAR;DRIVE | |
| 05. | +++++++ | [1] | GEAR;DRIVEN | |
| 06. | +++++++ | [2] | PLATE | |
| 07. | +++++++ | [4] | BUSHING | |
| 50. | Y408570 | [2] | GASKET | |
| 51. | Y408571 | [2] | GASKET | |
| 52. | +++++++ | [4] | BOLT;SOCKET | |
| 53. | +++++++ | [4] | WASHER | |
| 54. | Y408574 | [1] | SEAL;OIL | |
| 55. | Y408575 | [1] | RING;RETAINING | |
| 100. | Y413727 | [1] | KIT;SEAL |
