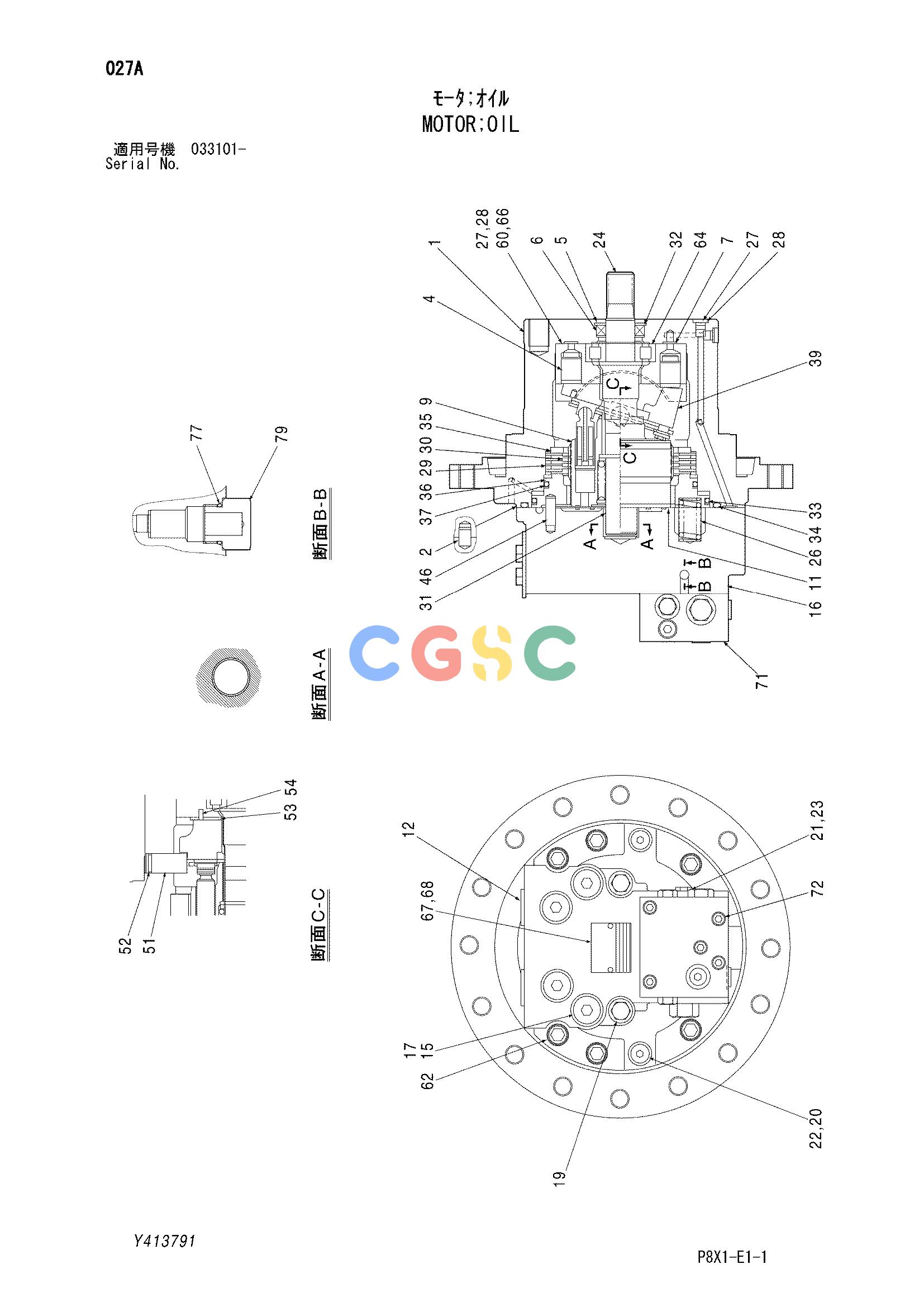

日立零件查询（CS125-3）MOTOR;OIL Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
431 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | Y413791 | [1] | MOTOR;OIL | |
| 1. | +++++++ | [1] | HOUSING | |
| 2. | 0129602 | [2] | PIN | |
| 4. | Y408093 | [2] | PISTON | |
| 5. | Y408094 | [1] | RING;RETAINING | |
| 6. | Y408095 | [1] | SEAL;OIL | |
| 7. | Y408096 | [7] | O-RING | |
| 9. | Y408097 | [1] | BLOCK;CYL. | |
| 11. | Y408098 | [1] | PLATE;VALVE | |
| 12. | Y413792 | [2] | PLUG | |
| 15. | Y408099 | [4] | PLUG | |
| 16. | +++++++ | [1] | CAP | |
| 17. | Y408100 | [4] | O-RING | |
| 19. | 4260846 | [2] | PLUG | |
| 20. | Y408101 | [2] | PLUG | |
| 21. | Y408102 | [1] | PLUG | |
| 22. | Y408103 | [2] | O-RING | |
| 23. | Y408104 | [1] | O-RING | |
| 24. | Y408105 | [1] | SHAFT | |
| 26. | Y408106 | [8] | SPRING | |
| 27. | 4260848 | [7] | PLUG | |
| 28. | Y408107 | [7] | O-RING | |
| 29. | Y408108 | [4] | PLATE | |
| 30. | Y408109 | [3] | PLATE | |
| 31. | Y408110 | [1] | BRG. | |
| 32. | Y408111 | [1] | RING;RETAINING | |
| 33. | Y408112 | [1] | O-RING | |
| 34. | Y408113 | [1] | O-RING | |
| 35. | Y408114 | [1] | STOPPER | |
| 36. | Y413467 | [1] | PISTON | |
| 37. | Y408116 | [1] | O-RING | |
| 39. | Y413468 | [1] | PLATE | |
| 46. | Y408118 | [2] | PIN | |
| 51. | Y408119 | [2] | ROLLER | |
| 52. | Y408120 | [2] | O-RING | |
| 53. | Y408121 | [2] | BRG. | |
| 54. | Y408122 | [2] | PIN;SPRING | |
| 60. | Y408123 | [1] | HOLDER | |
| 62. | 0619004 | [6] | SCREW | |
| 64. | Y408124 | [1] | BRG.;ROL. | |
| 66. | Y408125 | [4] | BOLT | |
| 67. | +++++++ | [1] | NAME-PLATE | |
| 68. | 4260808 | [2] | SCREW;DRIVE | |
| 71. | Y413469 | [1] | VALVE;SHUTTLE | |
| 72. | Y408127 | [4] | BOLT;SOCKET | |
| 77. | 0130308 | [1] | O-RING | |
| 79. | 4260852 | [1] | PLUG | |
