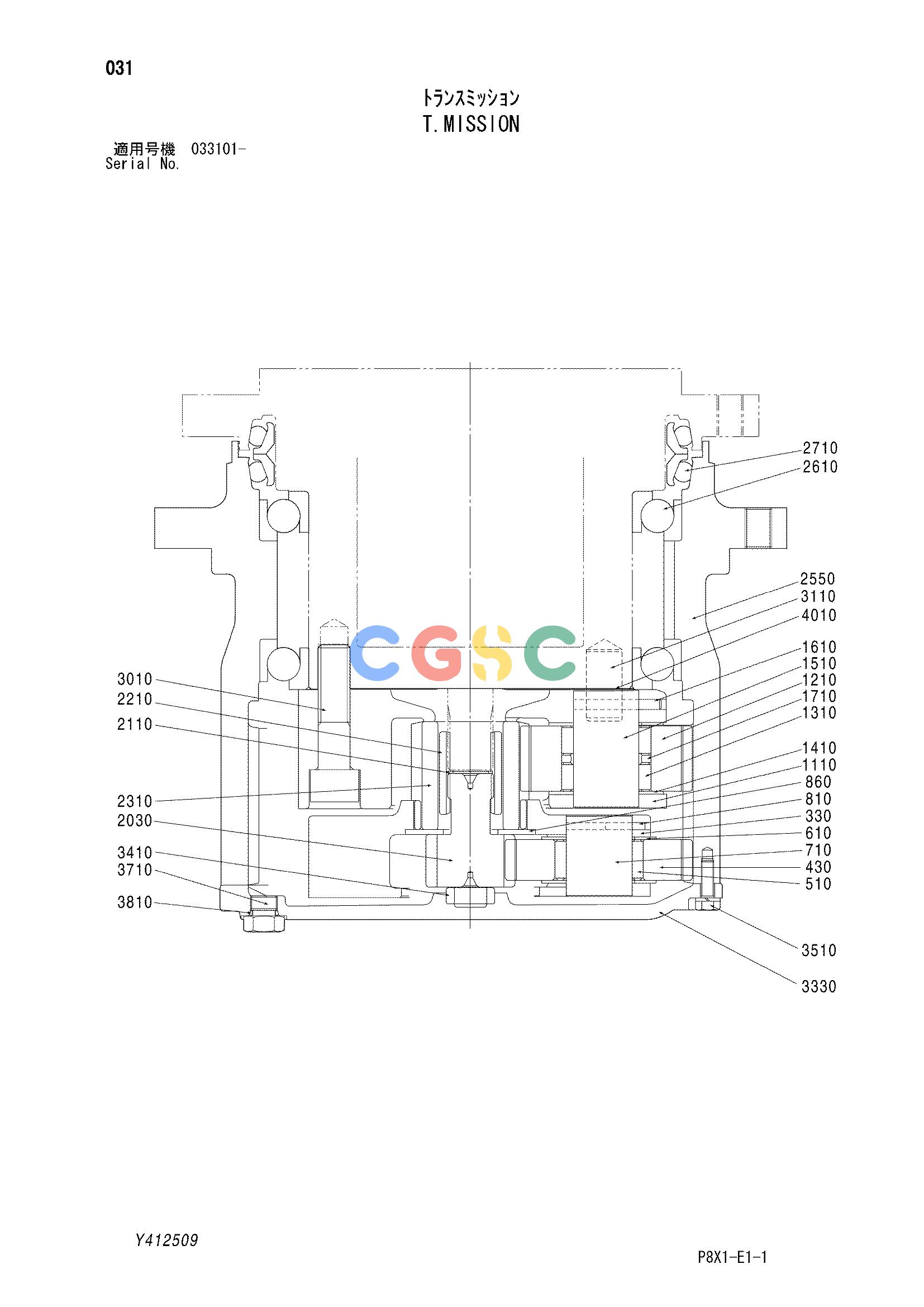

日立零件查询（CS125-3）T.MISSION Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
985 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | Y412509 | [1] | T.MISSION | |
| 330. | Y408139 | [1] | CARRIER | |
| 430. | Y408140 | [2] | GEAR;PLANETARY | |
| 510. | Y408141 | [42] | BRG.;NEEDLE | |
| 610. | Y408142 | [4] | WASHER;THRUST | |
| 710. | Y408611 | [2] | PIN | |
| 810. | Y408143 | [2] | PIN;SPRING | |
| 860. | Y408144 | [1] | WASHER;THRUST | |
| 1110. | Y408145 | [1] | CARRIER | |
| 1210. | Y408146 | [3] | GEAR;PLANETARY | |
| 1310. | Y408147 | [126] | BRG.;NEEDLE | |
| 1410. | Y408142 | [6] | WASHER;THRUST | |
| 1510. | Y408148 | [3] | PIN | |
| 1610. | Y408149 | [3] | PIN;SPRING | |
| 1710. | Y408150 | [3] | COLLAR | |
| 2030. | Y408151 | [1] | GEAR;SUN | |
| 2110. | Y408152 | [1] | RING;RETAINING | |
| 2210. | Y408153 | [1] | COUPLING | |
| 2310. | Y408154 | [1] | GEAR;SUN | |
| 2550. | Y408155 | [1] | CASE | |
| 2610. | Y408156 | [2] | BRG. | |
| 2710. | Y408157 | [1] | KIT;SEAL | |
| 3010. | Y408158 | [3] | BOLT;SOCKT | |
| 3110. | Y408159 | [3] | PIN;KNOCK | |
| 3330. | Y406823 | [1] | COVER | |
| 3410. | Y406824 | [1] | COLLAR | |
| 3510. | Y408162 | [12] | BOLT;SEMS | |
| 3710. | Y406825 | [3] | PLUG | |
| 3810. | Y408164 | [3] | O-RING | |
| 4010. | Y408165 | [1] | KIT;SHIM | |
