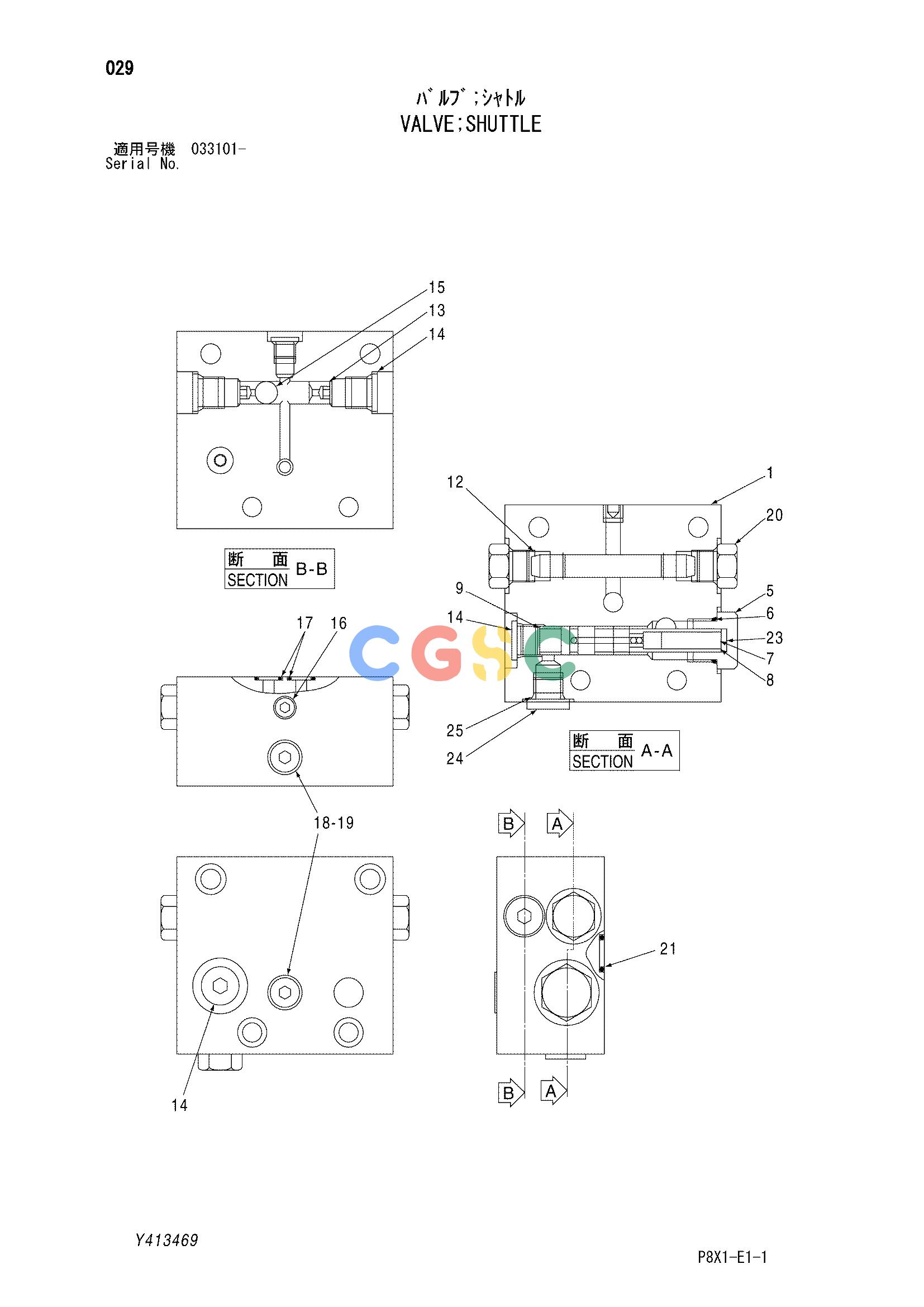

日立零件查询（CS125-3）VALVE;SHUTTLE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
329 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | Y413469 | [1] | VALVE;SHUTTLE | |
| 1. | Y408166 | [1] | HOUSING | |
| 5. | Y408170 | [1] | PLUG | |
| 6. | 0619401 | [1] | O-RING | |
| 7. | Y408171 | [1] | NEEDLE | |
| 8. | Y408172 | [1] | SPRING | |
| 9. | Y408173 | [1] | SPOOL | |
| 12. | Y413826 | [1] | SPOOL | |
| 13. | Y408176 | [2] | PLUG | |
| 14. | 4260831 | [4] | PLUG | |
| 15. | Y408177 | [1] | BALL | |
| 16. | 4260853 | [1] | PLUG | |
| 17. | Y408178 | [2] | O-RING | |
| 18. | 4260848 | [2] | PLUG | |
| 19. | Y408107 | [2] | O-RING | |
| 20. | 4260846 | [2] | PLUG | |
| 21. | Y408179 | [4] | O-RING | |
| 23. | Y408180 | [1] | SPACER | |
| 24. | Y408101 | [1] | PLUG | |
| 25. | Y408103 | [1] | O-RING | |
