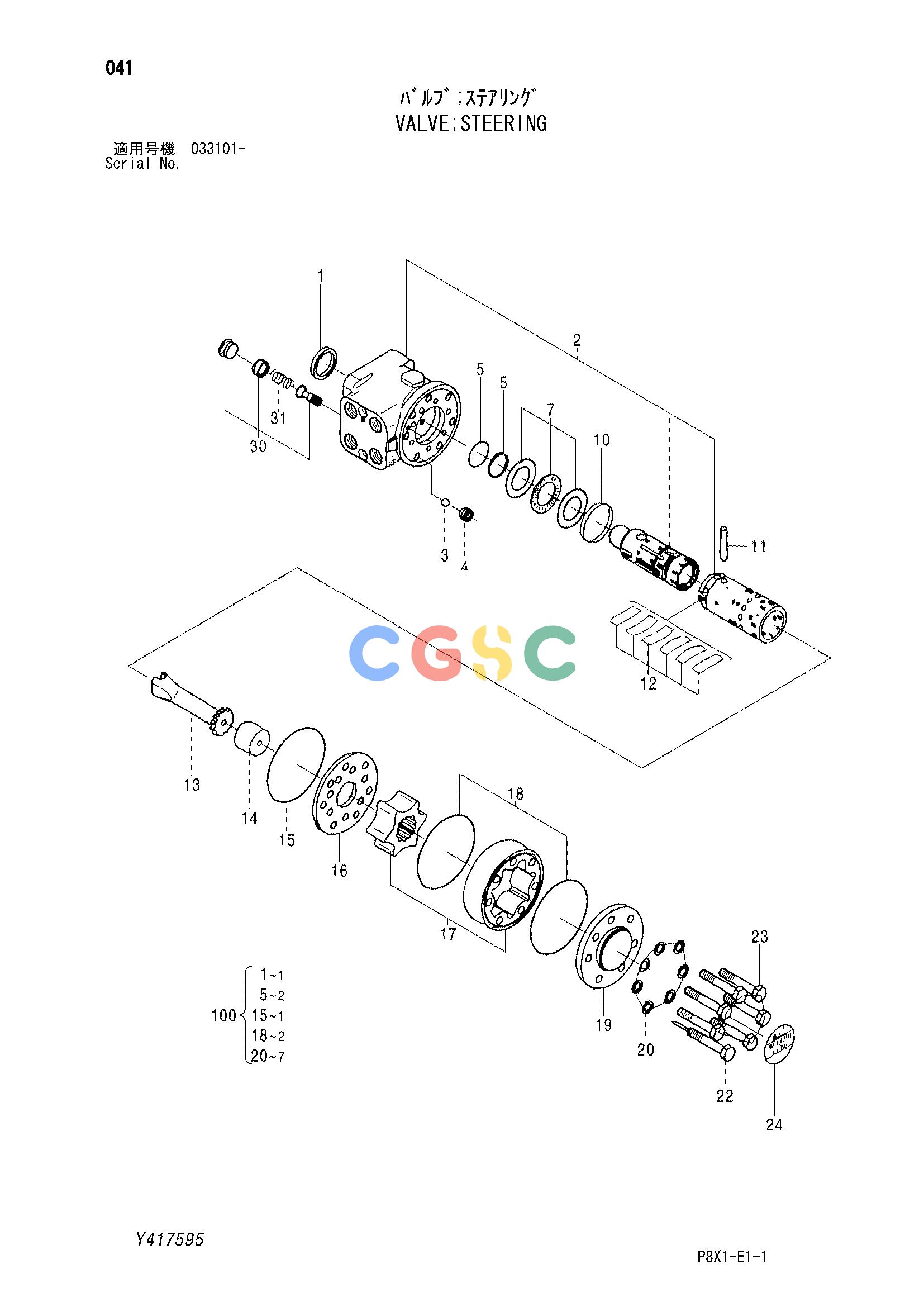

日立零件查询（CS125-3）VALVE;STEERING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
124 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | Y417595 | [1] | VALVE;STEERING | |
| 1. | +++++++ | [1] | SEAL;DUST | |
| 2. | +++++++ | [1] | HOUSING | |
| 3. | +++++++ | [1] | BALL | |
| 4. | +++++++ | [1] | BUSHING | |
| 5. | +++++++ | [2] | SEAL;SHAFT | |
| 7. | +++++++ | [3] | BEARING | |
| 10. | +++++++ | [1] | RING | |
| 11. | +++++++ | [1] | PIN | |
| 12. | +++++++ | [6] | SPRING;LEAF | |
| 13. | +++++++ | [1] | GEAR;DRIVE | |
| 14. | +++++++ | [1] | SPACER | |
| 15. | +++++++ | [1] | O-RING | |
| 16. | +++++++ | [1] | PLATE | |
| 17. | +++++++ | [1] | ROTOR | |
| 18. | +++++++ | [2] | O-RING | |
| 19. | +++++++ | [1] | COVER | |
| 20. | +++++++ | [7] | WASHER | |
| 22. | +++++++ | [1] | SCREW | |
| 23. | +++++++ | [6] | SCREW | |
| 24. | +++++++ | [1] | NAME-PLATE | |
| 30. | +++++++ | [1] | VALVE;RELIEF | |
| 31. | +++++++ | [1] | SPRING | |
| 100. | Y417808 | [1] | KIT;SEAL | |
