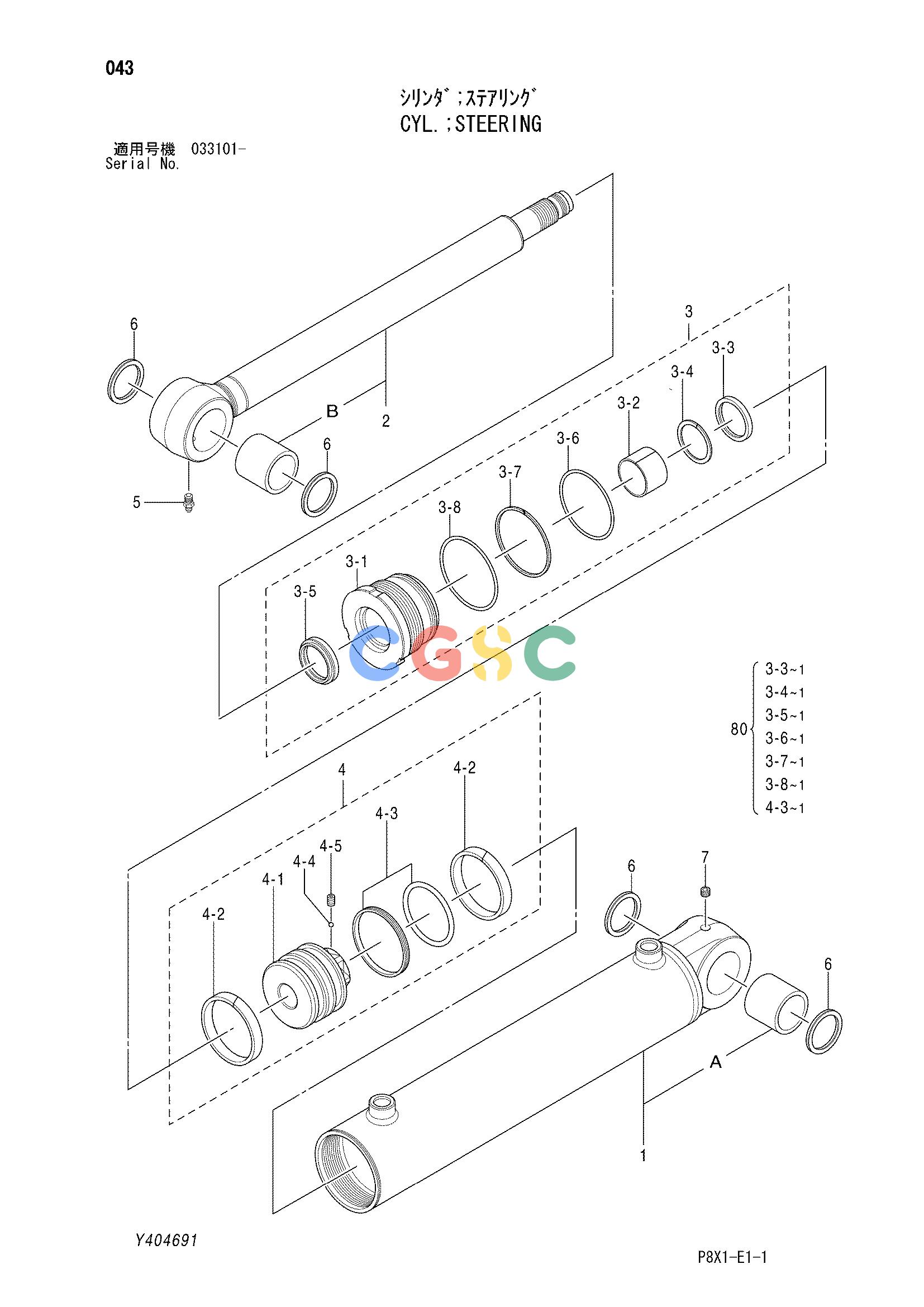

日立零件查询（CS125-3）CYL.;STEERING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
760 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | Y404691 | [1] | CYL.;STEERING | |
| 1. | Y413473 | [1] | TUBE;CYL. | |
| 1A. | 4332740 | [1] | BUSHING | |
| 2. | Y413474 | [1] | ROD;PISTON | |
| 2A. | 4332740 | [1] | BUSHING | |
| 3. | Y413475 | [1] | HEAD;CYL. | |
| 3-1. | Y413476 | [1] | HEAD;CYL. | |
| 3-2. | 0481103 | [1] | BUSHING | |
| 3-3. | 0832705 | [1] | PACKING;U-RING | |
| 3-4. | 0417908 | [1] | RING;BACK-UP | |
| 3-5. | 0832706 | [1] | RING;WIPER | |
| 3-6. | 0478907 | [1] | O-RING | |
| 3-7. | 0480904 | [1] | RING;BACK-UP | |
| 3-8. | 0478712 | [1] | O-RING | |
| 4. | Y413477 | [1] | PISTON | |
| 4-1. | Y413478 | [1] | PISTON | |
| 4-2. | 0480912 | [2] | RING;SLIDE | |
| 4-3. | 0480913 | [1] | RING;SEAL | |
| 4-4. | 0429917 | [1] | BALL;STEEL | |
| 4-5. | 0479012 | [1] | SCREW;SET | |
| 5. | 0429920 | [1] | FITTING;GREASE | |
| 6. | 0480915 | [4] | SEAL;DUST | |
| 7. | 0788403 | [1] | PLUG | |
| 80. | Y413479 | [1] | KIT;SEAL | |
