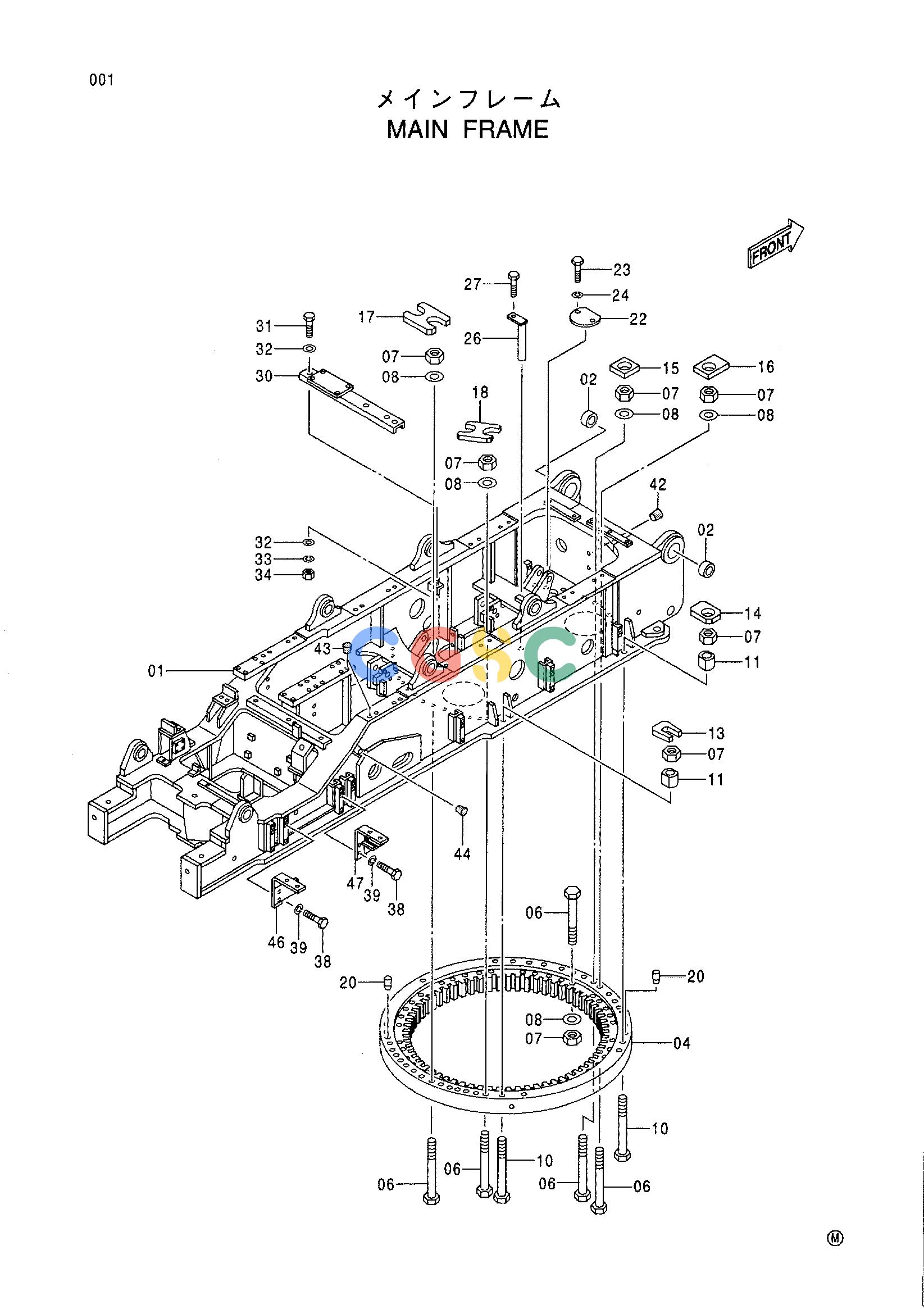

日立零件查询（CX1000）MAIN FRAME Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
408 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 5007791 | [1] | FRAME;MAIN | |
| 02. | 4373455 | [2] | BUSHING | |
| 04. | 6020135 | [1] | BRG.;SWINGCIRCL | |
| 06. | 4284383 | [65] | BOLT | |
| 07. | J953036 | [69] | NUT | |
| 08. | 4054003 | [65] | WASHER | |
| 10. | 4108181 | [4] | BOLT | |
| 11. | 4285474 | [4] | SPACER | |
| 13. | 4248089 | [2] | STOPPER | |
| 14. | 4373346 | [2] | STOPPER | |
| 15. | 4339537 | [1] | STOPPER | |
| 16. | 4408464 | [2] | STOPPER | |
| 17. | 4231511 | [5] | STOPPER | |
| 18. | 4231512 | [6] | STOPPER | |
| 20. | 4097431 | [2] | PIN | |
| 22. | 4231515 | [1] | COVER | |
| 23. | J901025 | [2] | BOLT | |
| 24. | A590910 | [2] | WASHER;SPRING | |
| 26. | 9720707 | [1] | PIN | |
| 27. | J021030 | [1] | BOLT | |
| 30. | 8069650 | [1] | BRACKET | |
| 31. | J901440 | [2] | BOLT | |
| 32. | A590114 | [4] | WASHER;PLANE | |
| 33. | A590914 | [2] | WASHER;SPRING | |
| 34. | J950014 | [2] | NUT | |
| 38. | J901640 | [4] | BOLT | |
| 39. | A590916 | [4] | WASHER;SPRING | |
| 42. | 428028 | [4] | CORK | |
| 43. | 429135 | [8] | CORK | |
| 44. | 425176 | [1] | CORK | |
| 46. | 8070391 | [1] | BRACKET | |
| 47. | 8070398 | [1] | BRACKET | |
