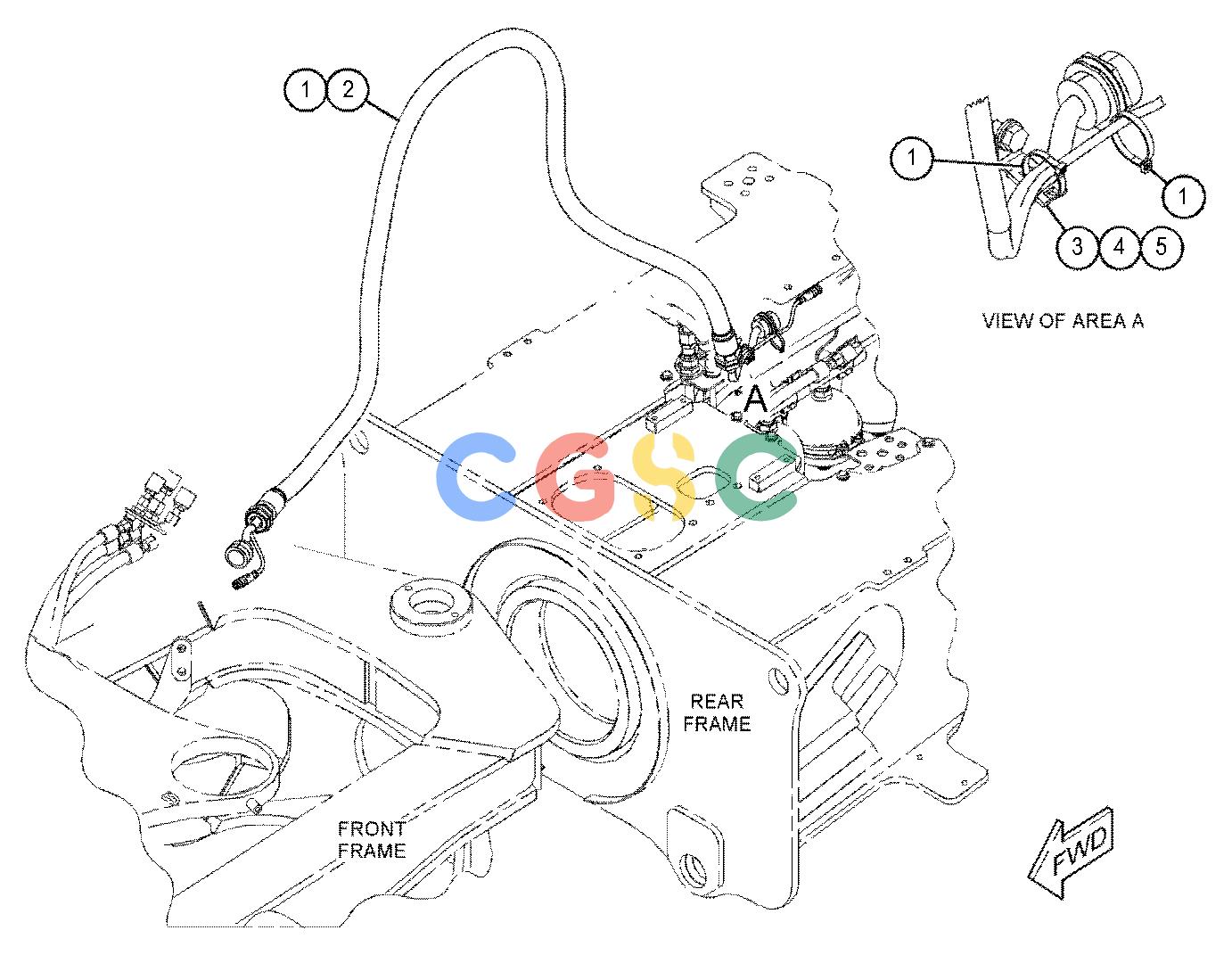

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 3S-2093 | [2] | STRAP-CABLE | |
| 2. | 545-4983Y | [1] | HARNESS AS-HITCH | |
| 3. | 4P-8134 | [1] | CLIP(LADDER) | |
| 4. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 5. | 8T-4191M | [1] | BOLT(M10X1.5X16-MM) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
广数供应链运营团队, 15 02月, 2025，浏览： 1000 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 3S-2093 | [2] | STRAP-CABLE | |
| 2. | 545-4983Y | [1] | HARNESS AS-HITCH | |
| 3. | 4P-8134 | [1] | CLIP(LADDER) | |
| 4. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 5. | 8T-4191M | [1] | BOLT(M10X1.5X16-MM) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
