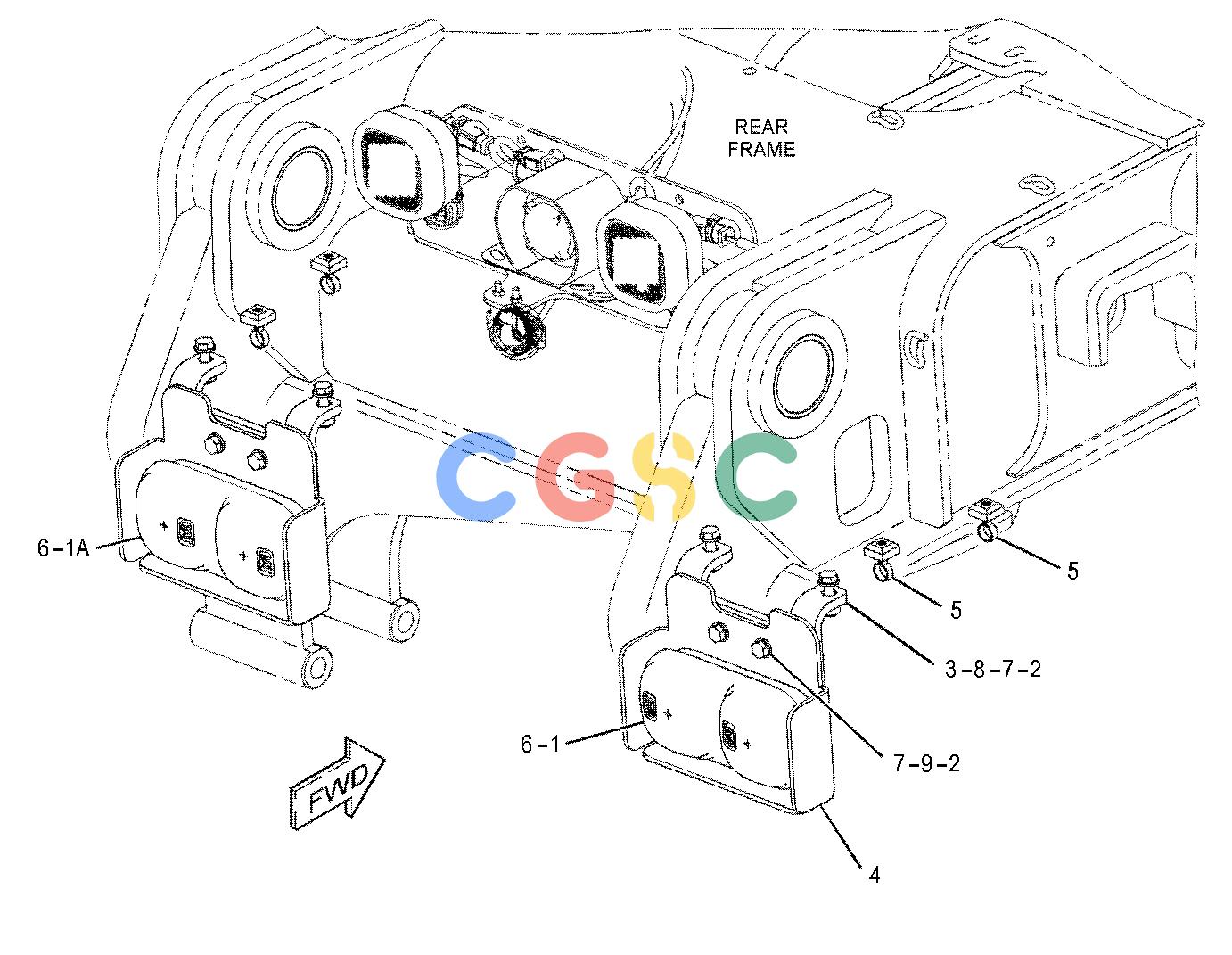

卡特零件查询（730） 423-0286: WIRING GP-LIGHTING
广数供应链运营团队, 15 02月, 2025，浏览：
112 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 444-6526 | [1] | LAMP GP-SIGNAL(24-VOLT)(REAR, LH) | |
| 1A. | 444-6526 | [1] | LAMP GP-SIGNAL(24-VOLT)(REAR, RH) | |
| | 8T-8729 | [4] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 2. | 380-8803M | [8] | NUT-INSERT(M10X1.5-THD) | |
| 3. | 390-0292 | [2] | BRACKET AS | |
| | | | (EACH INCLUDES) |
| | 7T-1099 | [1] | LINK | |
| 4. | 444-1790 | [2] | BRACKET | |
| 5. | 393-1829 | [4] | TIE-CABLE | |
| 6. | 3S-2093 | [2] | STRAP-CABLE | |
| 7. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 8. | 8T-4186M | [4] | BOLT(M10X1.5X40-MM) | |
| 9. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| | M | | METRIC PART |
