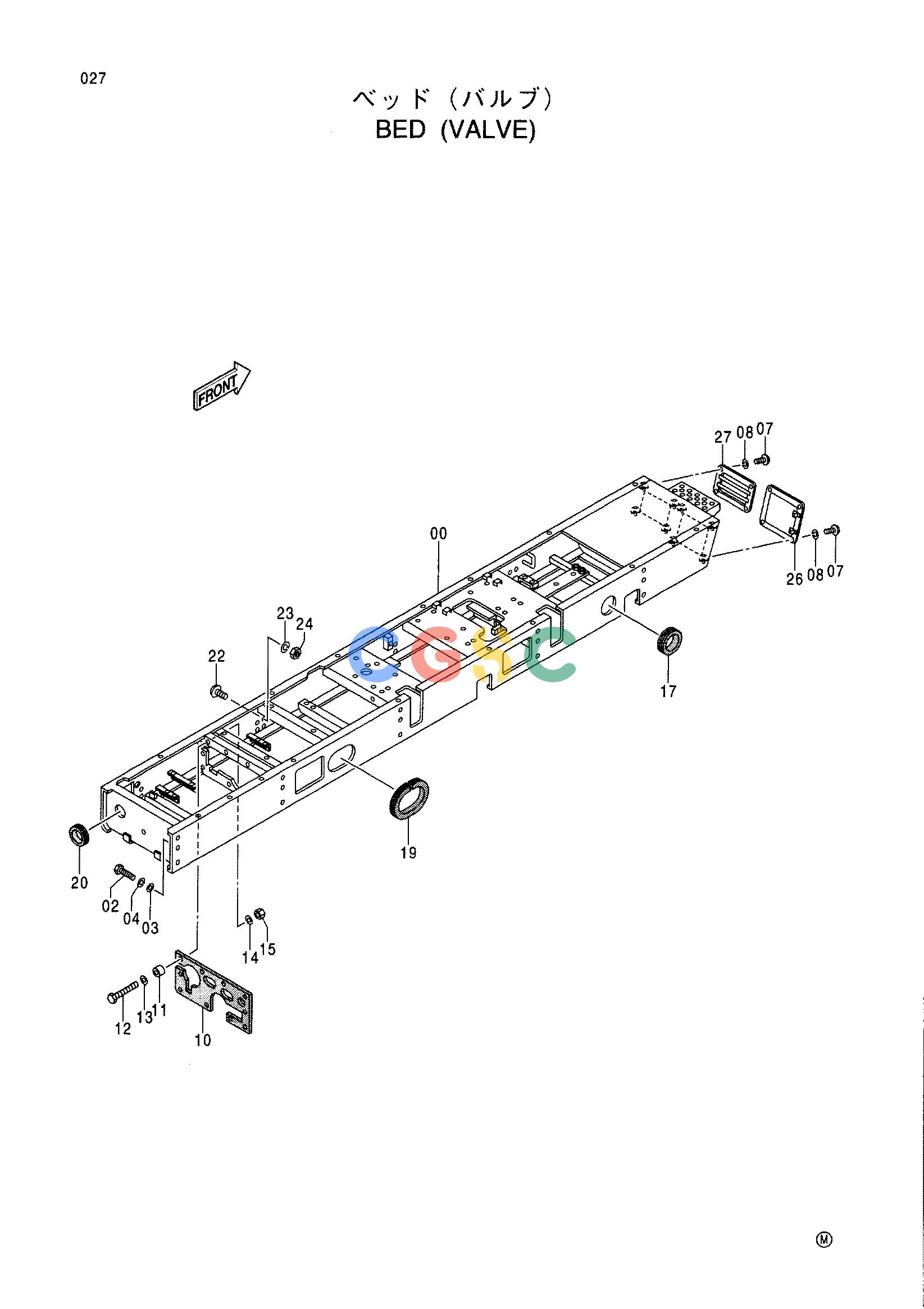

日立零件查询（CX1000）BED (VALVE) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
235 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 5007194 | [1] | BED;VALVE | |
| 02. | J901645 | [15] | BOLT | |
| 03. | A590116 | [15] | WASHER;PLANE | |
| 04. | A590916 | [15] | WASHER;SPRING | |
| 07. | 4330985 | [8] | BOLT | |
| 08. | A590910 | [8] | WASHER;SPRING | |
| 10. | 4402390 | [1] | COVER | |
| 11. | 4157127 | [10] | SPACER | |
| 12. | J901040 | [10] | BOLT | |
| 13. | J217083 | [10] | WASHER | |
| 14. | A590910 | [10] | WASHER;SPRING | |
| 15. | J950010 | [10] | NUT | |
| 17. | 4372143 | [1] | RUBBER | |
| 19. | 4386462 | [1] | RUBBER | |
| 20. | 4184582 | [1] | BUSHING;RUBBER | |
| 22. | 4389283 | [16] | BOLT | |
| 23. | A590912 | [16] | WASHER;SPRING | |
| 24. | J950012 | [16] | NUT | |
| 26. | 7040349 | [1] | COVER | |
| 27. | 8073816 | [1] | COVER | |
