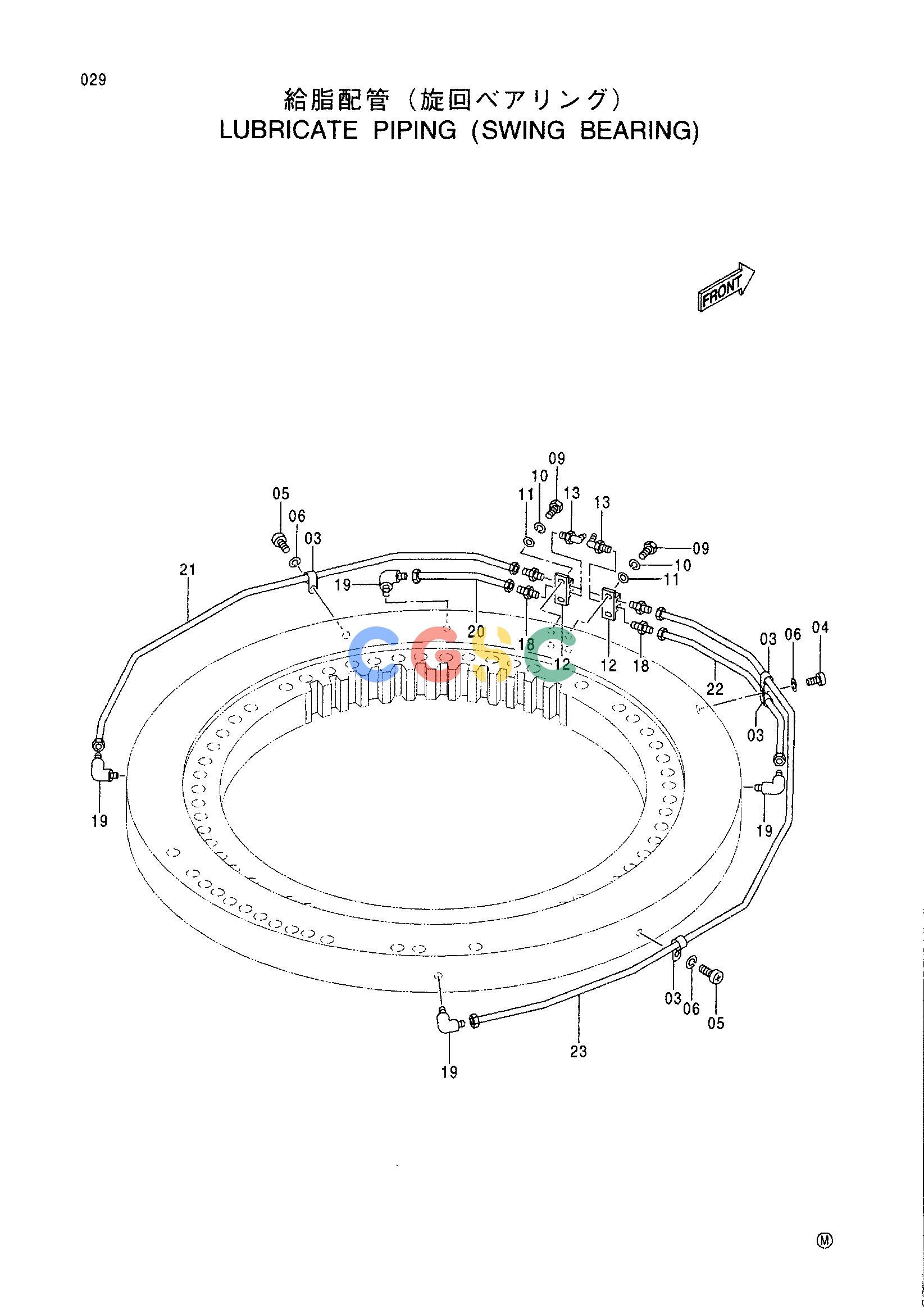

日立零件查询（CX1000）LUBRICATE PIPING (SWING BEARING) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
915 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 03. | 4000854 | [4] | CLIP;PIPE | |
| 04. | M430613 | [1] | SCREW | |
| 05. | M430610 | [2] | SCREW | |
| 06. | A590906 | [3] | WASHER;SPRING | |
| 09. | J900616 | [4] | BOLT | |
| 10. | A590906 | [4] | WASHER;SPRING | |
| 11. | A590106 | [4] | WASHER;PLANE | |
| 12. | 4169672 | [2] | BLOCK | |
| 13. | J75581 | [4] | FITTING;GREASE | |
| 18. | 4130168 | [4] | FITTING;PIPE | |
| 19. | 4130174 | [4] | FITTING;PIPE | |
| 20. | 4455877 | [1] | PIPE | |
| 21. | 3092280 | [1] | PIPE | |
| 22. | 3092278 | [1] | PIPE | |
| 23. | 3092279 | [1] | PIPE | |
