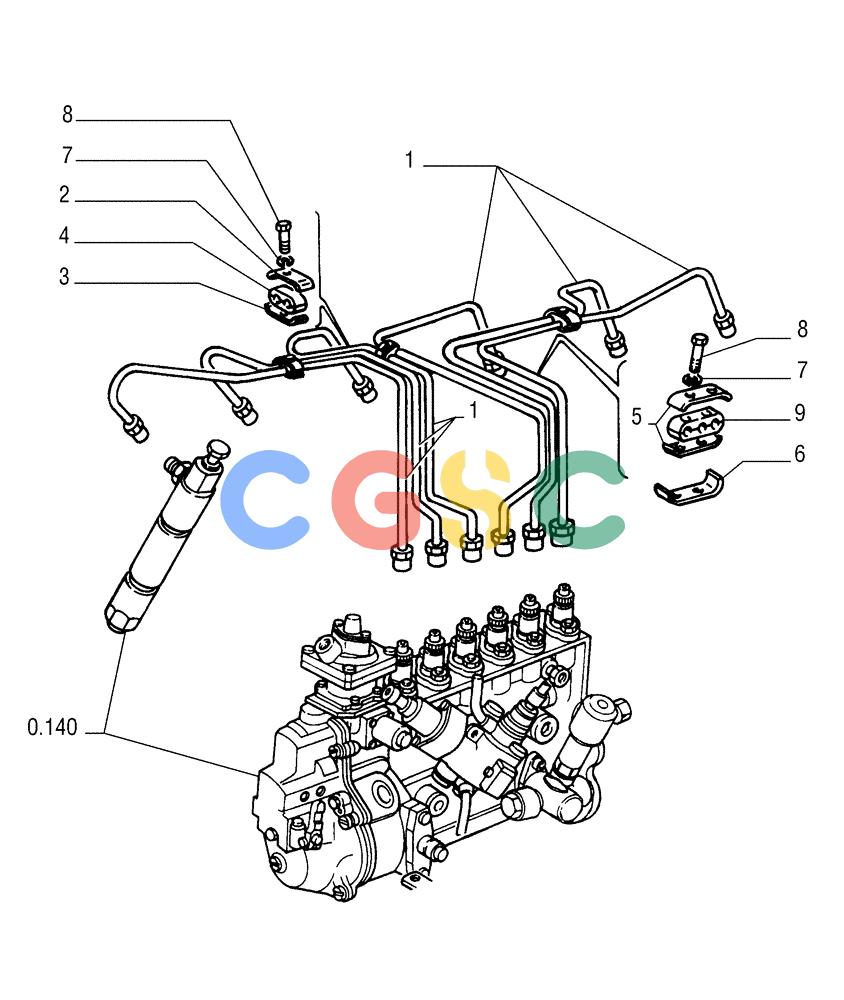

纽荷兰零件查询(FD255) - CRAWLER DOZER (N.A. VERSION) (7/95-) (0.202[1A]) - PIPING - INJECTION PUMP New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
291 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 61320228 | [1] | HOSE KIT | LEC, Start Serial: D3747 |
| 2. | 4641873 | [6] | CLAMP | MOD, Start Serial: D3747 |
| 3. | 4641874 | [6] | CLAMP | MOD, Start Serial: D3747 |
| 4. | 61585735 | [6] | CLAMP | LEC, Start Serial: D3747 |
| 5. | 4641876 | [5] | CLAMP | MOD, Start Serial: D3747 |
| 6. | 4641875 | [1] | CLAMP | MOD, Start Serial: D3747 |
| 7. | 10571474 | [12] | LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC | TTF, Start Serial: D3747 Superseded by part number: 10569179 |
| 8. | 10978024 | [12] | BOLT,Hex, M5 x 20mm, Cl 8.8, Full Thd | IMO, Start Serial: D3747 Superseded by part number: |
| 9. | 4543282 | [3] | STOP PLUG | MOD, Start Serial: D3747 |
