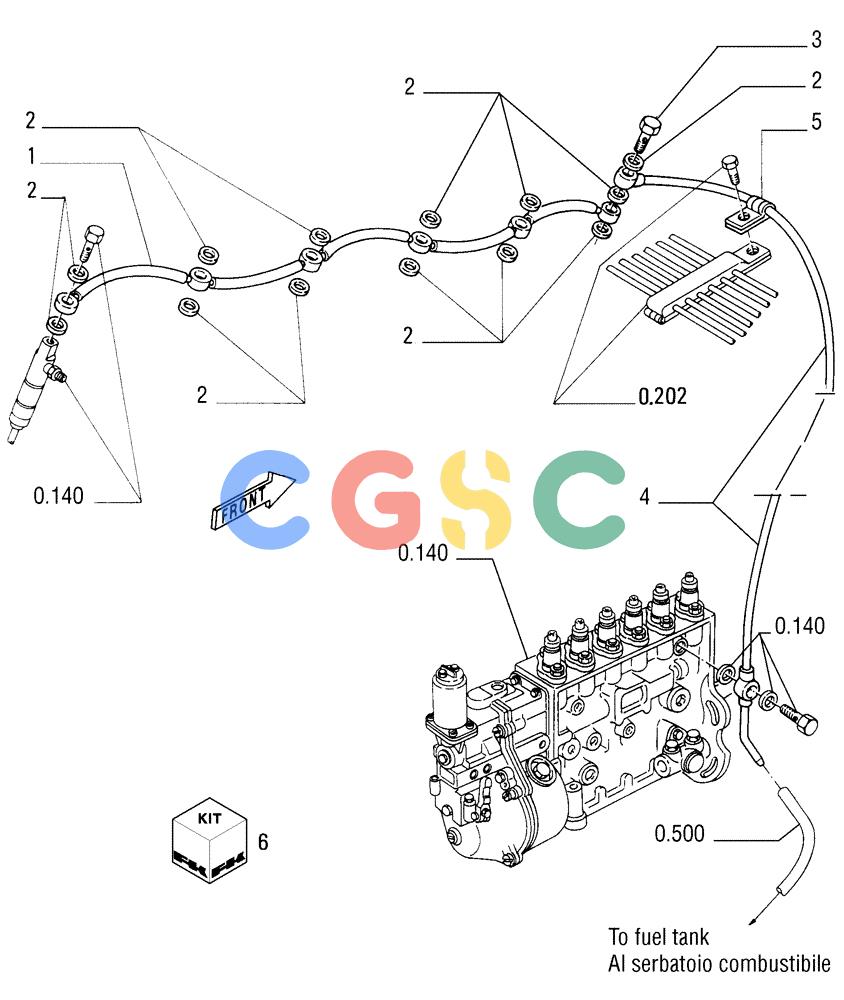

纽荷兰零件查询(FD255) - CRAWLER DOZER (N.A. VERSION) (7/95-) (0.203[01]) - PIPING - FUEL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
941 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 61320068 | [1] | FLEXIBLE HOSE | LECRETURN TO INJECTORS, Serial Range: -C3747 |
| 2. | 2852057 | [13] | SEALING WASHER,M8 x 12 x 1 Thk | TOR8X12 |
| 3. | 1216492 | [1] | SCREW | LEC8X1 Superseded by part number: |
| 4. | 61319599 | [1] | RIGID TUBE | LECRETURN INJECTORS TO INJ. PUMP, Serial Range: -C3747 |
| 5. | 17314590 | [1] | COLLAR | LEC |
| 6. | 1940142 | [1] | ENGINE GASKET KIT | LEC |
| 6. | LEC1940141 | [1] | ENGINE TOP GASKETS KIT | LEC |
