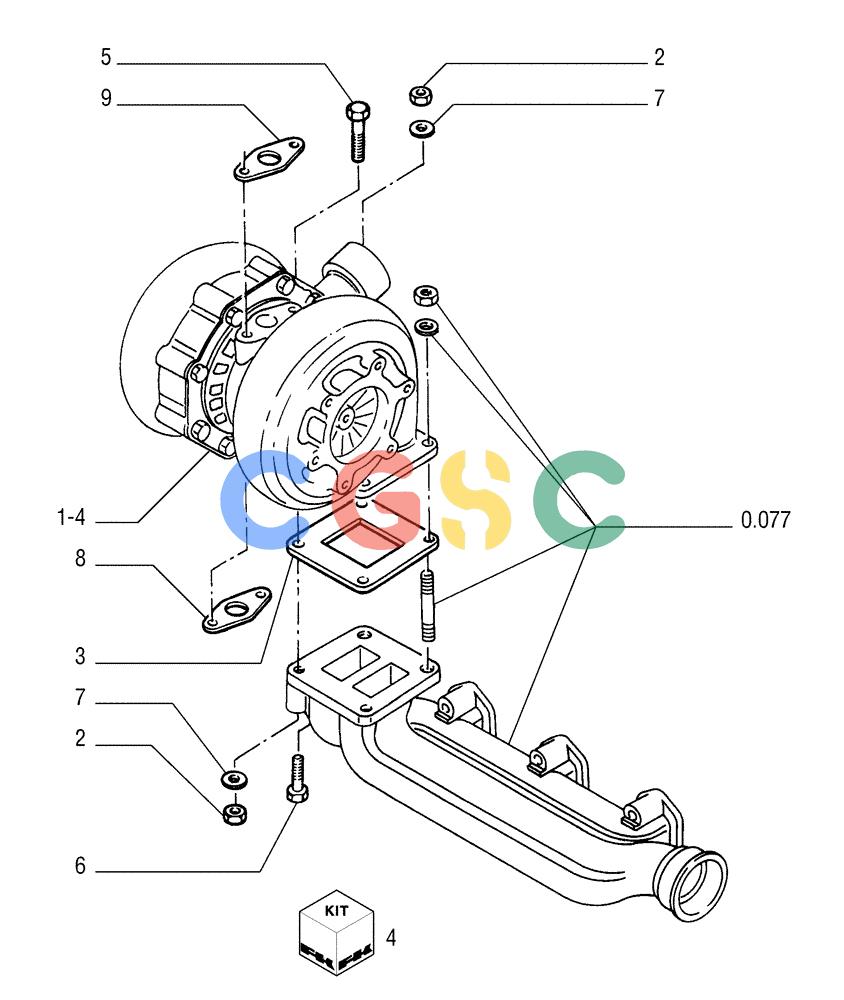

纽荷兰零件查询(FD255) - CRAWLER DOZER (N.A. VERSION) (7/95-) (0.240[01]) - TURBOCHARGER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
215 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 61315684 | [1] | TURBOCHARGER | LEC(Holset) Superseded by part number: 61315685 |
| 2. | 13680121 | [2] | NUT | LEC10X1,25 |
| 3. | 61317796 | [1] | GASKET | LEC |
| 4. | 61317798 | [1] | REPAIR KIT | LEC |
| 5. | 98492238 | [1] | BOLT,Flng, M10 x 1.25 x 70mm | MOD10X1,25X70 |
| 6. | 61320829 | [1] | SCREW | LEC10X1,25X40 |
| 7. | 14499521 | [2] | WASHER,10.5mm ID x 18mm OD x 2mm Thk | TTF10X18 |
| 8. | 61318303 | [1] | GASKET | TOR, Start Serial: D3747 |
| 9. | 98412509 | [1] | GASKET,0.8mm Thk | TOR, Start Serial: D3747 |
