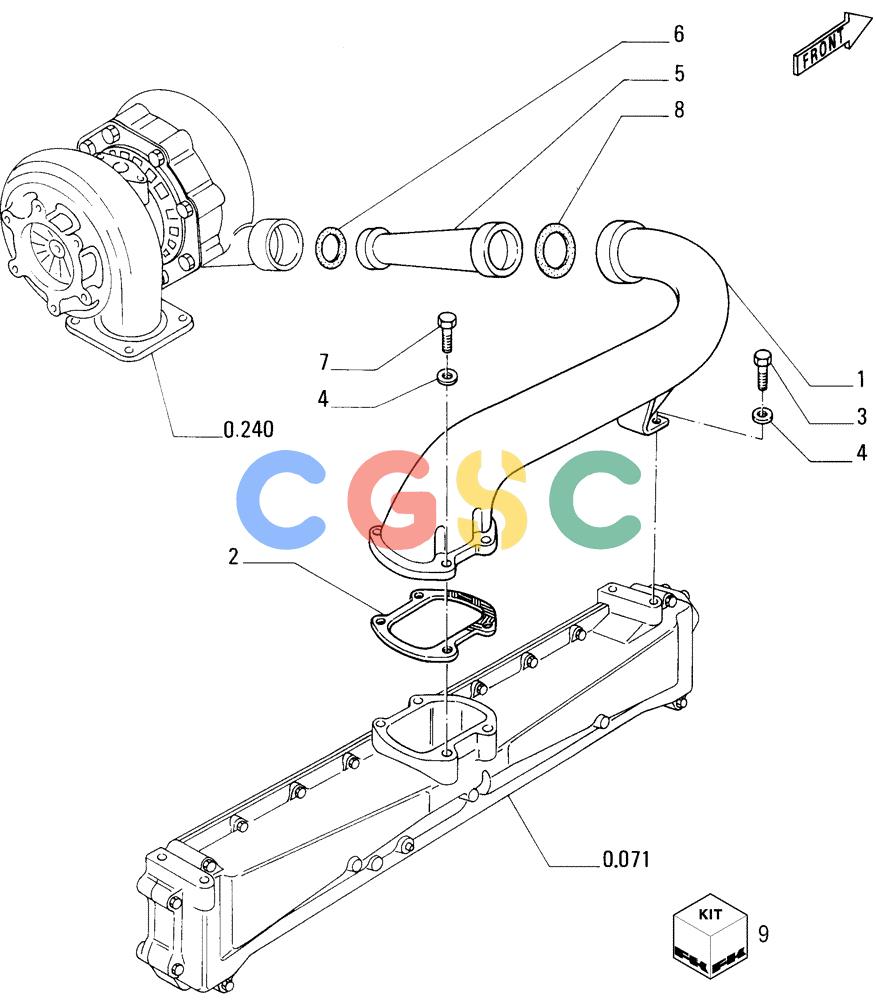

纽荷兰零件查询(FD255) - CRAWLER DOZER (N.A. VERSION) (7/95-) (0.241[01]) - PIPING - TURBOCHARGER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
926 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 61318971 | [1] | ELBOW | LEC- DELIVERY |
| 2. | 61318569 | [1] | GASKET | LEC |
| 3. | 16043824 | [4] | SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd | TTF |
| 4. | 11193874 | [6] | BELLEVILLE WASHER,8.4mm ID x 16.00mm OD x 1.4mm, 1.85mm, Cl 8.8 | TTF |
| 5. | 61315696 | [1] | SLEEVE | LEC |
| 6. | 14471581 | [1] | O-RING,-332, Cl 7, 2.35" ID x .210" Thk | TOR5,33X59,69 Superseded by part number: 17296181 |
| 7. | 16043724 | [2] | BOLT,Hex, M8 x 1.25 x 28mm, Cl 8.8, Full Thd | JES Superseded by part number: 16043731 |
| 8. | 14472081 | [1] | O-RING,73.56mm ID x 3.395" OD x 5.33mm | LEC5,33X75,56 Superseded by part number: 17296681 |
| 9. | 1940142 | [1] | ENGINE GASKET KIT | LEC |
| 9. | LEC1940141 | [1] | ENGINE TOP GASKETS KIT | LEC |
