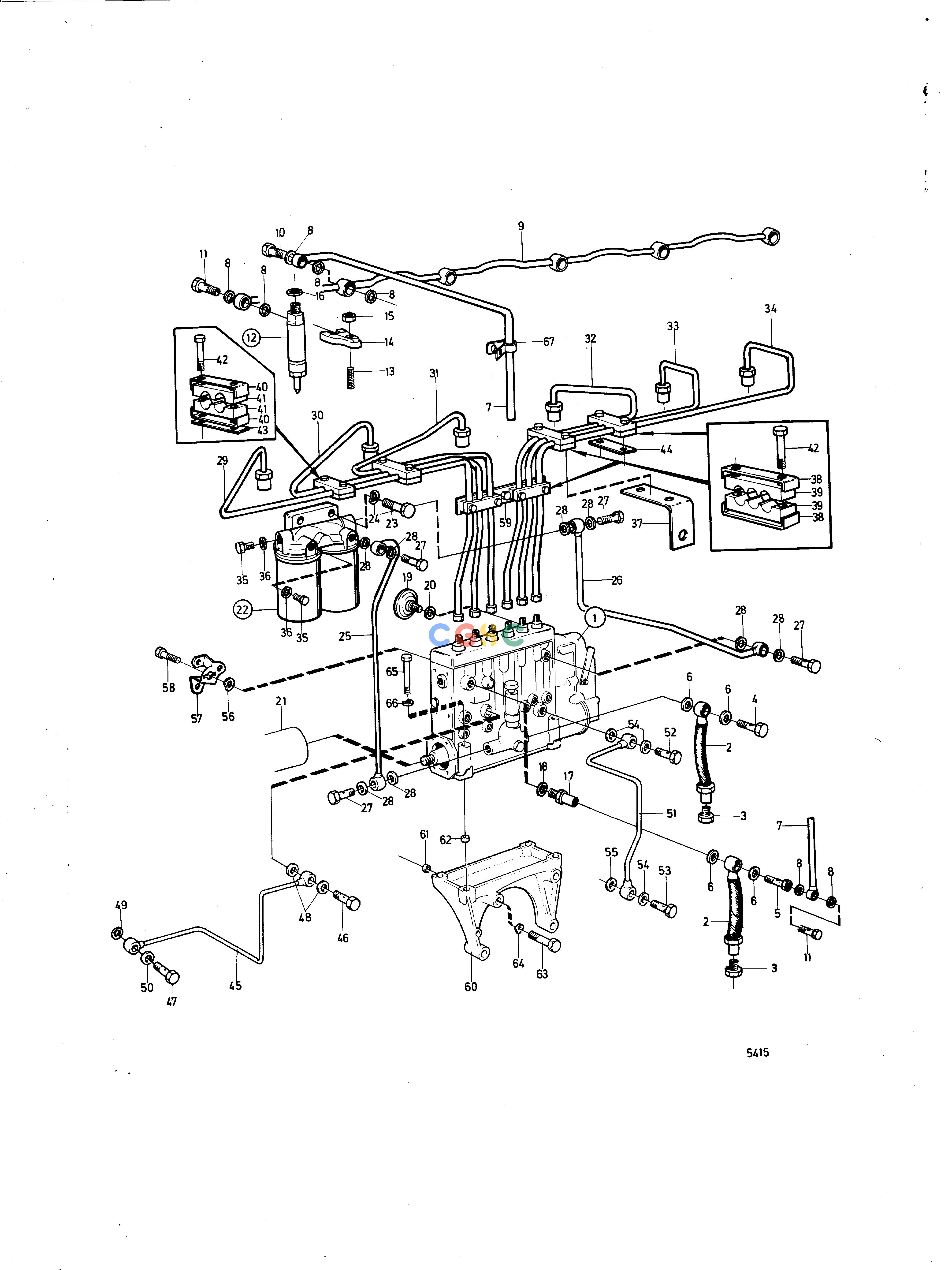

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCFuel SystemFuel SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
935 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
845369
|
[1] |
Fuel pump
|
|
| 2. |
3830312
|
[2] |
Hose
|
(837364)
|
| 3. |
22753
|
[2] |
Nipple
|
|
| 4. |
25167
|
[1] |
Hollow screw
|
|
| 5. |
16496
|
[1] |
Hollow screw
|
|
| 6. |
957178
|
[4] |
Gasket
|
|
| 7. |
844543
|
[1] |
Leak-off line
|
|
| 8. |
946729
|
[15] |
Gasket
|
|
| 9. |
822564
|
[1] |
Leak-off line
|
|
| 10. |
966834
|
[1] |
Hollow screw
|
(74034)
|
| 11. |
74033
|
[6] |
Hollow screw
|
MO80263/XXXXX-89183/XXXXX.
|
| 12. |
468748
|
[6] |
Injector
|
|
| 12. |
3803245
|
[6] |
Injector
|
|
| 13. |
470560
|
[6] |
Stud
|
|
| 14. |
469797
|
[6] |
Yoke
|
(468921)
|
| 15. |
961992
|
[6] |
Hexagon nut
|
|
| 16. |
948965
|
[6] |
Sealing ring
|
|
| 17. |
35096
|
[1] |
Overflow valve
|
|
| 18. |
18671
|
[1] |
Gasket
|
|
| 19. |
466398
|
[1] |
Pressure equalizer
|
|
| 20. |
18671
|
[1] |
Gasket
|
|
| 21. |
7742190_035
|
|
fuel injection pump
|
|
| 21. |
|
|
|
|
| 22. |
241672
|
[1] |
Filter housing
|
Replaced by 77989.
|
| 22. |
471172
|
[1] |
Filter housing
|
|
| 23. |
940162
|
[2] |
Hexagon screw
|
|
| 24. |
942336
|
[2] |
Spring washer
|
|
| 25. |
845437
|
[1] |
Fuel pipe
|
|
| 26. |
822591
|
[1] |
Fuel pipe
|
|
| 27. |
25167
|
[4] |
Hollow screw
|
|
| 28. |
957178
|
[8] |
Gasket
|
|
| 29. |
844551
|
[1] |
Delivery pipe
|
Replaced by delivery pipe kit 3875228
|
| 30. |
844552
|
[1] |
Delivery pipe
|
Replaced by delivery pipe kit 3875228
|
| 31. |
844553
|
[1] |
Delivery pipe
|
Replaced by delivery pipe kit 3875228
|
| 32. |
844554
|
[1] |
Delivery pipe
|
Replaced by delivery pipe kit 3875228
|
| 33. |
844555
|
[1] |
Delivery pipe
|
Replaced by delivery pipe kit 3875228
|
| 34. |
844556
|
[1] |
Delivery pipe
|
Replaced by delivery pipe kit 3875228
|
| 35. |
960630
|
[3] |
Plug
|
|
| 36. |
957178
|
[3] |
Gasket
|
|
| 37. |
844659
|
[2] |
Attaching plate
|
See group 2B
|
| 38. |
414346
|
[10] |
Attaching clamp
|
|
| 39. |
414347
|
[10] |
Attaching clamp
|
|
| 40. |
414344
|
[2] |
Attaching clamp
|
|
| 41. |
414345
|
[2] |
Attaching clamp
|
|
| 42. |
969408
|
[12] |
Six point socket scr
|
(955247)
|
| 43. |
414736
|
[1] |
Nut plate
|
|
| 44. |
414735
|
[1] |
Nut plate
|
|
| 45. |
423393
|
[1] |
Feed line
|
|
| 46. |
48634
|
[1] |
Hollow screw
|
|
| 47. |
837709
|
[1] |
Hollow screw
|
See group 2B
|
| 48. |
957173
|
[2] |
Gasket
|
|
| 49. |
18666
|
[1] |
Gasket
|
|
| 50. |
11994
|
[1] |
Gasket
|
|
| 51. |
422246
|
[1] |
Return pipe
|
|
| 52. |
25167
|
[1] |
Hollow screw
|
|
| 53. |
954394
|
[1] |
Hollow screw
|
|
| 54. |
18671
|
[3] |
Gasket
|
|
| 55. |
11998
|
[1] |
Gasket
|
|
| 56. |
941906
|
[1] |
Spring washer
|
See group 2D
|
| 57. |
848677
|
[1] |
Intermediate lever
|
See group 2D
|
| 58. |
468848
|
[1] |
Screw
|
See group 2D
|
| 59. |
822546
|
[1] |
Bracket
|
See group 2B
|
| 60. |
468558
|
[1] |
Bracket
|
|
| 61. |
423161
|
[2] |
Guide sleeve
|
|
| 62. |
417588
|
[1] |
Guide sleeve
|
|
| 63. |
955566
|
[4] |
Hexagon screw
|
|
| 64. |
940280
|
[4] |
Spring washer
|
|
| 65. |
940156
|
[4] |
Hexagon screw
|
|
| 66. |
190509
|
[4] |
Washer
|
|
| 67. |
947191
|
[1] |
Clamp
|
|
