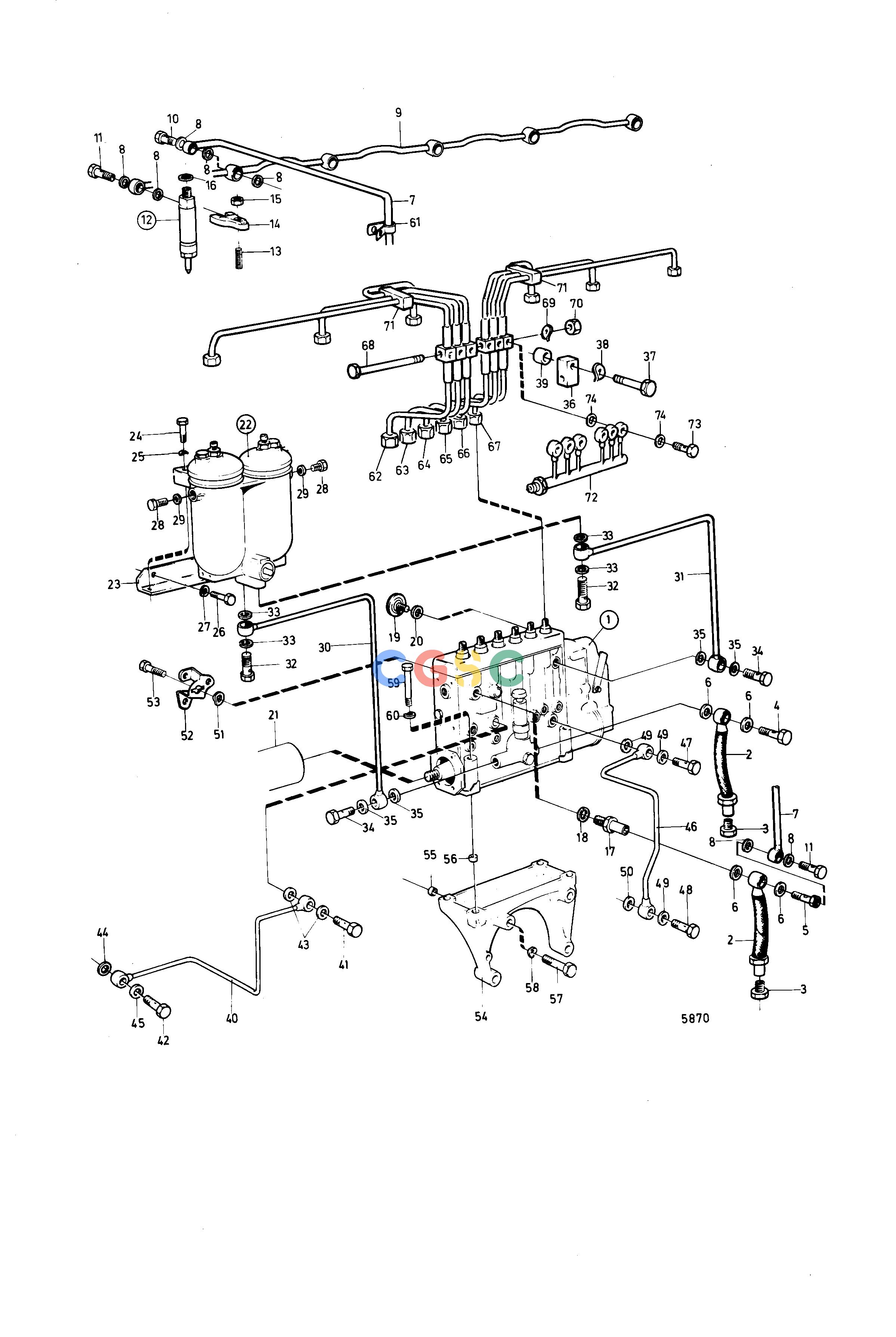

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCFuel SystemFuel System for Cl. Engine and with PONT-%A2- Mousson Twin Rev. GearEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
818 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
845369
|
[1] |
Fuel pump
|
|
| 2. |
845372
|
[2] |
Fuel hose
|
(837364)
|
| 3. |
22753
|
[2] |
Nipple
|
|
| 4. |
25167
|
[1] |
Hollow screw
|
|
| 5. |
16496
|
[1] |
Hollow screw
|
|
| 6. |
957178
|
[4] |
Gasket
|
|
| 7. |
844543
|
[1] |
Leak-off line
|
|
| 8. |
946729
|
[15] |
Gasket
|
|
| 9. |
822564
|
[1] |
Leak-off line
|
|
| 10. |
74034
|
[1] |
Hollow screw
|
|
| 11. |
74033
|
[6] |
Hollow screw
|
MO80263/XXXXX-89183/XXXXX.
|
| 12. |
468748
|
[6] |
Injector
|
|
| 12. |
3803245
|
[6] |
Injector
|
|
| 13. |
468749
|
[6] |
Cylinder head
|
|
| 14. |
469797
|
[6] |
Yoke
|
(468921)
|
| 15. |
961992
|
[6] |
Hexagon nut
|
|
| 16. |
948965
|
[6] |
Sealing ring
|
|
| 17. |
35096
|
[1] |
Overflow valve
|
|
| 18. |
18671
|
[1] |
Gasket
|
|
| 19. |
466398
|
[1] |
Pressure equalizer
|
|
| 20. |
18671
|
[1] |
Gasket
|
|
| 21. |
7742190_035
|
|
fuel injection pump
|
|
| 21. |
|
|
|
|
| 22. |
243405
|
[1] |
Fuel filter kit
|
|
| 23. |
845319
|
[1] |
Bracket
|
|
| 24. |
940134
|
[2] |
Hexagon screw
|
|
| 25. |
941909
|
[2] |
Spring washer
|
|
| 26. |
940115
|
[2] |
Hexagon screw
|
|
| 27. |
942336
|
[2] |
Spring washer
|
|
| 28. |
960630
|
[2] |
Plug
|
|
| 29. |
957178
|
[2] |
Gasket
|
|
| 30. |
845445
|
[1] |
Fuel pipe
|
|
| 31. |
836749
|
[1] |
Fuel pipe
|
|
| 32. |
26013
|
[2] |
Hollow screw
|
|
| 33. |
947624
|
[4] |
Gasket
|
|
| 34. |
25167
|
[2] |
Hollow screw
|
|
| 35. |
957178
|
[4] |
Gasket
|
|
| 36. |
846119
|
[1] |
Spacer
|
|
| 37. |
959800
|
[1] |
Hexagon screw
|
|
| 38. |
942336
|
[1] |
Spring washer
|
|
| 39. |
821540
|
[1] |
Spacer sleeve
|
|
| 40. |
423393
|
[1] |
Feed line
|
|
| 41. |
48634
|
[1] |
Hollow screw
|
|
| 42. |
837709
|
[1] |
Hollow screw
|
See group 2B
|
| 43. |
957173
|
[2] |
Gasket
|
|
| 44. |
18666
|
[1] |
Gasket
|
|
| 45. |
11994
|
[1] |
Gasket
|
|
| 46. |
422246
|
[1] |
Return pipe
|
|
| 47. |
25167
|
[1] |
Hollow screw
|
|
| 48. |
954394
|
[1] |
Hollow screw
|
|
| 49. |
18671
|
[3] |
Gasket
|
|
| 50. |
11998
|
[1] |
Gasket
|
|
| 51. |
941906
|
[1] |
Spring washer
|
See group 2D
|
| 52. |
821134
|
[1] |
Lever
|
See group 2D
|
| 53. |
468848
|
[1] |
Screw
|
See group 2D
|
| 54. |
468558
|
[1] |
Bracket
|
|
| 55. |
423161
|
[2] |
Guide sleeve
|
|
| 56. |
417588
|
[1] |
Guide sleeve
|
|
| 57. |
955566
|
[4] |
Hexagon screw
|
|
| 58. |
940280
|
[4] |
Spring washer
|
|
| 59. |
940156
|
[4] |
Hexagon screw
|
|
| 60. |
190509
|
[4] |
Washer
|
|
| 61. |
947191
|
[1] |
Clamp
|
|
| 62. |
846134
|
[1] |
Delivery pipe
|
Engine with control motor type crouzet., Cyl. no. 1
|
| 63. |
846133
|
[1] |
Delivery pipe
|
Engine with control motor type crouzet., Cyl. no. 2
|
| 64. |
846132
|
[1] |
Delivery pipe
|
Engine with control motor type crouzet., Cyl. no. 3
|
| 65. |
846131
|
[1] |
Delivery pipe
|
Engine with control motor type crouzet., Cyl. no. 4
|
| 66. |
846130
|
[1] |
Delivery pipe
|
Engine with control motor type crouzet., Cyl. no. 5
|
| 67. |
846129
|
[1] |
Delivery pipe
|
Engine with control motor type crouzet., Cyl. no. 6
|
| 68. |
955288
|
[1] |
Hexagon screw
|
|
| 69. |
941906
|
[1] |
Spring washer
|
|
| 70. |
955781
|
[1] |
Hexagon nut
|
|
| 71. |
846120
|
[2] |
Clamp
|
|
| 72. |
846121
|
[1] |
Leak-off line
|
|
| 73. |
846183
|
[6] |
Hollow screw
|
|
| 74. |
845953
|
[12] |
Gasket
|
|
